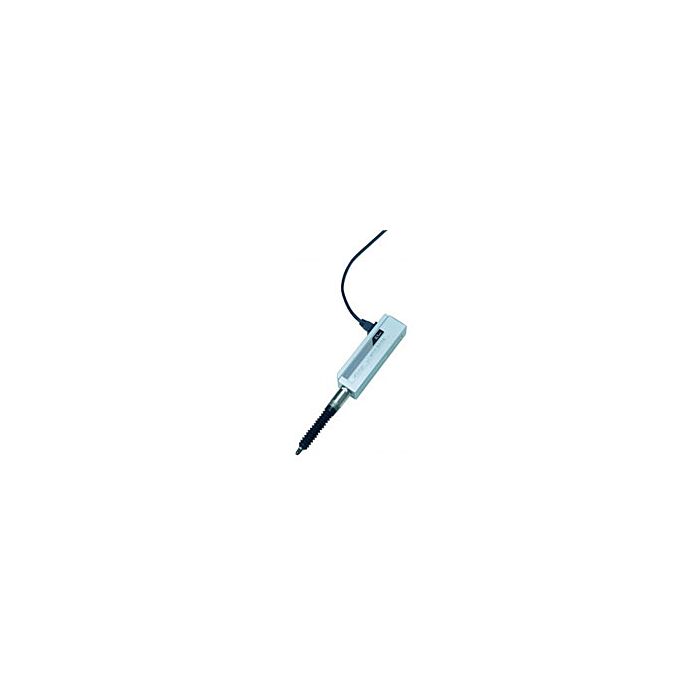

Mitutoyo 542-162
Linear Gage LGF, 50mm Range 0.001mm Res., 25mm Range
Order #: 542-162
Mfg #: 542-162
$892.00
Mitutoyo 542-162
Linear Gage LGF, 50mm Range 0.001mm Res., 25mm Range
Order #: 542-162
Mfg #: 542-162
$892.00
Availability: Ships in 3-4 weeks
Product Highlights
- Measuring Range 1in 25mm
- Resolution 0.001mm
- Measuring accuracy (20°C) L=arbitrary measuring length (mm) (1.5+L/50)
- Quantizing error ±1 count
- Measuring Force-Contact Point upwards-4.0N or less horizontal-4.3N or less downwards 4.6N or lessN
- Position detection method Photoelectric linear encoder
- Response speed*1 1500mm/s
- Output 90° phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 1000ns for 5µm model, 500ns for 1µm model, 250ns for 0.5µm model
- Output square wave pitch 4µm
- Mass 300g
- Dust/water resistance Equivalent to IP66 (only gage head)
- Contact point ø3mm carbide-tipped (fixing screw: M2.5 (P=0.45)×5), standard contact point No.901312
- Stem Dia ø15mm
- Bearing type Linear ball bearing
- Output cable length 2m (directly from casing)
- Connector Plug: RM12BPE-6PH (HIROSE), Compatible receptacle: RM12BRD-6S (HIROSE)
- Operating temperature (humidity) range 0 to 40°C (RH 20 to 80%, no condensation)
- Storage temperature (humidity) range –10 to 60°C (RH 20 to 80%, no condensation)
