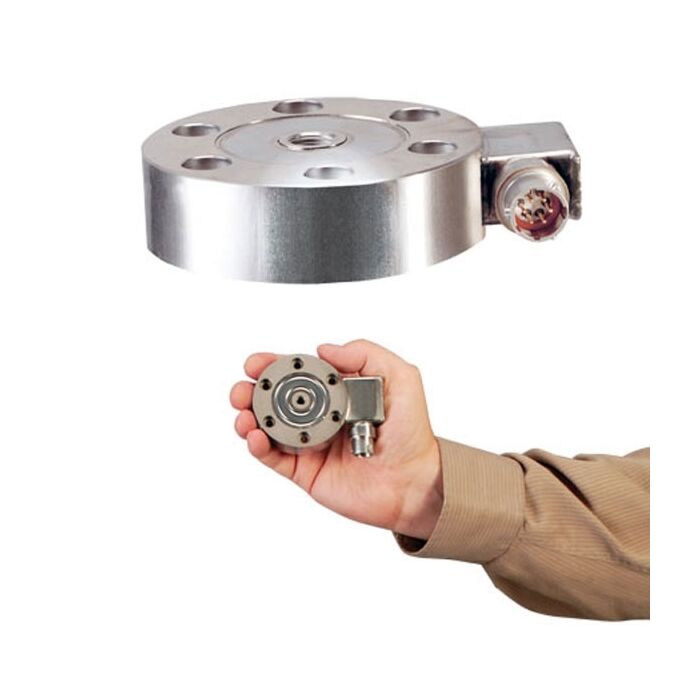

Newport Electronics LCHD-2K

Low Profile"Pancake Style"Load Cell,2K lb.Capacity

Order #: LCHD-2K

Mfg #: LCHD-2K

$1,236.16

Availability: Call for availability

2,000 lb capacity load cell
5 Point NIST Traceable Calibration, Certificate Supplied
0.25% Interchangeability for Scale Applications
All Stainless Steel Construction
Rugged Heavy Duty Design
High Accuracy
Low Profile For Easy Installation
Compatible Meters: DP41-S, DP25-S, LDP63000-S
Excitation: 10 Vdc (15 V max)
Output (FSO): ≤25 lb/10 kgf: 2 mV/V ±0.25% ≥50 lb/20 kgf: 3 mV/V ±0.25%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ≤25 lb/10 kgf: ±0.20% FSO ≥50 lb/20 kgf: ±0.10% FSO
Hysteresis: ≤25 lb/10 kgf: ±0.10% FSO ≥50 lb/20 kgf: ±0.08% FSO
Repeatability: ≤25 lb/10 kgf: ±0.1% FSO ≥50 lb/20 kgf: ±0.03% FSO
Zero Balance: ±1% of FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: 0.0036% FSO/°C Span: 0.0036% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.025 to 0.076 mm (0.001 to 0.003") typical
Construction: 17-4 PH stainless steel
Electrical: ≤5000 lb/2000 kgf: DT02H-10-6P >5000 lb/2500 kgf: MS3102E-14S-6P (or equiv.)
Mating Connector (Included): ≤5000 lb/2000 kgf: PT06F10-6S >5000 lb/2500 kgf: MS3102E-14S-6S (or equiv.)
