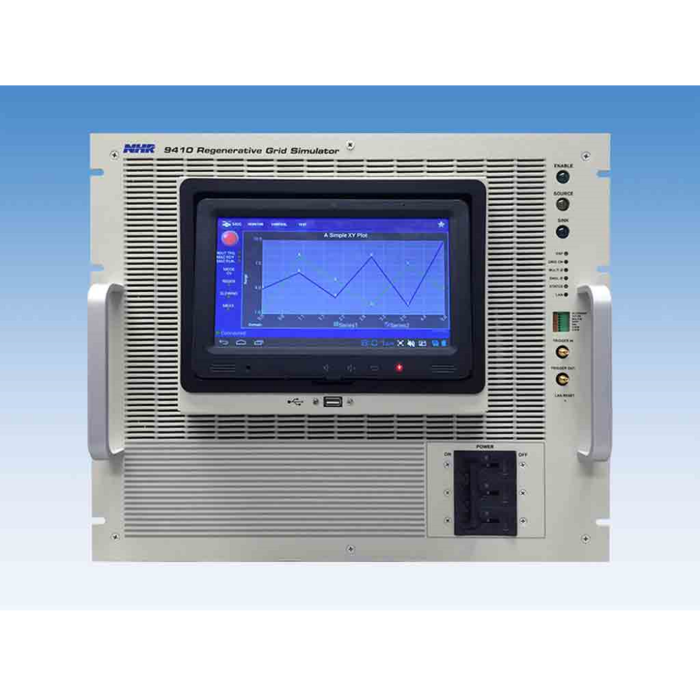

NH Research 9410-12 for Rent, Regenerative Grid Simmulator
Regenerative Grid Simmulator
Order #: 9410-12-RENT1
Mfg #: 9410-12-RENT2
Call for price
Call for price
NH Research 9410-12 for Rent, Regenerative Grid Simmulator
Regenerative Grid Simmulator
Order #: 9410-12-RENT1
Mfg #: 9410-12-RENT2
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Product Highlights
- 8 models – 4kW/10.5kVA to 96kW/252kVA
- Output AC Voltage Ranges – 175, 350VRMS L-N
- Output DC Voltage – 200, 400VDC
- Output Frequency – DC, 30 to 100Hz
- Programmable 1, 2 or 3-Phase modes
- Full 4 quadrant AC source operation
- High resolution waveform capture on all V & I
- Sink power regenerated back to facility
- 9” Touch-Panel user interface
- SCPI programming & NI LabVIEW drivers
The NH Research 9410-12 Regenerative Grid Simulator is the smallest and most versatile grid simulator available for IEEE 1547/UL 1741/LVRT and similar grid-connected device testing. The NHR 9410-12 grid simulator is a fully-programmable, full 4 quadrant AC source designed for testing inverters, UPS, and other AC devices. This 4 quadrant grid simulator also supports up to three (3) outputs allowing any combination of DC or 1Φ, 2Φ, & 3Φ AC test channels. Each channel is fully programmable allowing per-output control of the AC voltage amplitude, wave-shape, & phase relationship. In addition, each output channel within this grid simulator contains a built-in advanced measurement system including a 125k Sample/sec waveform digitizer in order to capture and analyze transients, harmonics, & other AC disturbances. These features makes this grid simulator ideal for development, laboratory, and production facility testing especially when a single channel test system is required.
NOTE: This instrument is extremely heavy unit and needs to ship freight. Orders must be placed before 4 pm ET / 1 pm PT to allow time for scheduling freight pickup.
