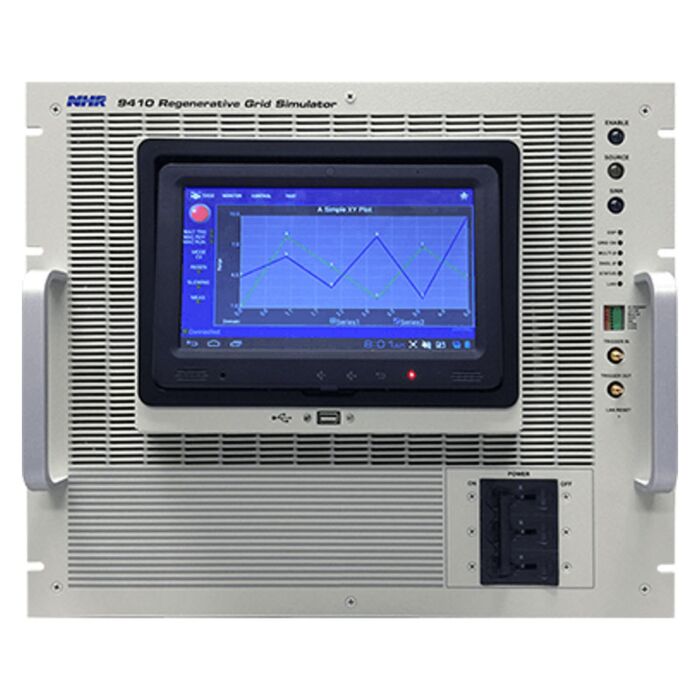

NH Research 9410-36 for Rent, AC/DC Power Supply - 1 to 3 Phase 400V/Phase 90A/Phase, 36kW
AC/DC Power Supply,1-to 3-Phase 400V/Phase,90A/Phase,36kW
Order #: 9410-36-RENT2
Mfg #: 9410-36-RENT2
Call for price
Call for price
NH Research 9410-36 for Rent, AC/DC Power Supply - 1 to 3 Phase 400V/Phase 90A/Phase, 36kW
AC/DC Power Supply,1-to 3-Phase 400V/Phase,90A/Phase,36kW
Order #: 9410-36-RENT2
Mfg #: 9410-36-RENT2
Call for price
Call for price
Product Highlights
The 9410 from NH Research is a four-quadrant (bi-directional) AC/DC source with selectable phase outputs, a built-in waveform-digitizing measurement system and robust line disturbance creation tools. When used in the regenerative (sink) mode, it sends returned power back to the facility mains rather than being dissipated as heat. The most frequent application of the 9410 is use as a grid simulator for testing PV inverters and other grid-tied products for compliance to industry standards.
Features
- 8 models 4kW/10.5kVA to 96kW/252kVA
- Output AC Voltage Ranges 175, 350VRMS L-N
- Output DC Voltage 200, 400VDC
- Output Frequency DC, 30 to 100Hz
- Programmable 1, 2 or 3-Phase modes
- Full 4 quadrant AC source operation
- High resolution waveform capture on all V & I
- Sink power regenerated back to facility
- 9" Touch-Panel user interface
- SCPI programming & NI LabVIEW drivers
Advantages
- Bi-directional AC Inverter testing & µgrid simulation
- More reactive power per kW
- Simplifies automated test stand development
- Software selectable 1, 2, or 3 Phase operation
- Isolated digital inputs & outputs
- Built-in SW watchdog & safety limits
- Software tools to shorten test development time
- PC-based tools & NI certified drivers
- NI certified LabVIEW & IVI-C/IVI-COM drivers
- Optional: Enerchron® test sequencer
Benefits
- Regenerative, returns greater than 85% of power to the facility, which provides significant electrical savings.
- Field upgradeable to higher power
- Fully emulate any utility/grid condition
- Simulate non-ideal Phase phase angles (A-B & A-C)
| Try Before You Buy | |
| Save Time & Money | |
| Weekly and Monthly Rentals | |
| Access Our Large Inventory | |
| Long-term Discounts and Rent-to-Buy Options Available |
How to Rent from Transcat
1. Select Your Rental Product
- Need help selecting a unit? Try using our Product Finder or search our available units
- Can’t find what you are looking for? Is the rental unit you need, not available? Give us a call at 800-828-1470 or our chat feature to speak with one of our dedicated Rental Experts
2. Contact Our Team of Rental Experts
- Contact us here or click below to submit your request for a rental quote and a member of our Rental Team will review the request and will reach out to you very soon
3. Select Your Rental Period & Complete Your Order
- Our weekly period lasts 7 calendar days, while our monthly rental period lasts 28 calendar days
- Provide your form of payment, sign the rental agreement and any other required documents, and we will ship you the unit
-
