NOSHOK 604-FFC
600 Series 1/2" NPTF - 1/2" NPT F Steel Hard Seat Block & Blee

Order #: 604-FFC

Mfg #: 604-FFC

Questions about availability or need help? Contact Us:

(800) 633-0561
$117.45

NOSHOK 604-FFC

600 Series 1/2" NPTF - 1/2" NPT F Steel Hard Seat Block & Blee

Order #: 604-FFC

Mfg #: 604-FFC

Loading...
Print Save Item Compare
$117.45
Register to view exclusive member pricing
Availability: Ships in 3-4 weeks

 Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • 1/2" NPT F - F Hard Seat Steel Block & Bleed Valve
  • Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 10,000 PSI pressure rating @ 200°F
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil® packing optional
  • All stems are 316 stainless steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)
  • 0.090" bleed hole located on the bottom is controlled by a 1/4"-20 UNF-2A bleed screw

Recently viewed

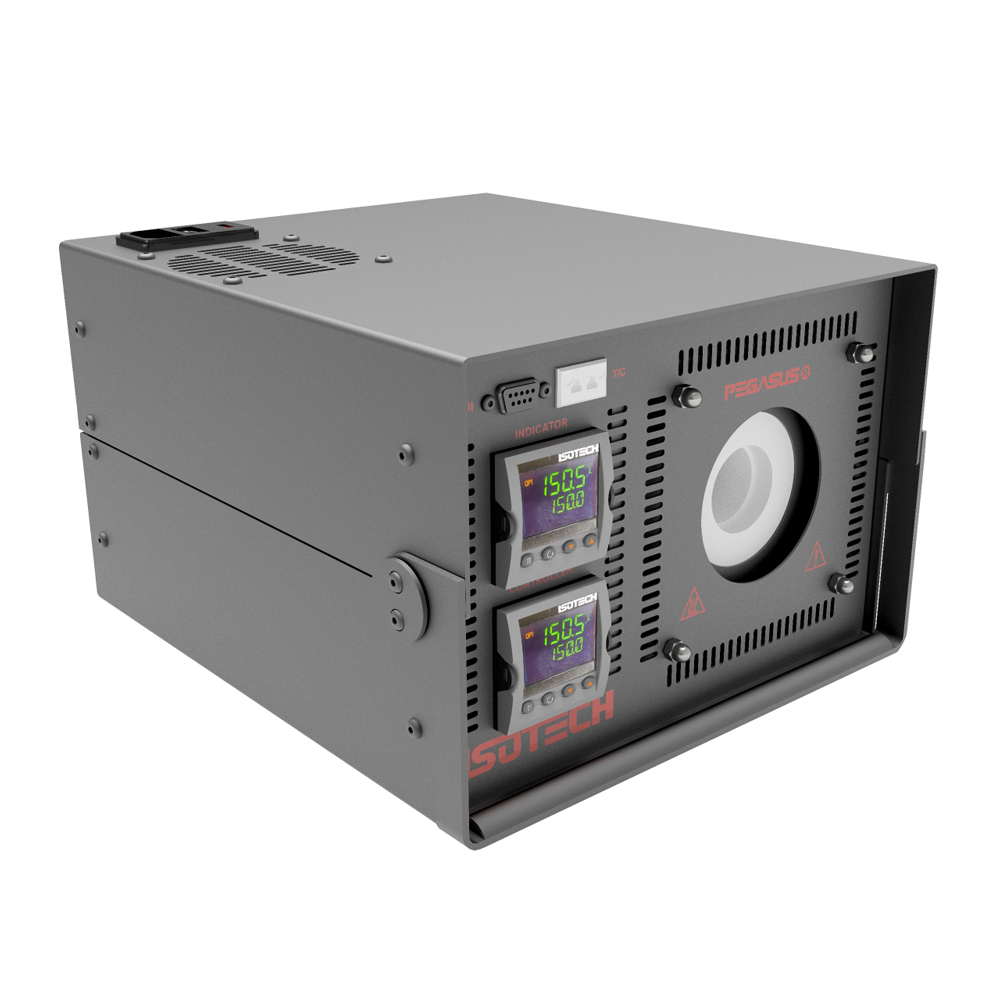

  1. Used Isotech PEGASUS R-970 Blackbody Calibrator, 150C to 1200C
