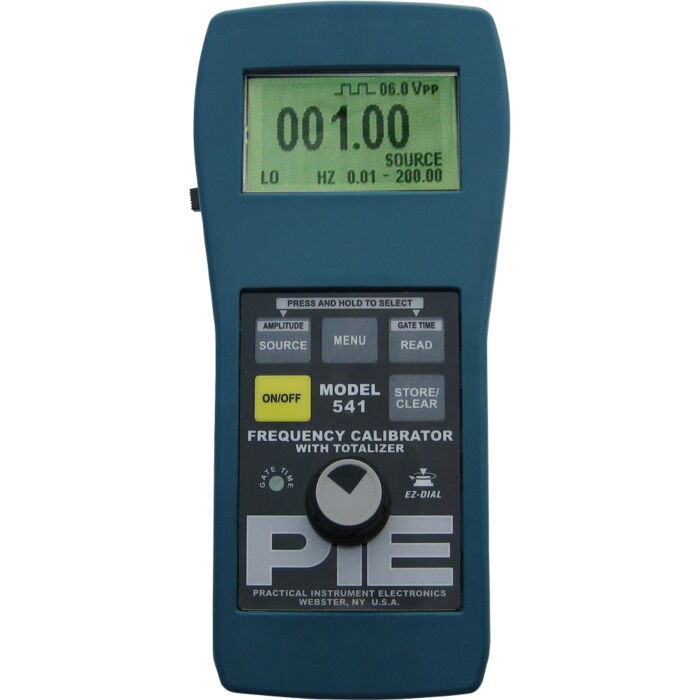

PIE 541-BNC

Freq.Calibrator w/NIST Cert. Carrying Case,BNC Connector

Order #: PIE 541-BNC

Mfg #: PIE 541-BNC

$2,379.00

The Model 541 comes with an LED indicator showing gate time for easy trigger level adjustment

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $282.83

Calibration with Data + $386.57

Accredited Calibration with Data and Uncertainties + $492.49

Add Calibration

Qty

Accuracy: ± 0.005% of range
5 ranges from 1CPH to 20.000KHz for source and read
Totalize inputs/outputs from 1 to 99999 in 1.0 to 100.0 minutes
Read a wide range of frequencies and waveforms from 50mV to 120V peak
Source sine and square waves, zero based, or zero crossing
Adjustable amplitude from 100mV to 12V peak-to-peak
Gate trigger LED flashes in synch with the output frequency. This allows easy adjustment of the attenuation for proper gate triggering
EZ-Dial™ knob easily adjust output by 1
Pressing down and turning will select a faster dialing speed
EZ-Check™ switch for 0% and 100% span adjustments
Store new EZ-Check™ values by pressing the EZ-Dial™ knob
Uses a standard 9V Alkaline Battery
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight, Rugged and Reliable
Small, tough and protected to 60V

PIE Calibrators The Altek Replacements Datasheet
