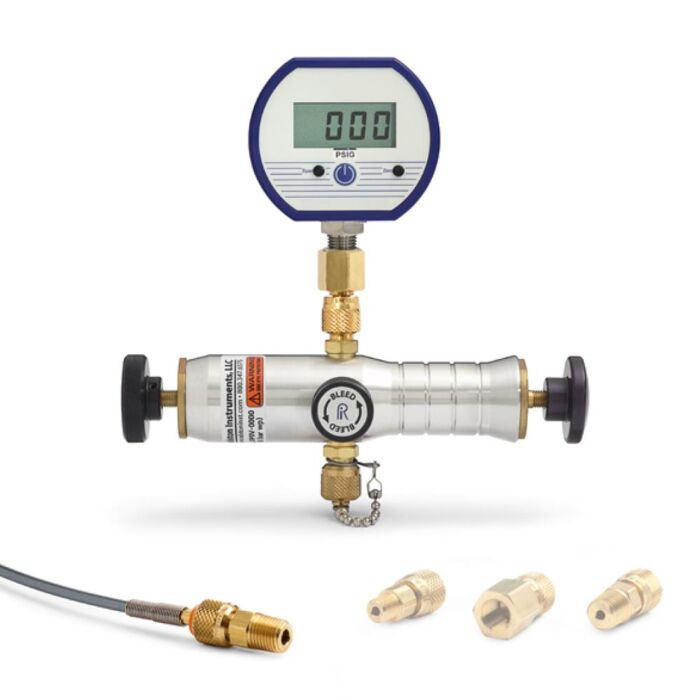

Ralston Instruments DP0V-100PSIG-D DP0V, 100 PSIG Digital Gauge Pressure Calibration Kit

Product Highlights

Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations

• 100PSIG
• Light weight, compact pump generates up to 125 psi (8.6 bar) with ease
• Large volume fine adjustment piston provides precise control, even at very low pressures
• Modular design makes field maintenance quick and easy
• Precisely vent pressure with soft seated bleed valve
• Two outlet ports provide connections for both pressure reference and for device under test thus eliminating a tee
• Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
• Rugged, all metal construction reduces pressure changes due to temperature fluctuations
• Made in U.S.A.

Each Unit Includes

• Hand Pump - DP0V Assembly (DP0V)
• Hose - Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
• Process Connection 1 - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
• Gauge Swivel - 1/4" female NPT x female Quick-test, no check-valve, brass (QTHA-2FBA)
• Gauge - 0-100 psig Digital Pressure Gauge (±0.25% full scale accuracy) (GAUD-0100)
