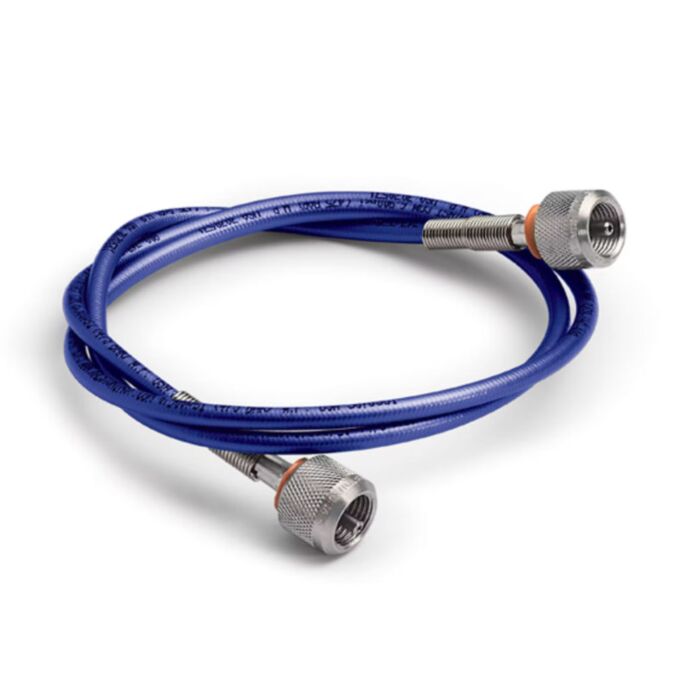

Ralston Instruments XTXT-HOS-3FT
Quick-test XT 10,000PSI Hose SS Hose Ends,3ft long
Order #: XTXT-HOS-3FT
Mfg #: XTXT-HOS-3FT
$162.79
Ralston Instruments XTXT-HOS-3FT
Quick-test XT 10,000PSI Hose SS Hose Ends,3ft long
Order #: XTXT-HOS-3FT
Mfg #: XTXT-HOS-3FT
$162.79
Availability: Ships in 2-3 weeks
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
10,000 psi (689 bar) working pressure Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test.
- Low volume reduces the pumping effort or compressed gas usage in pressure calibration
- No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
- Bubble tight connections to 10000 psi (689 bar) with no moving parts reduces maintenance to almost zero
- Hose is hard to break and very flexible
- Adapt from hose to virtually any device under test with only one connection
- A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
- Hose is not recommended for Helium or Argon applications
- Hose is pin-pricked for use in Natural Gas applications
- Quick-test XT hoses are NOT compatible with QTHA adapters. Please use XTHA adapters
- Made in USA
- Length: 3 ft
- Pressure Range: 0 to 10000 psi (0 to 689 bar)
- Burst Pressure: 40000 psi (2,756 bar)
- End 1: Female Quick-test XT, stainless steel
- End 2: Female Quick-test XT, stainless steel
- Temperature range: -40 to 140 °F (-40 to 60 °C)
- Outer Diameter: 0.24 in (6.1 mm)
- Inner Diameter: 0.08 in (2.0 mm)
- Minimum Bend Radius: 1 in (25.4 mm)
- Color: Blue
- Construction: Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
- End materials: Stainless Steel
- Fluid Media: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
