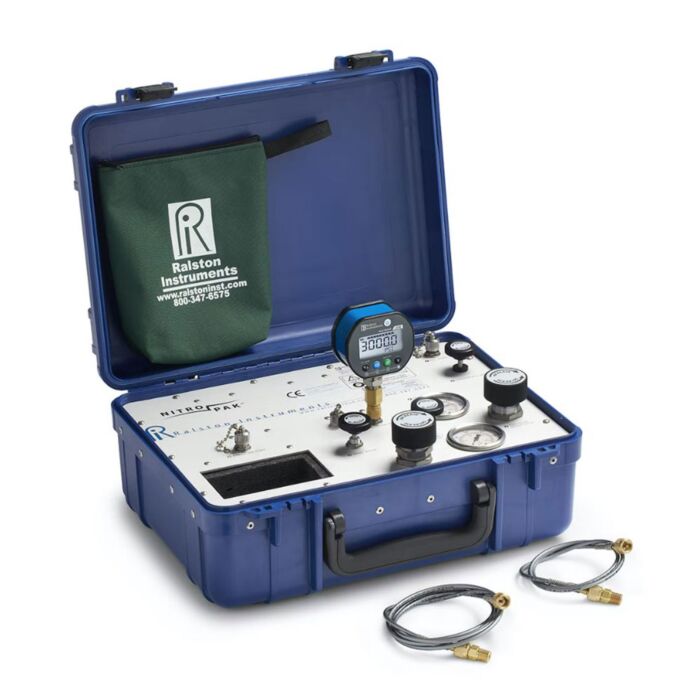

Ralston Instruments NPAK-KIT2-GP
Nitropak, LC20, adapter, 2 hoses and process connections
Order #: NPAK-KIT2-GP
Mfg #: NPAK-KIT2-GP
$6,257.63
Ralston Instruments NPAK-KIT2-GP
Nitropak, LC20, adapter, 2 hoses and process connections
Order #: NPAK-KIT2-GP
Mfg #: NPAK-KIT2-GP
$6,257.63
Availability: Ships in 3-4 weeks
Product Highlights
Nitropak, LC20 Pressure gauge (1000 psi), gauge adapter, 2 hoses, 2 process connections
Complete kit includes nitrogen source, pressure gauge and all fittings and adapters to perform differential and static pressure calibrations using nitrogen
- Pressure Source: Nitropak Portable Nitrogen Source
- Pressure Reference: LC20 pressure gauge, 1000 psi / 7 MPa, 1/4" Male NPT bottom connection
- Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
- Process Connection 1: 1/4" male NPT x male Quick-test, no check-valve, brass
- Process Connection 2: 1/4" male NPT x male Quick-test, no check-valve, brass
- Hose 1: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
- Hose 2: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
Country of origin | USA |
---|---|
Hose 1 | Quick-test Hose, Brass ends, 6ft / 1.9m long |
Hose 2 | Quick-test Hose, Brass ends, 3ft / 0.9m long |
Pressure Reference | Digital pressure gauge, 1000 PSIG Pressure |
Process Connection | 1/4" Male NPT |
Reference Connection | 1/4" Female NPT |
Materials | ABS Plastic, Aluminum, Anodized Aluminum, Brass, Plated Steel, Stainless Steel, Zippered Nylon with Velcro |
Seal Materials | Buna-N, Delrin, Teflon |
Max Pressure | 3000 PSI / 200 bar / 20 MPa |
Max Vacuum | 10 InHg / 33.9 kPa |
Min Operating Temperature | 0 °F / -18 °C |
Max Operating Temperature | 130 °F / 54 °C |
