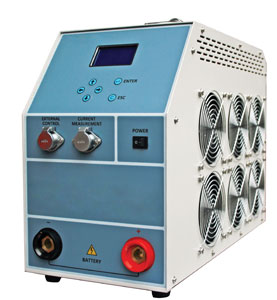

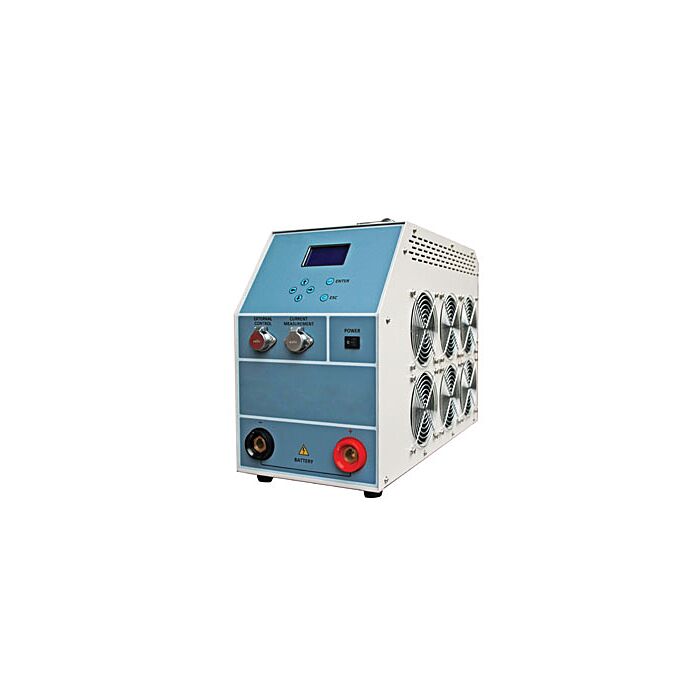

Storage Battery System SBS-4830S

Constant Current DC Load Banks 20-40DC Volt;0-150A DC Range

Order #: SBS-4830S

Mfg #: SBS-4830S

$6,995.00

Availability: Ships in 3-4 weeks

Constant current load bank holds the current set throughout the test
LED screen displays real time voltage, discharge current and Ah removed
Units can be paralleled with the SBS-8400 or other load banks
Easily adjust settings electronically
3 adjustable stop points - End system voltage, Discharge time, Discharge capacity (Ah)
Display LCD (128 x 64 pixels)
Input During discharge: real time voltage / current / test time / Ah discharged
User can set: end system voltage / test time / Capacity discharged (Ah)
Test Type Unit controls the current so it stays where it is set throughout the test
Protection Over heat / Over load / Over voltage protection with audible alarm and screen warning
Power Supply 24/48 Vdc modules use DC power supply (from tested battery)
125 and 250 Vdc models use AC power supply (110 Vac 60 Hz)
DC Cables Included - 9 ft long

Storage Battery System Constant Current DC Load Banks Datasheet
