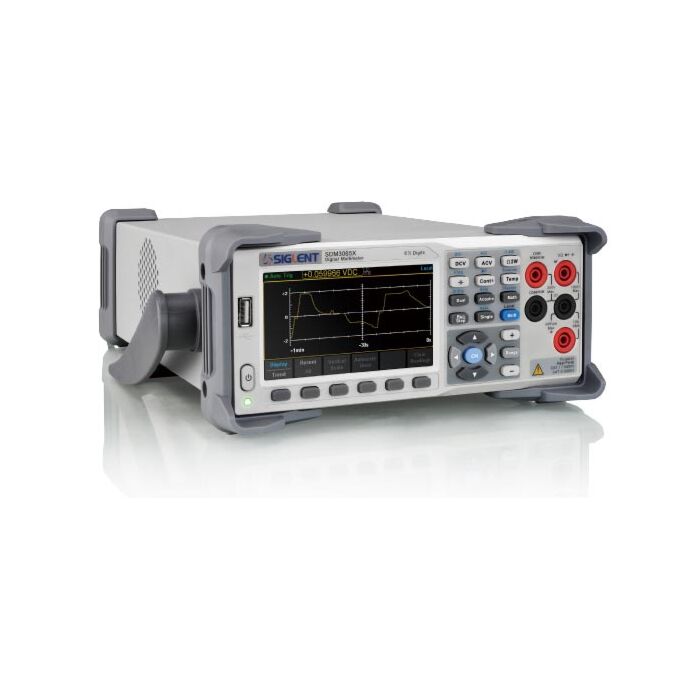

Siglent SDM3065X

Product Highlights

• 4.3” TFT-LCD, 480*272
• Real 6½ digits readings resolution (2,200,000 counts)
• 1Gb Nand flash size, Mass storage configuration files and data files
• True-RMS AC Voltage and AC Current measuring
• Support double display, Chinese and English Menu
• File management (support for U-disc and local storage)
• Built-in cold terminal compensation for thermocouple
• With easy, convenient and flexible any sensor measurement control software: EasyDMM
• Standard interface: USB Device, USB Host, LAN (Optional Accessories: GPIB and Scanner Card)
• Built-in help system makes information acquisition more easier
• Support remote control via commands and compatible with commands of main stream multimeters
• Main Function:
  • DC Voltage: 200 mV ~ 1000 V
  • DC Current: 200 μA ~ 10 A
  • AC Voltage: True-RMS, 200 mV ~ 750 V
  • AC Current: True-RMS, 200 μA ~ 10 A
  • 2/4-Wire Resistance: 200Ω ~ 100 MΩ
  • Capacitance: 2 nF ~ 100 mF
  • Continuity Test: Range is fixed at 2 kΩ
  • Diode Test: Adjustable range is 0 ～ 4V.
  • Frequency Measurement: 3 Hz ~ 1 MHz
  • Period Measurement: 1 μs ~ 333.33 ms
  • Temperature: Support for TC and RTD sensor
• Math Function:
  • Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
• Application fields:
  • Research Laboratory
  • Development Laboratory
  • Detection and Maintenance
  • Calibration Laboratory
  • Automatic Production Test

Each Unit Includes

• A Power Cord that fits the standard of destination country
• Two Test Leads, Two Alligator Clips
• A USB Cable
• A Quick Start
• A guaranty Card
• A CD (including EasyDmm computer software system)
