Siglent SVA1032X Network Analyzer,9kHz to 3.2GHz

Overview

Product Highlights

Siglent SVA1032X 9 kHz - 3.2 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.

The base model are a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

*New SVA1000X instruments feature approximately 100 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.

Tracking Generator Standard

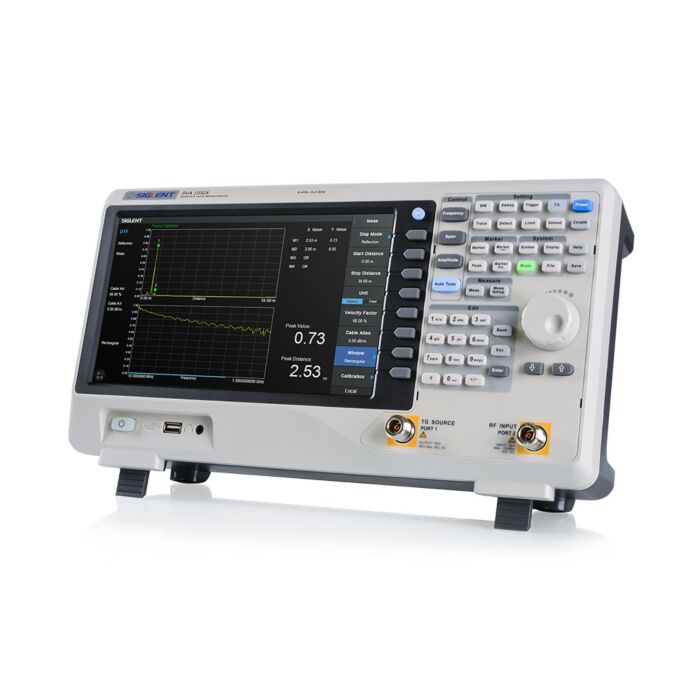

Distance To Fault (Opt.)
Vector Network Analyzer function (included after 9/23/2019)
EMI Filter and Quasi-Peak Detector Kit (Opt.)
Advanced Measurement Kit (Opt.)
10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
Web Browser Remote Control on PC and Mobile Terminals and File Operation

Technical Resources

Siglent SVA1000 Series Datasheet
Siglent SVA1000 Series Programming Guide
Siglent SVA1000 Series Service Manual
Siglent SVA1000 Series User Manual

Specifications

Model	SVA1015X	SVA1032X	SVA1075X
Spectrum Analyzer Frequency Range	9 kHz~1.5 GHz	9 kHz~3.2 GHz	9 kHz~7.5 GHz
Vector Network Analyzer Frequency Range	10 MHz~1.5 GHz	100 kHz~3.2 GHz	100 kHz~7.5 GHz
Resolution Bandwidth	1 Hz~1 MHz	1 Hz~1 MHz	1 Hz~3 MHz
Displayed Average Noise Level	-156 dBm/Hz	-161 dBm/Hz	-165 dBm/Hz
SSB Phase Noise	<-99 dBc/Hz	<-98 dBc/Hz	<-98 dBc/Hz
Total Amplitude Accuracy	< 1.2 dB	< 0.7 dB	< 0.7 dB
Tracking Generator	5 MHz~1.5 GHz	100 kHz~3.2 GHz	100 kHz~7.5 GHz
VNA measurement	Vector S11,Vector S21	Vector S11,Vector S21	Vector S11,Vector S21
Distance to Fault	VNA Timing Domain Analysis Locator	VNA Timing Domain Analysis Locator	VNA Timing Domain Analysis Locator
Touch Screen	Multi Touch, Mouse and Keyboard supported	Multi Touch, Mouse and Keyboard supported	Multi Touch, Mouse and Keyboard supported

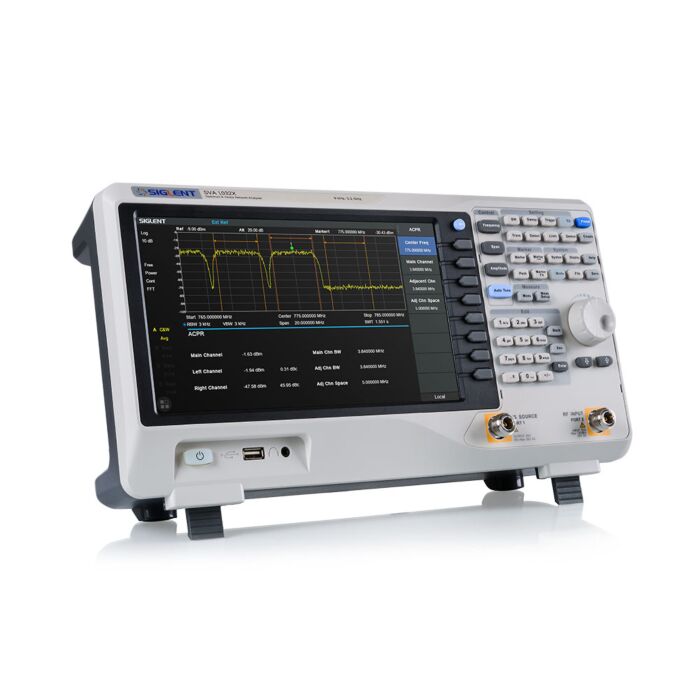

Advanced Measurement	CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor	CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor	CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Reflection Measurement	VSWR measurement using Reflection Bridge	VSWR measurement using Reflection Bridge	VSWR measurement using Reflection Bridge
EMI Test	EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line	EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line	EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line

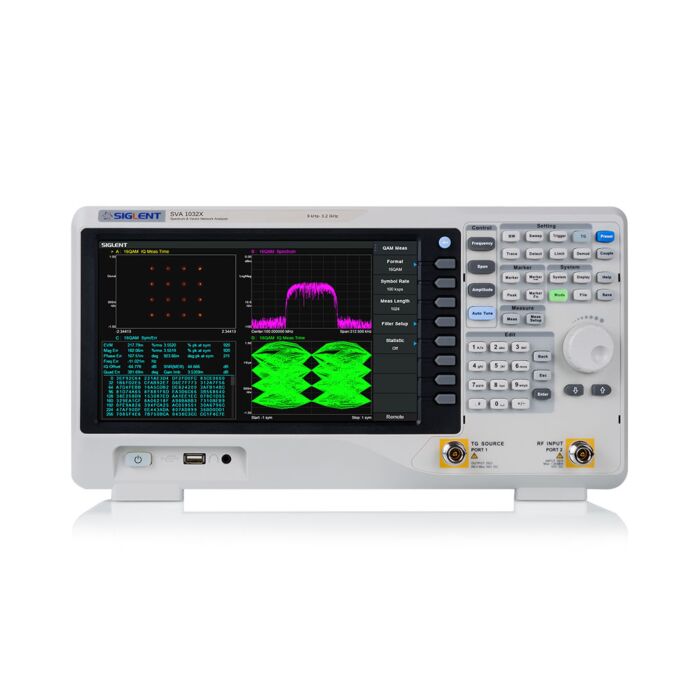

Modulation Analysis	AM, FM; ASK, FSK, MSK, PSK, QAM	AM, FM; ASK, FSK, MSK, PSK, QAM	AM, FM; ASK, FSK, MSK, PSK, QAM
Communication Interface	LAN, USB Device, USB Host (USB-GPIB)	LAN, USB Device, USB Host (USB-GPIB)	LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet	SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
