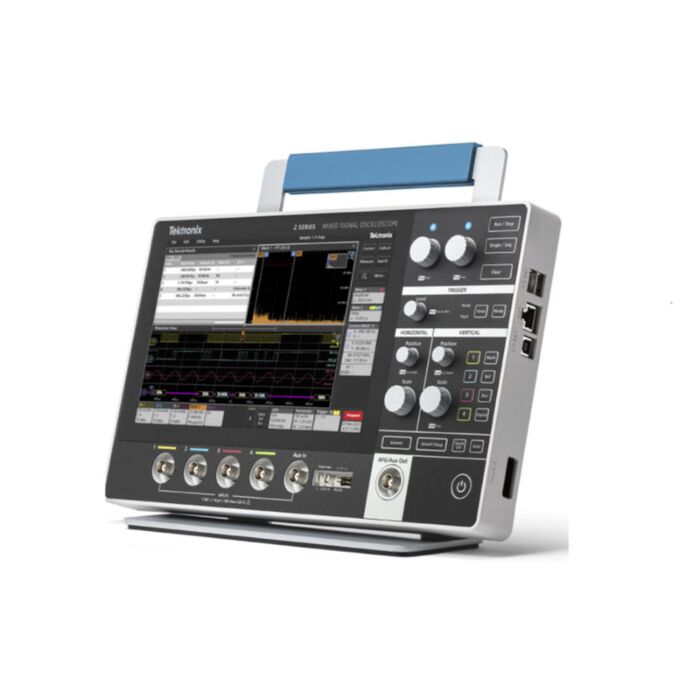

Tektronix MSO22 2 Series Mixed Signal Oscilloscope, 2 Analog Channels

Product Highlights

Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length

Compact, versatile oscilloscope for daily debug

The 2 Series MSO features up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital patten generator, advanced triggers, protocol decode, DVM, and frequency counter is packed with features, all in a compact form factor about 1.5" thick making it the go-to oscilloscope for electronic debug and test, no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface truly designed for touch, the 2 Series MSO joins the Tektronix family of award-winning next generation oscilloscopes. The shared user interface and the programmatic interface makes it easy to use any Tektronix next generation oscilloscope

The optional battery pack extends the instrument capabilities by enabling the same instrument that is used in the lab to also be used in the field.

A large catalog of compatible probes and well-rounded set of accessories makes the 2 Series MSO the most capable and versatile instrument in its class and suitable for a variety of applications.

Intuitive touchscreen with simplified front panel

The 2 Series MSO offers the same, award-winning user interface as on the higher end Tektronix oscilloscopes and supports touch-interactions that you have come to expect in a touch-enabled consumer device.

• Drag waveforms left/right or up/down to adjust horizontal and vertical position or to pan a zoomed view
• Pinch and expand to change scale or zoom in/out in either horizontal or vertical directions
• Swipe in from the right to reveal the results bar or down from the top to access the menus in the upper left corner of the display

The simplified front panel retains critical buttons and knobs with colorcoded LED ring lights allowing quick access and easy adjustment of the most frequently used instrument settings.

The membrane switch technology makes it rugged and suitable for use in harsh environments and easy to clean.

The combination of a streamlined front panel with an intuitive touch interface makes it easy for any new engineer to self-discover and begin using the instrument.

An USB mouse and/or a keyboard is also supported and can be used as a third interaction method with the instrument.

Key Benefits

• Compact
• Lightweight
• Portable
• Modern UI
• Full bench capability
• Dimensions
  • Instrument only
    • Height 210 mm (8.26 in)
    • Width 344 mm (13.54 in)
    • Depth 40.4 mm (1.59 in)
  • Instrument with battery pack
    • Height 210 mm (8.26 in)
    • Width 344 mm (13.54 in)
    • Depth 78 mm (3.07 in)
• Weight
  • Instrument only
    • 1.8 kg (4 lbs)
  • Instrument with battery pack
    • 3.2 kg (7 lbs) - one battery
    • 3.6 kg (8 lbs) - two batteries
• Cooling Clearance
  • 2 in required on left side, right side and rear of the instrument

Each Unit Includes

• TPP0200 200 MHz, 10x probe (one per channel)
• Instrument stand
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
• Embedded help
• External power supply
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
• One-year warranty covering all parts and labor cost on the instrument and the included probes and probes
