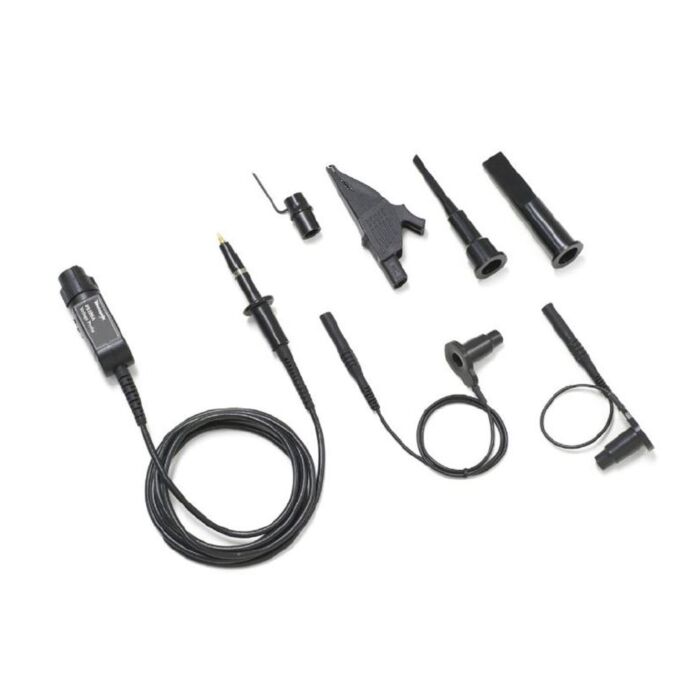

Tektronix P5100A High Voltage Probe, 500 MHz, 100X, 2.5 kV, Single-ended, BNC
High Voltage Probe: 500 MHz: 100X: 2.5 kV: Single-ended: BNC
Order #: P5100A
Mfg #: P5100A
$828.00
Tektronix P5100A High Voltage Probe, 500 MHz, 100X, 2.5 kV, Single-ended, BNC
High Voltage Probe: 500 MHz: 100X: 2.5 kV: Single-ended: BNC
Order #: P5100A
Mfg #: P5100A
Product Highlights
The P5100A from Tektronix is a 500MHz passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. The P5100A low input capacitance probe is designed for higher frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw on accessories provides easy connection to device under test.
- DC to 500MHz bandwidth
- 100X attenuation
- Nominal length of 2m
- 100X attenuation
- Rise time is typically less than 700ps
- Maximum input voltage (DC or RMS) of 2.5KV peak and 1000Vrms (CAT II)
