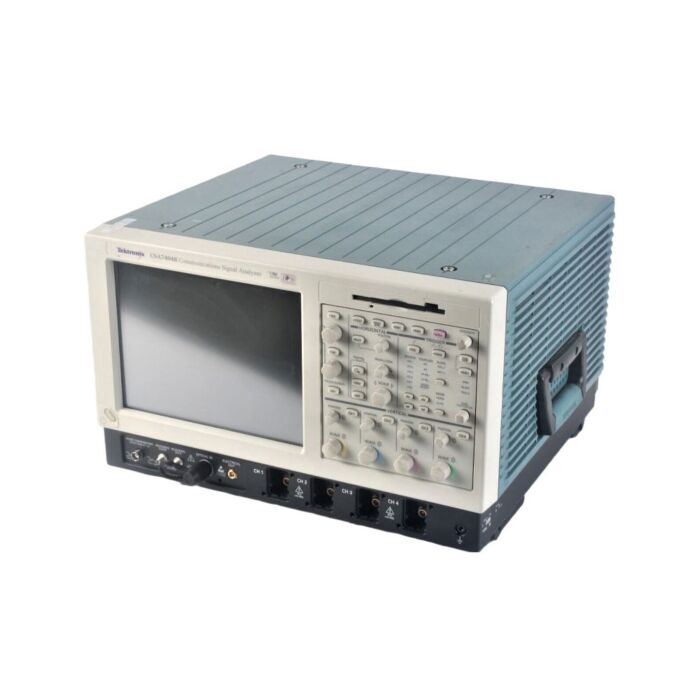

Tektronix CSA7404B for Rent, Communications Signal Analyzer, 4 GHz, 4 Channel, 20 GS/s

Product Highlights

The Tektronix CSA7404B Communication Signal Analyzer is a versatile, high-performance Real-time Digital Oscilloscope that is dedicated to rapid design analysis and verification of communications signals Up to 2.5 Gb/s Rates (OC-48/STM-16 or Fibre Channel FC2125)

The CSA7404B reduces product development time by providing one tool that spans circuit development and physical layer testing. With this family, engineers can test designs for compliance to network communications standards as well as analyze critical internal parameters such as signal integrity, timing margins and jitter.

The Tek CSA7404B has 4 GHz true analog bandwidth, a 20 GS/s maximum real-time sample rate and more than 400,000 wfms/s waveform capture rate, enabled by exclusive DPX acquisition technology, to rapidly acquire electrical and optical signal information not revealed with other analysis tools. Integrated broad wavelength optical response, clock recovery, serial pattern triggering and mask testing make testing faster, easier and more efficient. Innovative software solutions deliver domain expertise for advanced analysis and compliance testing, while the OpenChoice architecture enables users to integrate their expertise through the ability to easily write custom programs or utilize popular commercial software. Instrument operation is familiar and intuitive through direct controls and a graphical user interface. This unique combination of superior measurement fidelity, unrivaled analysis and uncompromised usability speeds the development of network communications circuit designs.

Features and specifications of the Tektronix CSA7404B include:

• Real-time Oscilloscope Platform with Up to 4 GHz True Analog Bandwidth and Down to 72 ps Rise Time (20% - 80%)
• Versatile, High-performance Real-time Digital Oscilloscopes Dedicated to Rapid Design Analysis and Verification of Communications Signals Up to 2.5 Gb/s Rates (OC-48/STM-16 or Fibre Channel FC2125)
• >400,000 wfms/s Waveform Capture Rate, powered by exclusive DPX acquisition technology
• 20 GS/s Maximum Real-time Sample Rate
• MyScope Custom Control Windows Enhance Productivity
• Right Mouse Click Menus for Exceptional Efficiency
• Built-in Compliance Mask Tests with up to 2.5 Gb/s Optical and Electrical Data Stream Rates
• Integrated Optical Reference Receiver Protects Integrity of System Calibration
• Integrated Hardware Clock Recovery Provides Single-connection Convenience
• Up to 64 MB Record Length with MultiView Zoom for Quick Navigation of Long Records
• 64-Bit Serial Trigger for Isolation of Pattern-dependent Effects
• Complete Eye Pattern Measurements Suite Including Extinction Ratio, Q-factor, Eye Height/Width, Jitter and Noise
• Waveform Database Acquisition Technology for Accurate Parametric Measurements on Eye Patterns
• TekConnect Interface for High Fidelity Connection
• OpenChoice with Microsoft Windows 2000 Delivers Built-in Networking and Analysis

Applications for the Tek CSA7404B include:

• Design, Development, and Compliance Testing of Optical and Electrical Signals to 2.5 Gb/s Rates
• Physical Layer Characterization of Communication Signals in Backplane, Midplane and Embedded Designs
• Optical and Electrical Signal Integrity, Margin Verification, Jitter and Timing Analysis
