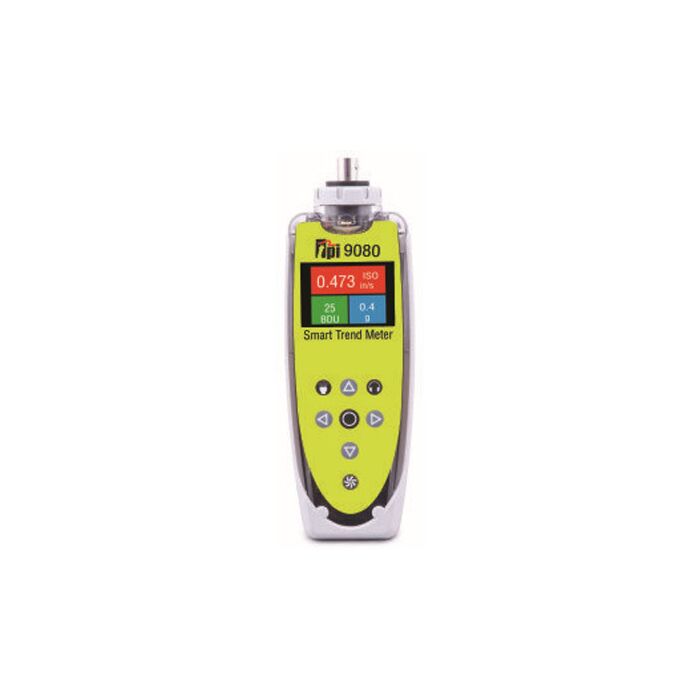

Test Products International 9080
Smart Trend Vibration Meter
Order #: 9080-TPI
Mfg #: 9080
Special Price
$1,243.20
Regular Price
$1,295.00
Test Products International 9080
Smart Trend Vibration Meter
Order #: 9080-TPI
Mfg #: 9080
Special Price
$1,243.20
Regular Price
$1,295.00
The TPI 9080 is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration signals at the push of a button. Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 7™ compatible.
Availability: Ships in 3-4 weeks
Product Highlights
- Collect data
- Trend data using VibTrend software
- Standard Cable mounted accelerometer with magnet
- Built-in Bluetooth communication capability
- USB docking station to download to a PC
- ISO built-in Alarms
- Easily identify bearing problems with BDU Reading
- Easily identify problems with built-in band tilters: 1X (unbalance) 2X (misalignment) 3X (looseness)
- 800 line FFT (spectrum)
- Listen to bearing noise with optional Bluetooth headphones
- Ruggedized IP67 case
- 3-year Limited Warranty
| Specifications | ||
| Size | 200 mm x 60mm x 26mm | |
| Weight | 280g (not including magnet) | |
| Environmental: | ||
| Water, Sand & Dust: | IP67 Waterproof | |
| Operating | 0°C to 50°C | |
| Storage | -20°c to 70°C | |
| Power supply | 2 x AA batteries | |
| Battery life | Auto power OFF - typically 20 hours continuous operating time depending on brightness setting. |
|
| Frequency range | 2 Hz to 1kHz (ISO) 1 kHz to 10 kHz (BOU) | |
| Max frequency resolution |
1.25 Hz @ 800 lines FFT setting Acceleration in g |
|
| Displayed Frequency Units | Hertz (Hz), RPM or CPM | |
| Input range | User selectable with accelerometer sensitivity | |
| Dynamic range | 96 dB (0.01g resolution) | |
| VA diagnostic bands (RPM = run speed) | Unbalance 1x RPM Alignment 2x RPM Looseness 3x RPM |
|
