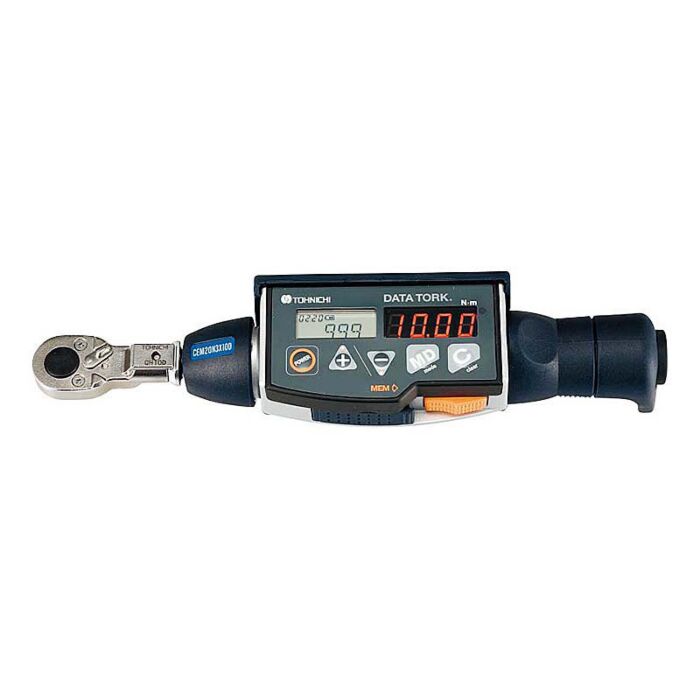

Tohnichi CEM20N3X10D-G

Product Highlights

• Industrial Grade Digital Torque Wrench Ideal for Quality Inspections
  • Robust and durable aluminum body.
• Two Mode Selection: Measuring Mode for quality inspections of already tightened fasteners or Tightening Mode for applying torque
• Dual LED and LCD Displays
  • LCD screen is viewable under the direct light, while LED screen is vivid in dark places.
• Easily select unit of measure by keypad. Certificate supplied in SI units.
• 999 Data Memory Capacity with torque value, time/date stamp, and count
  • Automatic or Manual Save Modes
• Set up Menu Selection: Measuring/Tightening Mode, Unit of Measure, Clock, Date, Data Output, Baud Rate, Hi/Lo Judgments, Buzzer, Auto- reset timer

DISPLAY				7 segments LED 4 lines 10 mm
				14 segments LCD 6 lines 7 mm
				7 segments LED 4 lines 3 mm
				Battery Life Indicator ( 4 steppes )
				Judgment LED RED / BLUE
MEMORY				Specifications Accuracy ±1% MODEL CEM10N3X8D-G CEM20N3X10D-G CEM50N3X12D-G CEM100N3X15D-G TORQUE RANGE [N · m] MIN.~MAX. 2~10 4~20 10~50 20~100 1 DIGIT 0.01 0.02 0.05 0.1 TORQUE RANGE [kgf · cm] MIN.~MAX. 20~100 40~200 100~500 200~1000 1 DIGIT 0.1 0.2 0.5 1 TORQUE RANGE [kgf · m] MIN.~MAX. 0.2~1 0.4~2 1~5 2~10 1 DIGIT 0.001 0.002 0.005 0.01 TORQUE RANGE [lbf · in] MIN.~MAX. 20~90 36~180 100~440 200~880 1 DIGIT 0.1 0.2 0.5 1 TORQUE RANGE [lbf · ft] MIN.~MAX. 1.5~7.3 3~14.5 7.5~36 15~73 1 DIGIT 0.01 0.02 0.05 0.1 MAX. HAND FORCE [N] 48.1 92.2 196.9 275.5 DIMENSION [mm] EFFECTIVE LENGTH (L) 208 217 254 363 OVERALL LENGTH (L') 212 214 282 384 HEAD (d3) 8 10 12 15 WEIGHT [kg] 0.46 0.47 0.58 0.63 INTERCHANGEABLE HEAD (SH,RH,QH,HH) 8D (SH,SH-N,RH,QH,DH,HH) 10D (SH,RH,QH,RQH,DH,HH) 12D (SH,RH,QH,RQH,DH,HH) 15D Technical Resources Tohnichi CEM3-G Operating Instruction Tohnichi CEM3 and CEM3-P Brochure
