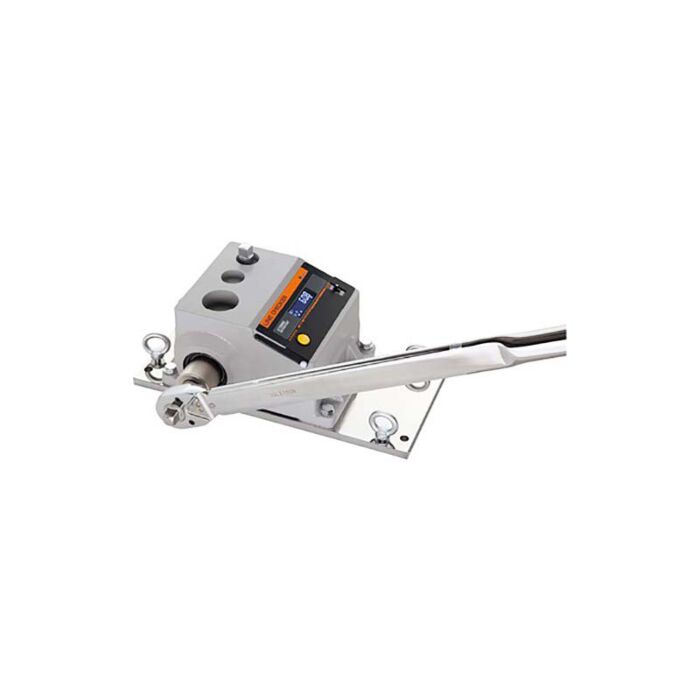

Tohnichi LC1000N3-G
Torque Wrench Line Checker 50-1000Nm,500-8800lbf.in
Order #: LC1000N3-G
Mfg #: LC1000N3-G
Special Price
$5,787.58
Regular Price
$6,157.00
Tohnichi LC1000N3-G
Torque Wrench Line Checker 50-1000Nm,500-8800lbf.in
Order #: LC1000N3-G
Mfg #: LC1000N3-G
Special Price
$5,787.58
Regular Price
$6,157.00
Availability: Ships in 3-4 weeks
Product Highlights
- Different colored LCD display visibly notifies judgment results.
- Wide measurement range, reasonably priced, compact and high accuracy.
- Can read actual running torque (Patented).
- Built-in statistical processing functions.
- Statistical processing functions automatically calculate sample numbers and maximum, minimum and mean values.
- Hex adapters can be combined to test different sized open-end torque wrenches.
- Power source AC100V-240V±10% to cover international use.
- Battery pack is available as an option.
- Support use in the EU.
- With CE marking.
- We have experience manufacturing products with American units of measurement (lbf, in, etc.) for Japan's aircraft manufacturing industry and for export to the U.S., and products with metric units of measurement (kgf, cm, etc.) for export to other parts of the world.
| Accuracy ± 1%+1digit | |||||||||||||||
| MODEL | LC20N3-G | LC200N3-G | LC1000N3-G | LC1400N3-G | |||||||||||
|
TORQUE RANGE [cN · m] |
PEAK | 50.0~99.8 | 100~999 | 1000~2000 | |||||||||||
| 1 DIGIT | 0.2 | 1 | 10 | ||||||||||||
| RUN (Min~Max) | 50.0~2000.0 | ||||||||||||||
| 1 DIGIT | 0.2 | ||||||||||||||
|
TORQUE RANGE [N · m] |
PEAK | 0.500~0.998 | 1.00~9.99 | 10.0~20.0 | 5.00~9.98 | 10.0~99.9 | 100~200 | 50.0~99.9 | 100~1000 | 100~999 | 1000~1400 | - | |||
| 1 DIGIT | 0.002 | 0.01 | 0.1 | 0.02 | 0.1 | 1 | 0.1 | 1 | 1 | 10 | - | ||||
| RUN (Min~Max) | 0.500~20.000 | 5.00~200.00 | 50.0~1000.0 | 100.0~1400.0 | - | ||||||||||
| 1 DIGIT | 0.002 | 0.02 | 0.1 | 0.2 | - | ||||||||||
|
TORQUE RANGE [kgf · cm] |
PEAK | 5.0~9.98 | 10.0~99.9 | 10~200 | 50.0~99.8 | 100~999 | 1000~2000 | ||||||||
| 1 DIGIT | 0.02 | 0.1 | 1 | 0.2 | 1 | 10 | |||||||||
| RUN (Min~Max) | 5.0~200.0 | 50.0~2000.0 | |||||||||||||
| 1 DIGIT | 0.02 | 0.2 | |||||||||||||
|
TORQUE RANGE [kgf · m] |
PEAK | 5.0~9.99 | 10.0~100.0 | 10.0~99.9 | 100~140 | - | |||||||||
| 1 DIGIT | 0.01 | 0.1 | 0.1 | 1 | - | ||||||||||
| RUN (Min~Max) | 5.0~100.0 | 10.0~140.0 | - | ||||||||||||
| 1 DIGIT | 0.01 | 0.02 | - | ||||||||||||
|
TORQUE RANGE [lbf · in] |
PEAK | 5.0~9.98 | 10.0~99.9 | 100~174 | 50.0~99.8 | 100~999 | 100~1740 | 500~999 | 1000~8800 | 900~998 | 1000~9990 | 10000~12000 | |||
| 1 DIGIT | 0.02 | 0.1 | 1 | 0.2 | 1 | 10 | 1 | 10 | 2 | 10 | 100 | ||||
| RUN (Min~Max) | 5.0~174.0 | 50.0~174.0 | 500~8800 | 900~12000 | |||||||||||
| 1 DIGIT | 0.02 | 0.2 | 1 | 2 | |||||||||||
|
TORQUE RANGE [lbf · ft] |
PEAK | 4.00~9.98 | 10.0~99.9 | 100~140 | 36.8~99.9 | 100~735 | 75.0~99.8 | 100~1000 | |||||||
| 1 DIGIT | 0.02 | 0.1 | 1 | 0.1 | 1 | 0.2 | 1 | ||||||||
| RUN (Min~Max) | 4.00~140.00 | 36.8~735.0 | 75.0~1000.0 | ||||||||||||
| 1 DIGIT | 0.02 | 0.1 | 0.2 | ||||||||||||
| INLET DRIVE ?a[mm] | 9.53 | 12.7 | 25.4 | ||||||||||||
|
DIMENSION [mm] |
OVERALL LENGTH | 278 | 500 | ||||||||||||
| OVERALL WIDTH | 160 | 290 | 312 | ||||||||||||
| OVERALL HEIGHT | 167 | 186 | |||||||||||||
| WEIGHT [kg] | 10.5 | 34 | 39 | ||||||||||||
|
ACCESSORIES [mm] |
SOCKET ADAPTER | ?9.5(MALE) - ?6.35(FEMALE) No.270 | ?12.7(MALE) - ?9.53(FEMALE) No.272 | ?19.05(MALE) - ?12.7(FEMALE) No.274 | |||||||||||
| ?25.4(MALE) - ?19.05(FEMALE) No.276 | |||||||||||||||
| HEXAGON HEAD ADAPTER | ?9.53 - W6.35 | ?12.7 - 8,10,12,13,14,17,19,22 | - | ||||||||||||
| For torque driver | No.280 | ||||||||||||||
| ?9.53 - W8,10,12,13,14,17 No.282 | |||||||||||||||
