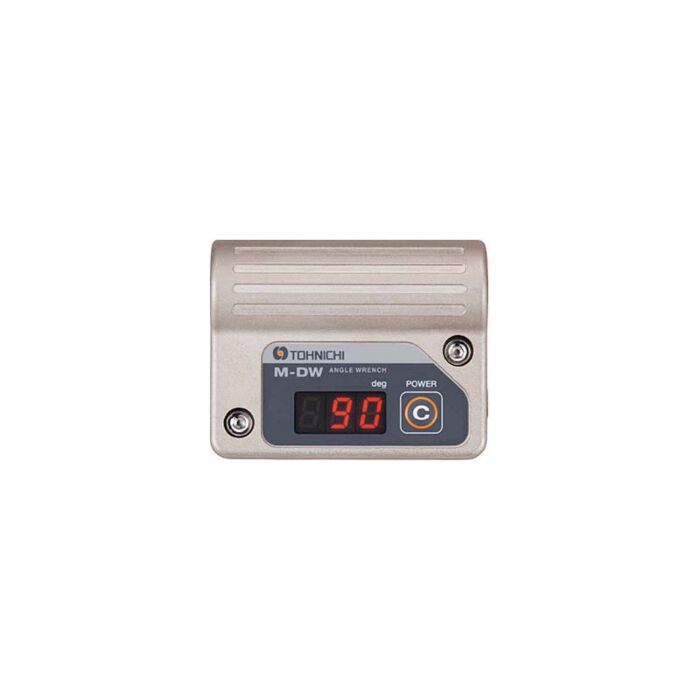

Tohnichi M-DW
Digital Angle Module
Order #: M-DW
Mfg #: M-DW
Special Price
$554.60
Regular Price
$590.00
Special Price
$554.60
Regular Price
$590.00
Availability: Ships in 3-4 weeks
Product Highlights
- Clicks at snug torque. Begins measuring and displaying rotation angle.
- LS type torque wrench can be converted to Angle torque wrench by installing M-DW.
- Used with wrench torque setting at snug torque.
- Clicks at snug torque. Begins measuring and displaying rotation angle.
- Click type wrench with Digital Angle Module, total of 6 models.
- Applicable for international use including the EU region.
- DWQL series is compliant with calibration procedures of ISO 6789 Type II Class A.
Angle Measuring Range |
0~999° |
1 Digit |
1° |
Angle Accuracy |
±2°?1digi(t Angular velocity is 30°/s~180°/s when the bolt turned to 90° |
Display |
7 segment LED 3digits / Character height 10mm |
Max Continuous Operation |
Approx. 60 hrs |
Standard |
0~40°C Below 85%(No condensation) |
Accessories |
Manual?1copy, Limit switch with connector?1pc, screws for attaching switch, washer?2pcs each, AA battery?1pc |
