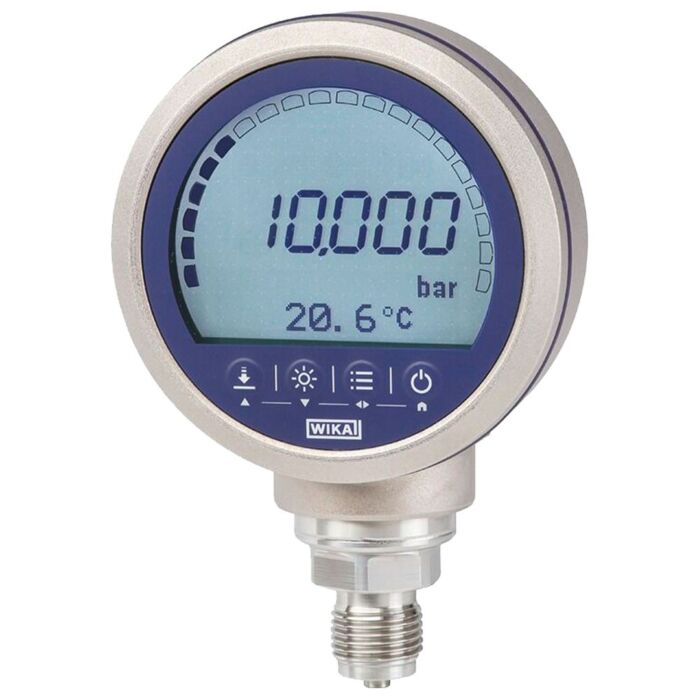

WIKA Instrument CPG1500-ST-Z-S-PA314-NBSZ-13-WZZZ-Z-ZZ

The accuracy of digital measurement technology and the simplicity of an analogue gauge are combined together to create the Wika CPG1500, which in terms of performance, ease-of-use, and instrument features, is unmatched in the pressure measurement market.

Wika CPG1500 Highlights

• Accuracy: 0.1% FS
• Measuring ranges up to 20 PSIA
• Display: 5 ½ digits, Bar graphic 0100%, Backlight adjustable
• Resolution: Selectable from 4 to 5 1/2 digits
• Communications: WIKA-Wireless
• Pressure Unit: Psi, bar, mbar, kg/cm2, inH2O, ftH2O, cmH2O, mH2O, kPa, MPa, inHg, mmHg, TORR, etc.
• Ingress Protection: IP65
• Weight: 1.5lbs
• Dimensions: 3.9 x 5.9 x 2.3in

Wika CPG1500 Applications

• Oil and gas industry
• Maintenance and service facilities
• Calibration service companies and service industry
• Simple calibrations directly on site

Wika CPG1500 Special Features

• Measuring ranges up to 0 ... 1,000 bar (0 ... 15,000 psi) (vacuum and absolute pressure ranges also available)
• Accuracy: Up to 0.05 % (NIST Calibration Certificate included)
• Data Logger function
• Intrinsically safe version
• Logger function with up to 50 measured values per second
• Communication with WIKA-CAL software over WIKA-Wireless
• Rug protective cap available
