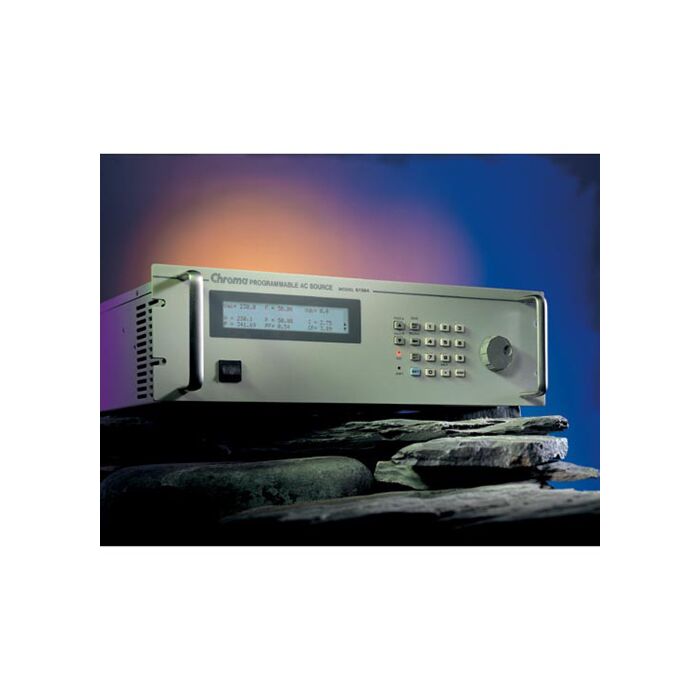

Chroma 61502 for Rent, Programmable AC Source, 300V DC, 15 to 1KHz; 1kVA
Programmable AC Source 300V DC/15 to 1KHz; 1kVA
Order #: 61502-RENT2
Mfg #: 61502
Call for price
Call for price
Chroma 61502 for Rent, Programmable AC Source, 300V DC, 15 to 1KHz; 1kVA
Programmable AC Source 300V DC/15 to 1KHz; 1kVA
Order #: 61502-RENT2
Mfg #: 61502
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Chroma 61502 Highlights
- Power: 500VA (61501) / 1500VA (61503) / 2000VA (61504) / 4000VA (61505)
- Voltage range: 0-150V/0-300V/Auto
- Compact size and weight attributable to advance PWM technology
- AC+DC output mode for voltage DC offset simulation
- Programmable slew rate setting for changing voltage and frequency
- Low output impedance for testing IEC 61000-3-2 (61505)
- Programmable output impedance for testing IEC 61000-3-3
- LIST, PULSE, STEP mode function for testing power line disturbance (PLD) simulation capability
- IEC 61000-4-11 voltage dips, short and variation simulation
- Harmonics, inter-harmonics waveform synthesizer for testing IEC 61000-4-13
- Programmable voltage, current limit
- Comprehensive measurement capability, including current harmonics
- High output current crest factor, ideal for inrush current testing
- Turn on, turn off phase angle control
- TTL signal which indicates output transient
- Analog programmable interface
- 3 units combined to 3-phase power output
- Easy-use software for operation and IEC regulation test
- Optional GPIB and RS-232C interface
- With Remote Interface Board External V Input, GPIB, RS-232, Analog (A615001)
