Order #: 62150H-1000S-USED
Mfg #: 62150H-1000S

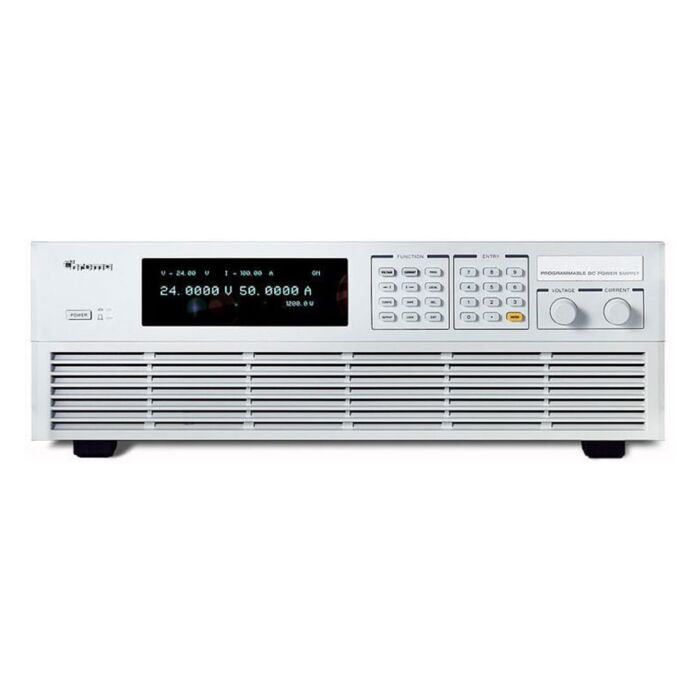

Used Chroma 62150H-1000S Solar Array Programmable DC Power Supply, 1kV/15A/15kW
Order #: 62150H-1000S-USED
Mfg #: 62150H-1000S
![Used Chroma 62150H-1000S Solar Array Programmable DC Power Supply, 1kV/15A/15kW](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
![Used Chroma 62150H-1000S Solar Array Programmable DC Power Supply, 1kV/15A/15kW](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/Magento_Catalog/images/product/placeholder/brand_logo.jpg)
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
The Chroma 62150H-1000S Solar Array Simulation DC Power Supply 1000 Volts, 15 Amps, 15 kW offers many unique advantages for telecom, automated test system & integration, industrial, battery charge & simulation for hybrid cars and solar panel simulation. These advantages include high power density of 15KW in 3U, precision readback of output current and voltage, output trigger signals as well as the ability to create complex DC transient waveforms to test device behavior for spikes, drops, and other voltage deviations. The 62150H-1000S is very easy to operate either from the front panel keypad or from the remote controller via USB / RS232 / RS485 / APG (Standard) and GPIB & Ethernet (optional). Its compact size with 3U only can be stacked on a bench in a standard rack without any difficulty.
- Volts: 0-1000V
- Current: 0-15A
- Power: 15 kW
- Precision V & I measurements
- Auto I-V program: 100 I-V curves & Dwell time 1-15,000s
- Static & dynamic MPPT efficiency test (accumulated energy methods)
- Data recorded via softpanel
- Standard USB/RS232/RS485 interface
- Optional GPIB/Ethernet interface
- Real time analysis of PV inverter’s MPPT tracking via softpanel
- Real world weather simulation fast I-V curve update rate: 1s
- Support up to six-channel SAS control for multi-MPPT testing
- Build-in dynamic MPPT test profile of EN50530, Sandia, CGC/GF004 and NB/T 32004
-
