Dionamix UV-3560

Product Highlights

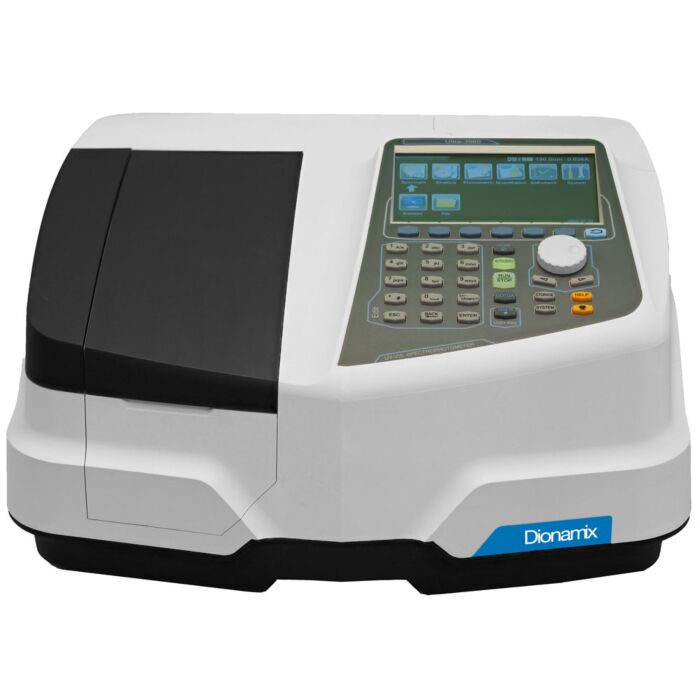

The Dionamix UV-3560 Spectrophotometer employs a Single Beam UV-Vis light path design with wavelength ranges of 0.5/1/2/4 nm. The Ultra-3000 series includes Spectrum, Kinetics, Photometric and Quantitation measurement modes with easy setup of measurement parameters and processing the results, simplifying bio-analytical test methods.

The UltraUV Workstation PC Software is easy to use yet powerful enough to meet the needs of sophisticated research analysis methods. The user interface breaks the measurement process into three easy to follow steps, Analysis Method, Measurement Operation and Results Processing and Reporting. The UltraUV workstation software is GLP/GMP compliant. It ensures data authenticity with built-in user account access controls, audit trail and use of encrypted data.

Key Features

• Single beam, ultra low stray light path design
• High resolution with versatile spectral bandwidth selection
• Versatile Absorbance, Transmittance and Energy measurements with Spectrum, Kinetics, Photometric and Quantitation measurement modes
• 7" color display with water resistant keyboard
• USB storage and printing and PC vontrol with UltraUV workstation software
• UltraUV workstation software GMP/GLP compliant used for analysis, data archive and reporting

Key Performance Specifications

• Ultra-low stray light ≤0.03%
• Wavelength range 190nm ~ 1100nm with accuracy of ±0.3nm
• 0.5nm optical resolution with 4 options of spectral bandwidth 0.5/1/2/4 nm
• Photometric Range 3.5 Abs
• Transmittance accuracy ±0.3%T and Baseline flatness ±0.0008Abs
