Emerson TREXLFPNA9S3 Device Communicator PLUS with HART & Fieldbus, IS, 3 Year Standard Support
Device Communicator PLUS w/HART & Fieldbus, IS, 3 yr Standard

Order #: TREXLFPNA9S3

Mfg #: TREXLFPNA9S3

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $11,319.30 Regular Price $13,058.00

Emerson TREXLFPNA9S3 Device Communicator PLUS with HART & Fieldbus, IS, 3 Year Standard Support

Device Communicator PLUS w/HART & Fieldbus, IS, 3 yr Standard

Order #: TREXLFPNA9S3

Mfg #: TREXLFPNA9S3

Special Price $11,319.30 Regular Price $13,058.00
limited time, save 15% or more off of disaster recovery toolslimited time, save 15% or more off of disaster recovery tools

Problems with Foundation Fieldbus and HART devices can be diagnosed in the field while the devices are still installed. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive, invasive physical investigation of the problem. Configure yours below.

Emerson AMS TREX Device Communicator Options Worksheet
Emerson AMS TREX Device Communicator Datasheet
Emerson AMS Trex Device Communicator User Manual
Emerson AMS Trex Device Communicator Quick Start Guide
Have trouble finding what you're looking for? Configure your TREX Now!

Availability: Ships in 3-4 weeks

Emerson TREX Highlights

  • L - Device Communicator Plus communication module - Includes additional Lead Set with connectors.
  • F - HART + Foundation Fieldbus Applications - Includes Foundation Fieldbus Power Plug when ordered with Device Communicator Plus communication module (L).
  • P - Rechargeable Li-Ion Power Module
  • NA - No Approval
  • 9 - No Radio Option
  • S3 - Standard Support (3 Year) - Includes technical support and software updates.

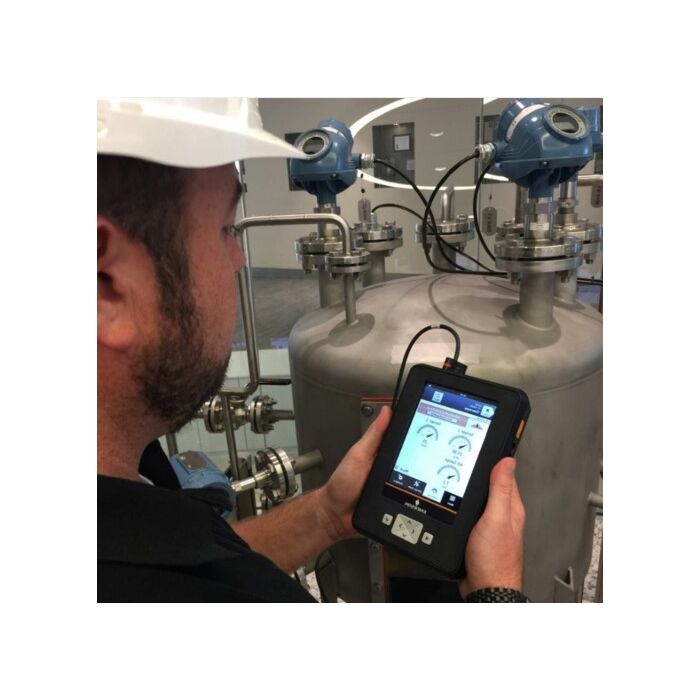

  • Quickly fix issues in the field with advanced device diagnostics
  • Configure and test valves inline
  • Improve efficiency with a modern, intuitive user interface
  • Software updates can be downloaded. See PDF in the technical resources tab for more information

Each TREX Includes

  • AC Adapter
  • USB Cable
  • Lead Set with connectors
  • Hand Strap
  • Quick Start Guide
  • ValveLink Mobile application available at no charge once Trex unit is activated

Available Apps

The Trex communicator includes Upgrade Studio, a PC application to help keep the Trex unit up-to-date with new software and apps.

With Upgrade Studio, add critical diagnostic tools to your toolkit and push them out to any number of Trex communicators. With multiple apps available and many more in development, Upgrade Studio will make the Trex communicator your go-anywhere, do-anything device:

  • Field Communicator - The Field Communicator app delivers a wide range of options for configuring and troubleshooting HART and Foundation Fieldbus devices.

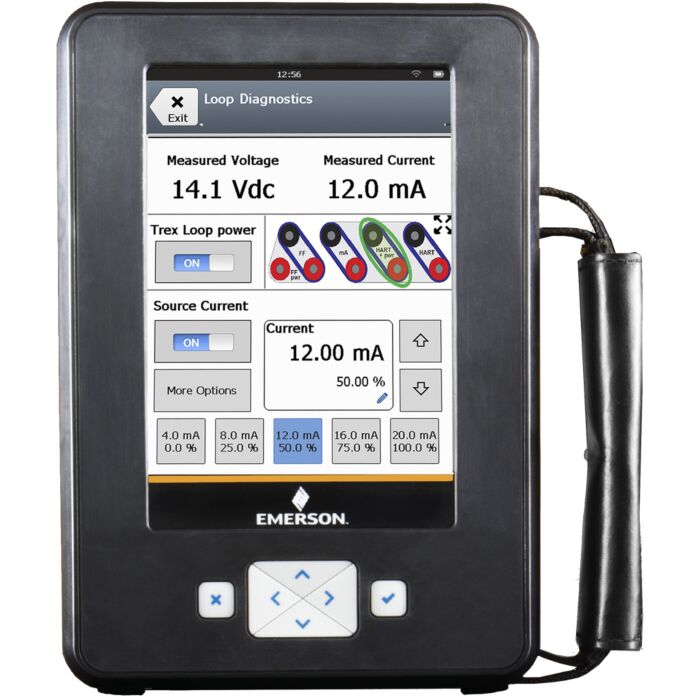

  • Loop Diagnostics - With the Loop Diagnostic app, you can power the loop in the field and also perform loop troubleshooting and checkouts. The app helps with loop characteristic validation and lets you isolate and troubleshoot wiring issues.
  • Fieldbus Diagnostics - The Fieldbus Diagnostics app gives you the necessary toolset for troubleshooting and validating Foundation Fieldbus segments.
  • WirelessHART Provisioning - The WirelessHART Provisioning app allows you to provision wireless networks in less time, with less chance of error and in a more secure fashion. The app can configure hundreds of devices with a push of a button, improving accuracy and allowing you to provision an entire network up to 6x faster.
  • Radar Master - The Radar Master app enables you to ensure the measurement and configuration accuracy of your Rosemount radar level transmitters by bringing the power of Radar Master software to the field. Use dynamic graphics to verify configurations while protecting the safety of your personnel and assets.
  • ValveLink Mobile - With Valvelink Mobile, you can analyze and review valve assembly condition and performance without affecting the process. Configuration and troubleshooting of digital valve controllers has never been more efficient.
  • Calculator - The Calculator app for AMS Trex includes a simple calculator, conversion calculator for base conversions, loop convertor/Ohm's law calculator, and unit converter for engineering units.
  • Trex Help - The Trex Help app offers a searchable help guide, putting key information on operation and troubleshooting at your fingertips.
  • PDF Viewer - Transfer PDF files to AMS Trex to easily access manuals, work processes, notes, and any other PDFs in the field.
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Emerson TREX-0002-1211
    Emerson TREX-0002-1211
    TREX Spare Battery Li-Ion Power Module

    Order #: TREX-0002-1211

    Mfg #: TREX-0002-1211

    Availability:
    In stock
    Special Price $1,165.50 Regular Price $1,295.00
  2. Emerson TREX-0003-0012 TREX AC Power Adapter (includes  US, EU, UK, AU outlet plugs)
    Emerson TREX-0003-0012
    TREX AC Power Adapter (includes US, EU, UK, AU outlet plugs)

    Order #: TREX-0003-0012

    Mfg #: TREX-0003-0012

    Availability:
    In stock
    Special Price $351.00 Regular Price $390.00
  3. Emerson TREX-0003-0022
    Emerson TREX-0003-0022
    TREX DC Power Adapter (12v vehicle accessory outlet)

    Order #: TREX-0003-0022

    Mfg #: TREX-0003-0022

    Availability: Ships in 3-4 weeks
    Special Price $405.00 Regular Price $450.00
  4. Emerson TREX-FFPA-0001 Power Plug for Foundation Fieldbus
    Emerson TREX-FFPA-0001
    Power Plug for Foundation Fieldbus

    Order #: TREX-FFPA-0001

    Mfg #: TREX-FFPA-0001

    Availability: Ships in 3-4 weeks
    Special Price $128.70 Regular Price $143.00
  5. Emerson TREX-0004-0001 Lead Set with Connectors
    Emerson TREX-0004-0001 Lead Set with Connectors for the TREX Communicator
    Lead Set with Connectors for TREX

    Order #: TREX-0004-0001

    Mfg #: TREX-0004-0001

    Availability:
    In stock
    Special Price $144.00 Regular Price $160.00
  6. Emerson TREX-0005-0002 TREX Hand Strap, Replacement
    Emerson TREX-0005-0002
    TREX Hand Strap, Replacement Set of Two

    Order #: TREX-0005-0002

    Mfg #: TREX-0005-0002

    Availability: Ships in 3-4 weeks
    Special Price $89.10 Regular Price $99.00
  7. Emerson TREX-0005-0011 TREX Carrying Case
    Emerson TREX-0005-0011
    TREX Carrying Case, includes Hand & Shoulder Straps

    Order #: TREX-0005-0011

    Mfg #: TREX-0005-0011

    Availability:
    In stock
    Special Price $220.50 Regular Price $245.00
  8. Emerson TREX-0005-0009
    Emerson TREX-0005-0009
    Replacement Strap for TREX Carrying Case

    Order #: TREX-0005-0009

    Mfg #: TREX-0005-0009

    Availability: Ships in 3-4 weeks
    Special Price $87.30 Regular Price $97.00
  9. Emerson TREX-0005-0004 TREX Magnetic Hanger
    Emerson TREX-0005-0004
    TREX Magnetic Hanger

    Order #: TREX-0005-0004

    Mfg #: TREX-0005-0004

    Availability:
    In stock
    Special Price $87.30 Regular Price $97.00
  10. Emerson TREX-0004-0002 USB Cable, USB to microUSB
    Emerson TREX-0004-0002
    USB Cable, USB to microUSB

    Order #: TREX-0004-0002

    Mfg #: TREX-0004-0002

    Availability: Ships in 3-4 weeks
    Special Price $63.00 Regular Price $70.00
  11. Emerson TREX-PMDC-1211 Device Communicator HART/FF
    Emerson TREX-PMDC-1211
    Device Communicator HART/FF Module

    Order #: TREX-PMDC-1211

    Mfg #: TREX-PMDC-1211

    Availability: Ships in 3-4 weeks
    Special Price $2,250.00 Regular Price $2,500.00
  12. Emerson TREX-PMDP-1211 Device Communicator Plus Module
    Emerson TREX-PMDP-1211
    Device Communicator Plus Module

    Order #: TREX-PMDP-1211

    Mfg #: TREX-PMDP-1211

    Availability:
    In stock
    Special Price $3,537.00 Regular Price $3,930.00
  13. Emerson TREX-0045-0001 TREX Quick Start Guide
    Emerson TREX-0045-0001
    TREX Quick Start Guide

    Order #: TREX-0045-0001

    Mfg #: TREX-0045-0001

    Availability: Ships in 3-4 weeks
    Special Price $45.00 Regular Price $50.00
Processor, Memory, and Operating System
Microprocessor 800 MHz ARM Cortex A8 / NXP
Memory Internal Flash 2 GB NAND and 32 GB extended flash
Operating System Windows Embedded Compact 2013
RAM 512 MB DDR3 SDRAM
Physical
Weight Approximately 2.9 lbs (1330 grams)
Display 5.7 inch (14.5 cm) color VGA resistive touchscreen
Keypad X button – similar to a Back key

Cables included with U.S., Europe, and U.K. plugs

Power Supply / Charger
Battery Rechargeable Lithium-Ion power module
Battery Operating Time 8+ hours of typical use
Charge Time 3 to 4 hours
LEDs 6 LEDs. Five LEDs for indicating the progress of charging. One LED to indicate the AC adapter is charging the power module.
Battery Charger Options Input voltage 90-264 VAC, 47-63 Hz
Connections
USB Micro USB Connector. USB 2.0
Remove the USB cable from the Trex unit before connecting to a device.
Battery Charger Barrel Round Plug Tip

>

Wireless
Wireless Approvals FCC, CE, RED and IC Approvals, Certified for use in over 100 countries
Bluetooth 2.1, Range up to 10 m
Wi-Fi 802.11 b/g, Range up to 33 m
NFC Active NFC, Range up to 20 cm
Communication Modules
Device Communicator Communication Module HART terminal Enables HART device communication
Connectors: Two Banana Jack Plugs
Optional Internal Resistor: 250 or 500 Ohm
Fieldbus (FF) terminal Foundation Fieldbus device communication
Connectors: Two Banana Jack Plugs
Device Communicator Plus Communication Module HART terminal, Enables HART device communication
HART + power terminal Enables HART communication with the Trex unit, and provides power to one HART device in a bench setup.
Connectors: Two Banana Jack Plugs Includes HART power supply, resistors (167 Ohm), current control, and ammeter. Current Range: 3 -22.5 mA
mA terminal (external ammeter)
Measures current on a 4-20 mA current loop.Connectors: Two Banana Jack Plugs. Current Range: Up to 22.5 mA. Resolution: 0.1 mA
Fieldbus (FF) terminal
Enables Foundation Fieldbus device communication. Connectors: Two Banana Jack Plugs
FF + FF power terminal
Provides power to one Foundation Fieldbus device in a bench setup. Connector: One Banana Jack Plug (Power conditioner included). Current Range: 0- 38 mA
Environmental
Usage -20°C to +55°C (-4°F to 131°F). For IS approval: -20°C to +50°C (-4°F to 122°F)
Charge +10°C to +45°C (50°F to 113°F)
Storage with power module -20°C to +50°C (-4°F to 122°F) (less than 1 month)
Storage without power module -20°C to +60°C (-4 °F to 140°F)
Enclosure Rating IP54
Shock The unit shall survive a 1-meter, all sides and corners drop test onto concrete.
Upgrade Studio Requirements
Installation Windows 7 Professional Service Pack (SP1) 1 (32 and 64-bit)
Windows 10 Professional
512 MB of free disk space
A Windows user account with Administrator privileges
