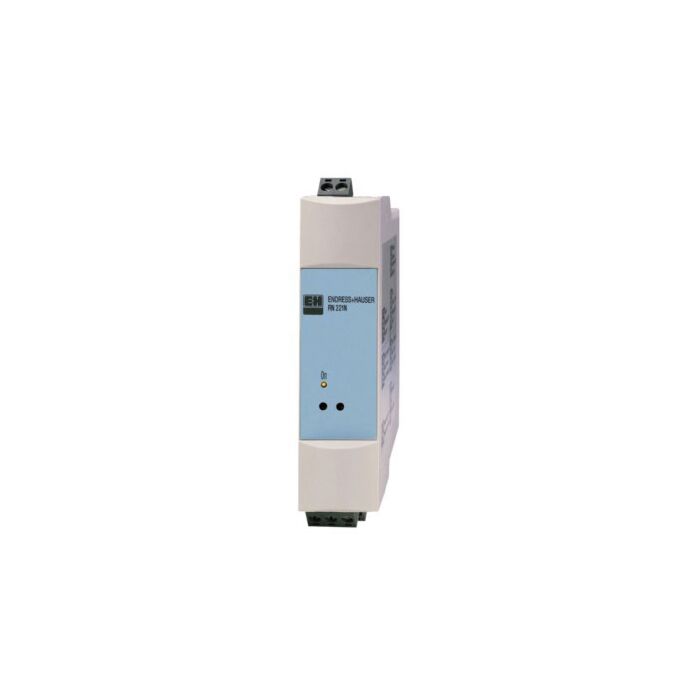

The Endress+Hauser RN221N Active Barrier with Optional HART Diagnosis
Endress+Hauser RN221N Active Barrier with Optional HART Diagnosis
Order #: Endress+Hauser RN221N Active Barrier Optional HART Diagnosis
The Endress+Hauser RN221N Active Barrier with Optional HART Diagnosis
Endress+Hauser RN221N Active Barrier with Optional HART Diagnosis
Order #: Endress+Hauser RN221N Active Barrier Optional HART Diagnosis
The active barrier RN221N supplies e.g. a transmitter with power, if required also in the Ex-area, and then transmits the galvanically isolated signal. With the optionally available HART® monitoring the status of the transmitter is monitored. If an error arises a relay at the RN221N sends an alarm. The relay has to be actively set back. Thus even just briefly occurring errors can be easily located.
Availability: Ships in 2-3 Weeks
Product Highlights
- Wide range power supply, flexible power source
- Compact side by side DIN rail housing
- International Ex approvals, Germanischer Lloyd / marine approval
- Bidirectional HART® transmission. Communication sockets for HART® sensor setting up. Evaluation of status information from connected transmitter with HART® protocol.
- Primary or secondary master operating mode, automatic selection
- Sensor monitoring with early-warning system
- Manual or automatic reset of the relay contact
Field of Application
- Galvanic isolation of 4 to 20 mA current circuits
- Removing large loop circuits
- Powering 2 wire transmitters
- Monitoring of SMART transmitters with early-warning system
- Intrinsically safe sensor supply for Ex-area
Acquisition / Evaluation | |
---|---|
Measuring Principle | Resistance Temperature Detector |
Function | Active barrier with power supply for safe seperation of 4...20 mA current circuit |
Certification | ATEX II(1)GD(Ex ia)IIC FM USA IS FM USA NI CSA IS CSA NI IECEx Ex ia TIIS Ex ia GOST Ex i GL ship approval SIL Hygenic WHG |
Input | 1 x analog 4...20 mA |
Output | 1 x analog 4...20 mA |
Relay output | 1 x no contact |
Auxiliary power supply / Loop power supply | 20...250 V DC/AC |
Dimensions (wxhxd) | 22.5 x 110 x 112 mm (0.89" x 4.33" x 4.41") |
Operation | HART |
Thermometer | |
---|---|
Measuring Principle | Resistance Temperature Detector |
Characteristic / Application | Active barrier with power supply for safe seperation of 4...20 mA current circuit. |
Ex - approvals | ATEX Ex i FM USA IS FM USA NI CSA IS CSA NI IECEx Ex ia TIIS Ex ia NEPSI Ex ia |
Certification | GOST Ex i Germanischer Lloyd / marine approval SIL Hygenic WHG |
