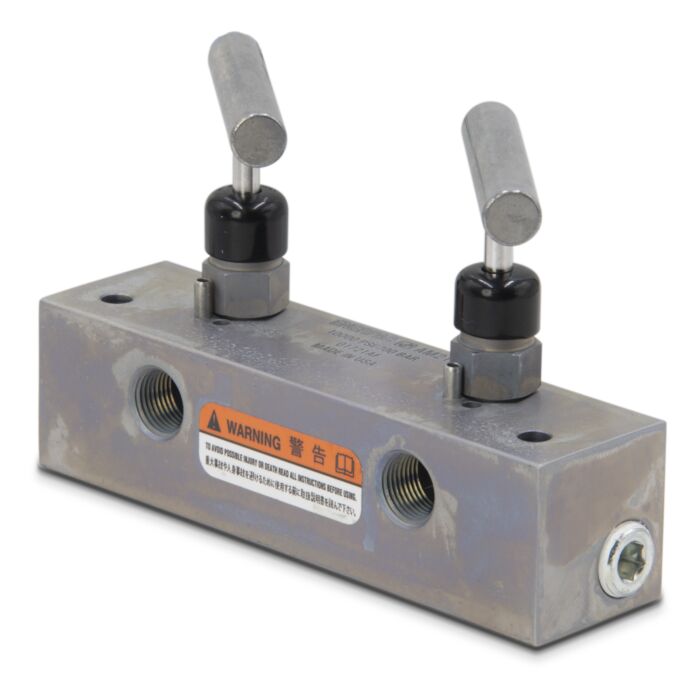

Enerpac AM-21 Manifold Valve, 2-Way
Manifold Valve,2-Way
Order #: AM21
Mfg #: AM-21
$829.00
Enerpac AM-21 Manifold Valve, 2-Way
Manifold Valve,2-Way
Order #: AM21
Mfg #: AM-21
Product Highlights
Split Flow Hydraulic Manifold, 1 inlet, 2 outlet ports
AM-Series hydraulic manifolds can be used to split the flow from a single inlet port to 2 or 4 outlet ports. The integral needle valve handles on each port are used to switch the flow on or off.
All ports connections are 3/8"-18 NPTF and both models have a maximum operating pressure of up to 10,000 psi (700 bar).
AM21 has 2 outlets
AM41 has 4 outlets
- Functions as split-flow valve to control single-acting cylinders simultaneously
- Handle used to open and close each port
- Easy to connect
- Mounting holes on all models
- All ports 3/8"-18 NPTF.
- Maximum pressure up to 10,000 psi (700 bar)
| Number of Inlet Ports | 1 |
| Number of Outlet Ports | 2 |
| Number of Regulated Outlet Ports | 2 |
| Oil Ports | 3/8" NPTF |
| Maximum Operating Pressure (psi) | 10,000 |
