Enerpac LW16 Vertical Lifting Wedge, 0.83 in Lifting Height, 16 Ton
Order #: LW16
Mfg #: LW16

Product Highlights
16 Ton, Vertical Lifting Wedge, 0.83 in Lifting Height
Choose the LW-Series Vertical Lifting Wedge when you need to lift and lower heavy loads of up to 16-tons with a stable motion without slippage. A minimum insertion gap of 0.39" (10 mm) is needed which expands up to 2.02" (51.5 mm). Retraction force is supplied by the single-acting spring return cylinder. The maximum operating pressure is (10000 psi 700 bar).
The included SB2 stepped safety block provides reassuring support, and can also be used to increase the lifting height to 2.72" (69 mm). The LWB1 is a larger stepped block available as an option.
A compatible hydraulic pump is needed to operate the LW16. The Enerpac P392 Hand Pump, or the P392FP Foot Pump are ideal.
Alternatively, choose the LWC16 Vertical Lifting Wedge, which includes an integrated hand pump.
Maximum Operating Pressure (psi) | 10,000 |
Maximum Spread (in) | 0.83 |
Power Source | Hydraulic |
Maximum Lifting Force (ton) | 16 |
Maximum Lifting Force (imperial tons) | 16 |
Spreading Force (imperial tons) | 16 |
Capacity (imperial tons) | 16 |
Capacity (kN) | 157 |
Stroke (in) | 0.83 |
Minimum Clearance Gap (in) | 0.39 |
Maximum Lift Per Stage | 21 |
Maximum Lifting Height (in) | 2.02 |
Maximum Lifting Height Using Stepped Block | 2.72 |
Tip Clearance (in) | 0.39 |
Oil Capacity (in3) | 4.75 |
Weight (lbs) | 31 |
Related Products
-
Fluke T150/PRV240 Voltage/Continuity Tester & voltage source proving unit kitVoltage/Cont Tester & voltage source proving unit kitAs low as $293.69
-
Fluke T5-1000 Voltage, Continuity & Current Tester, 1000VVoltage,Continuity & Current Tester,1000VAs low as $183.99
-
Fluke TP2 Slim-Reach Test Probes, 2mm DiameterSlim-Reach Test Probes, 2mm DiameterAs low as $26.69
-
Fluke Calibration 2700G-BG3.5M/C Reference Pressure Gauge, -12 to 500 PSI with Accredited CalibrationReference Gauge, -12 to 500PSI with Accredited CalibrationAs low as $2,360.00
-

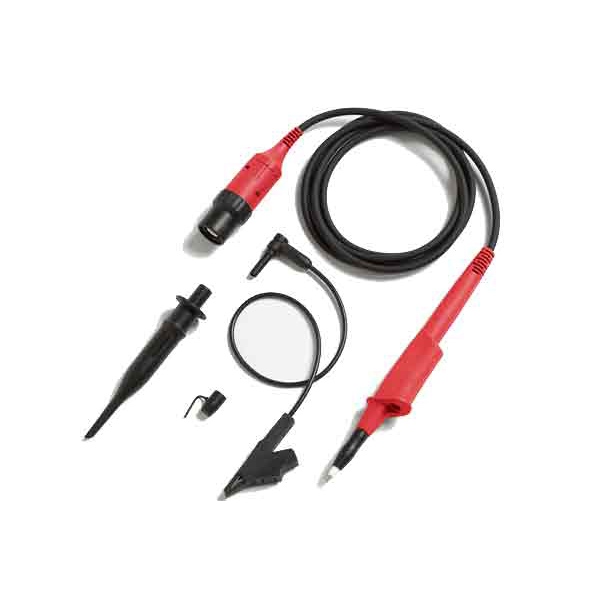

Fluke VPS410-II-R High-Working Industrial ScopeMeter Voltage Probe SetHigh-Working Industrial ScopeMeter Voltage Probe SetAs low as $234.06
-
