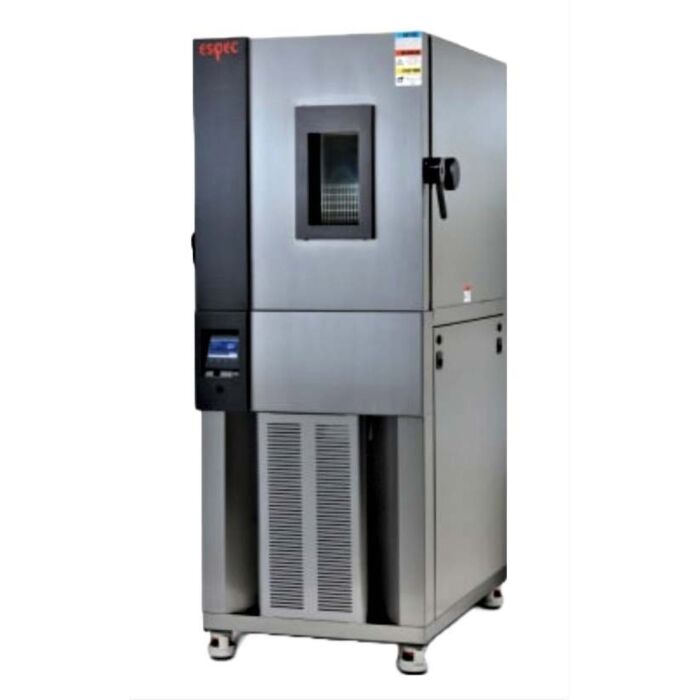

Espec BTZ-4200 for Rent, Temperature Chamber, -70C to 180C, 4 Cubic Feet

Product Highlights

The ESPEC BTZ-4200 takes advantage of compact, modern scroll compressors to bring fast temperature cycling to small form factor. The chamber can cycle temperatures at rates up to 15C/minute without requiring cooling water or liquid nitrogen. Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance. The faster cycle times can be used to meet more aggressive test methods that require thermal stress during transitions.

The BTZ-4200 is based on our space-saving Criterion benchtop series. Its footprint is just 31" x 45". Because it is so small and only requires only electrical utilities, it may be the ultimate portable temperature cycling chamber. Other design features include a stainless steel exterior and interior, full thermal break around doorframe and door, one 2" (50mm) diameter cable port on the left, with an impervious, flexible silicone plug, and easy lift-off service panels.

The faster cycle times can be used to meet more aggressive test methods that require thermal stress during transitions. Significant test time can be saved in completing tests as well.

To demonstrate performance ESPEC uses the international standard IEC 60068 3-5 measured at the supply air. Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance. Your actual cycling results will vary depending on methodology, including the start and end temperatures, and the number of samples loaded.

The BTZ-4200, with the overall footprint being just 31" x 45", is based on our space-saving Criterion benchtop series. Because it is so small and requires only electrical utilities, it may be the ultimate portable temperature cycling chamber.

• Temperature Range: -70 to 180C/-94 to 356F
• Interior Volume: 4 Cu FT/110 Liters
• Average Change Rate: 15C/min -45 to 155C (Empty)
• Air Flow: 200 CFM
• Stainless steel exterior and interior
• Rounded interior corners for easy cleaning
• Full thermal break around door frame and door
• Rotating door latch is easy and secure
• One 2" (50mm) diameter cable port on the left, with an impervious, flexible silicone plug
• Easy lift-off service panels
• Three levels of overheat protection
• Interior Dimensions:(W x D x H) 19.6" x 15" x 23.6" 498 x 381 x 600 mm
• Exterior Dimensions:(W x D x H) 31" x 45" x 67" 788 x 1055 x 1880 mm
• Power: Criterion
• Heat-to-room Peak: 35,000 BTU/Hr.
• Maximum Sound Level: (1 meter away) 76 dBA
• Temperature Fluctuation: (at control sensor) +/-0.5C
• Temperature Gradient:(Uniformity, empty) +/-1.5C (below 100 degrees)C
• Live Load Capacity: 1000W at -40C
• Refrigeration - Type: cascade
• Refrigeration System: Cascade 3hp Scroll
