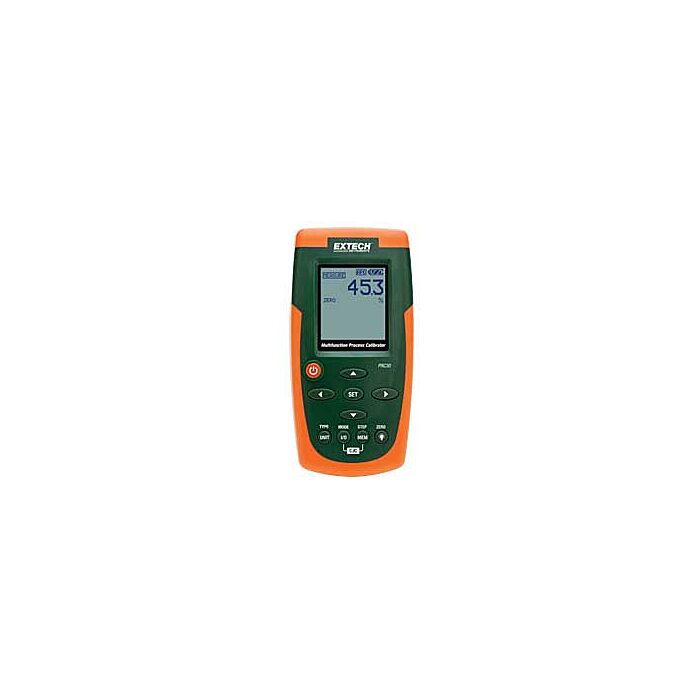

Extech PRC30 Multifunction Process Calibrator
Multifunction Process Calibrator
Order #: PRC30
Mfg #: PRC30
$649.00
Extech PRC30 Multifunction Process Calibrator
Multifunction Process Calibrator
Order #: PRC30
Mfg #: PRC30
$649.00
Availability: Ships in 3-5 days
Product Highlights
- 0 to 24mA (-25 to 125%) readout
- 24V DC power source for 2-wire current loop
- 0 to 20V DC calibration source
- Source and measure 8 thermocouple type devices (J, K, T, E, C, R, S and N)
- CJC - Cold Junction Compensation function
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot matrix backlit LCD
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple connector
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Each Unit Includes
- Test leads
- Alligator clips
- Calibration cables
- 100V-240V AC universal adaptor with 4 plugs
- Six AA batteries
- Hard carrying case
