Order #: T560-24-14
Mfg #: 89009-0101

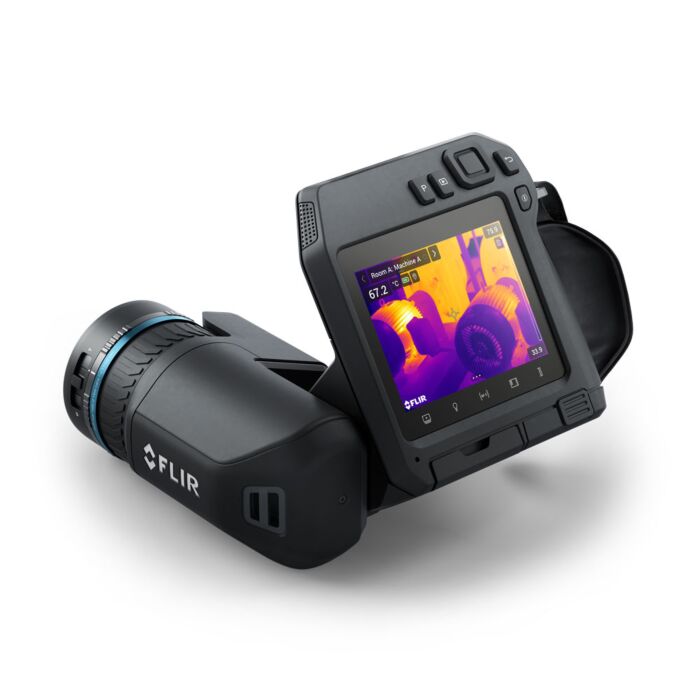

FLIR T560 Thermal Camera with 24 & 14 degree Lens, 640x480, -20C to 1500C
Order #: T560-24-14
Mfg #: 89009-0101
Product Highlights
FLIR T560 w/ DFOV (14° - 24°), 640x480, -20°C to +1500°C, w/ FLIR Thermal Studio PRO and Route creator Plugin(3 months)
Safely diagnose potential faults with a portable, ergonomic FLIR T500-Series thermal camera. Paired with a FLIR FlexView™ dual field-of-view lens, T500-Series cameras give you the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. Streamline industrial, electrical, and mechanical surveys and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro. Record temperature data and imagery in a logical sequence for more efficient troubleshooting and repair scheduling, then upload images directly to the FLIR Ignite cloud for secure storage, sharing, and importing into Thermal Studio.
- Work safely and effectively with our ergonomic tilting optical block and array of lenses designed to meet your application needs, while unique features such as Route Creator, Meterlink & wireless data streaming maximize your efficiency
- FLIR Vision Processing™, MSX®, UltraMax®, Meterlink and industry-leading 2% Accuracy coupled with the unrivalled capabilities of FLIR Mobile, Thermal Studio and Research Studio reporting and analysis software packages provide the ability to confidently make critical decisions.
- Intuitive, on-camera features such as 1-Touch Level & Span, Inspection Routing, Voice, Text & Sketch Annotation, and Laser Auto Focus simplify and streamline workflows.
MAKE CRITICAL DECISIONS QUICKLY
Advanced imaging technology and high sensitivity help professionals make the right call - fast
- Change from wide area scanning to telephoto instantly with the FlexView dual field-of-view lens
- Get industry-leading image clarity from FLIR Vision Processing™ through the power of patented FLIR MSX®, UltraMax®, and proprietary adaptive filtering
- Use the laser distance measurement tool to effortlessly transfer precise object distance data into your reports
- Match the visual camera's field of view with up to 640 x 480 thermal resolution, delivering 307,200 radiometric non-contact temperature measurement points, or up to 1.2 MP using UltraMax resolution enhancement
MAXIMIZE EFFICIENCY, SAFETY, & PERFORMANCE
Assess equipment and prevent component failure safely from any vantage point
- Target overhead components with less strain thanks to the 180° rotating optical block
- Share lenses (wide angle to telephoto) across a fleet of cameras with AutoCal™ optics
- Ensure precision measurement with laser-assisted autofocus and 1-Touch Level/Span
- Make decisions easily with an LCD display that's 33% brighter and 4x the resolution of comparable cameras
TOOLS TO MAKE THE JOB EASIER
Organize findings in the field with built-in navigation and reporting features
- Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen and two programmable buttons
- Streamline inspections by downloading survey routes from FLIR Thermal Studio Pro to the cameras
- Upload and organize images to FLIR Ignite cloud for secure storage, sharing, and importing to reports
- Prepare precise documentation with embedded GPS locations as well as measurement data from METERLiNK®-enabled FLIR clamp meters and multimeters
- FLIR T300587 Lens, IR f=17/29mm DFOV (with bag)Lens IR f=17/29mm DFOV (with bag)
Order #: T300587
Mfg #: T300587
Availability: Ships in 3-4 weeks$3,739.00
Overview | |
---|---|
Color Alarm (Isotherm) | Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation |
Difference Temperature | Yes |
Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
Display Technology | IPS |
Housing material | PCABS with TPE, magnesium |
Laser Alignment | Position is automatically displayed on the infrared image |
Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance |
Packaging Size | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in) |
Programmable Buttons | 2 |
Size (L x W x H) | Lens horizontal: 140 x 201.3 x 167.3 mm (5.5 x 7.9 x 6.6 in) |
Time Lapse [Infrared] | 10 sec to 24 hrs |
Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
Connections & Communications | |
Audio | Microphone and speaker for voice annotation of images |
METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
METERLiNK - Bluetooth | Communication with headset and external sensors |
Remote Control | Using USB cable or Wi-Fi |
Setup Commands | Local adaptation of units, language, date, and time formats |
Storage Media | Removable SD card |
USB | USB Type-C: data transfer/video/power |
USB - Standard | USB 2.0 High Speed |
Video Out | DisplayPort over USB Type-C |
Environmental | |
EMC | ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission) |
Emissivity Correction | Yes, variable from 0.01 to 1.0 or selected from materials list |
Humidity (Operating and Storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Radio Spectrum | ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2 |
Safety | EN/UL/CSA/PSE 60950-1 |
Shock & Vibration & Encapsulation | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1 |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Tripod Mounting | UNC 1/4"-20 |
Imaging & Optical | |
Aspect ratio | 4:3 |
Auto Rotation | Yes |
Camera software update | Using USB cable or SD card |
Color | Black |
Color Depth | 24 |
Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
Detector Type and Pitch | Uncooled microbolometer, 12 µm |
Digital Camera | 5 MP, with built-in LED photo/video lamp |
Digital Camera Focus | Fixed |
Digital Camera FOV | 53° x 41° |
Digital Zoom | 1–8x continuous |
Field of View | 14° x 10° or 24° x 18° |
Field of view match | Yes |
f-number | 1.5 (14° lens) or 1.3 (24° lens) |
Focal Length | 29 mm/1.41 in (14° lens), 17 mm/0.67 in (24° lens) |
Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
Frame Rate [Full Window] | 30 Hz |
Gallery | Yes |
Global Positioning System [GPS] | Location data automatically added to every still image and first frame in video from built-in GPS |
Image Adjustment | Automatic, automatic maximum, automatic minimum, manual |
Image Frequency | 30 Hz |
Image Sketch | From touchscreen, on infrared image only |
Lens | 14° and 24° |
Lens Identification | Automatic |
Minimum Focus Distance | 1.0 m/3.28 ft (14° lens), 0.15 m/0.49 ft (24° lens) |
Minimum Focus Distance with MSX | 1.0 m/3.28 ft (14° lens), 0.5 m/1.64 ft (24° lens) |
Non-Radiometric IR or Visual Video | H.264 to memory card |
Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
Picture-in-Picture | Resizable and movable |
Radiometric IR video recording | Real-time radiometric recording (.csq) |
Radiometric IR video streaming | Over UVC |
Spatial resolution (IFOV) | 0. 4 mrad/pixel (14° lens), 0.7 mrad/pixel (24° lens) |
Spectral Range | 7.5 - 14 µm |
Thermal Sensitivity/NETD | <50 mK @ 30°C/86°F (14° lens), <40 mK @ 30°C/86°F (24° lens) |
UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
Video Lamp | Built-in LED light |
Viewfinder | No |
Viewing Angle | 80° |
Visual Image | Yes |
Visual Video Recording | H.264 to memory card |
Visual Video Streaming | Yes |
Measurement & Analysis | |
Accuracy | ±2°C (±3.6°F) or ±2% of reading |
Area measurement information | Yes |
Automatic hot & cold detection | Automatic maximum/minimum markers within area |
Languages | 21 |
Laser Distance Meter | Yes; dedicated button |
Measurement Corrections | Yes |
Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
Measurement Presets | No measurements, center spot, hot spot, cold spot. User Preset 1, User Preset 2 |
Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
Reference Temperature | Yes |
Spotmeter and Area | 3 ea. in live mode |
Meter Data | |
Cover Glass Material | Dragontrail® |
Other | |
Touch Screen | Optically bonded PCAP |
Physical | |
Weight [battery included] | 1.4 kg (3.1 lb) |
Power | |
Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
Battery size (L x W x H) | 59 x 66 x 94 mm (2.3 x 2.6 x 3.7 in) |
Battery Type | Li-ion battery, charged in camera or on separate charger |
Battery voltage | 3.6 V |
Battery weight | 195 g (6.89 oz) |
Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
Charging Temperature | 0°C to 45°C (32°F to 113°F) |
Charging Time (using two-bay charger) | 3.5 h to 90% capacity, on-screen indicator |
External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional) |
Power Management | Automatic shut-down and sleep mode |
Shipping Information | |
Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
Storage Media | |
Image File Format | Standard JPEG with measurement data included |
Thermal Imaging | |
Detector Resolution | 640 x 480 |
