Order #: T865-24-14-42
Mfg #: 89206-0201

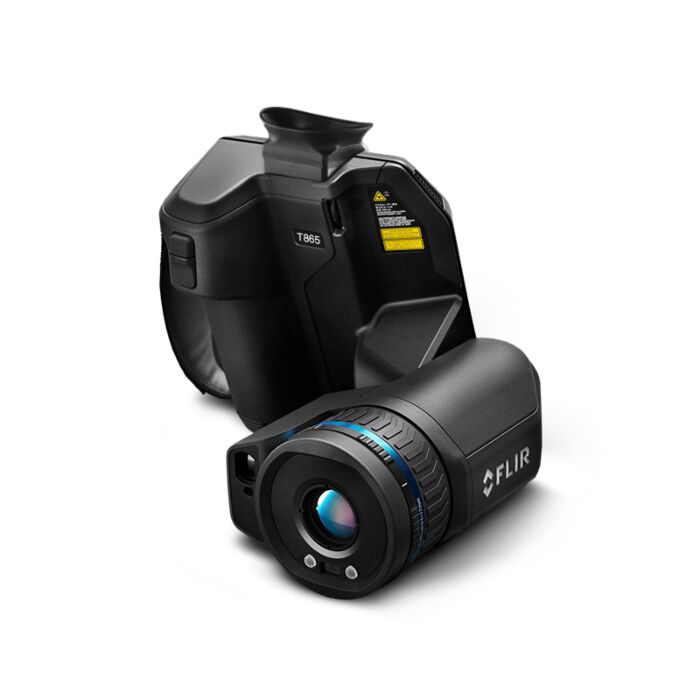

FLIR T865 Thermal Camera with 24, 14 & 42 degree Lens, 640x480, -40C to 2000C
Order #: T865-24-14-42
Mfg #: 89206-0201

Product Highlights
The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you'll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
- IR Resolution: 640 × 480 pixels
- Thermal Sensitivity/NETD: <40 mK @ 30°C (24° lens)
- Accuracy: ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)
- Digital Camera: 5 MP, with built-in LED photo/video lamp
- Display: 4", 640 ×480 pixel touchscreen LCD with auto-rotation
- Storage Media: Removable SD card
Each Unit Includes
- Power supply for battery charger
- Power supply, 15 W/3 A
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable
- USB Type-C to HDMI and PD adapter
- USB Type-C to USB Type-C cable (USB 2.0 standard)
- Accessory box II:
- Lens cap strap
- Lens cleaning cloth
- Neck strap
- Battery (2 ea)
- Battery charger
- FLIR Thermal Studio Pro + Route Creator Plugin license card(3 months)
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear (only for extra lenses)
- Extra lens: 42 °
Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.
Overview | |
---|---|
Display | 4", 640 x480 pixel touchscreen LCD with auto-rotation |
Laser Pointer | Yes |
Programmable Buttons | 2.0 |
Text | Predefined list or touchscreen keyboard |
Time Lapse | 10 sec to 24 hrs |
Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
Weight & Dimensions (without lens) | 1.3 kg (2.9 lb), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in) |
Connections & Communications | |
Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
METERLiNK | Yes |
Storage Media | Removable SD card |
Video Out | DisplayPort over USB Type-C |
Environmental | |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Safety | EN/UL/CSA/PSE 60950-1 |
Shock & Vibration & Encapsulation | 25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6), IP54 (IEC 60529) |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Imaging & Optical | |
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Type and Pitch | Uncooled microbolometer, 12 µm |
Digital Camera | 5 MP, with built-in LED photo/video lamp |
Digital Zoom | 1-8x continuous |
f-number | 1.5 |
Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
Global Positioning System [GPS] | Automatic image tagging |
Image Frequency | 30 Hz |
Image Sketch | From touchscreen, on infrared image only |
IR Resolution | 640 x 480 pixels |
Lens Identification | Automatic |
Minimum Focus Distance | 1.0 m |
Non-Radiometric IR or Visual Video | H.264 to memory card |
Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
Picture-in-Picture | Resizable and movable |
Radiometric IR video recording | Real-time radiometric recording (.csq) |
Radiometric IR video streaming | Yes, over UVC |
Spectral Range | 7.5 - 14.0 µm |
Thermal Sensitivity/NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
UltraMax | Quadruples pixel count; activated in menu and processed in FLIR reporting software. |
Viewfinder | Yes |
Measurement & Analysis | |
Accuracy | ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F), ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens |
Area measurement information | Yes; calculates area inside measurement box in m² or ft² |
Laser Distance Meter | Yes; dedicated button |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Object Temperature Range | -40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F) |
Spot Meter | 10 ea. in live mode |
Power | |
Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
Battery Type | Li-ion battery, charged in camera or on separate charger |
Shipping Information | |
Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
Storage Media | |
Image File Format | Standard JPEG with measurement data included |
Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
