Order #: 65164MM
Mfg #: 2538790

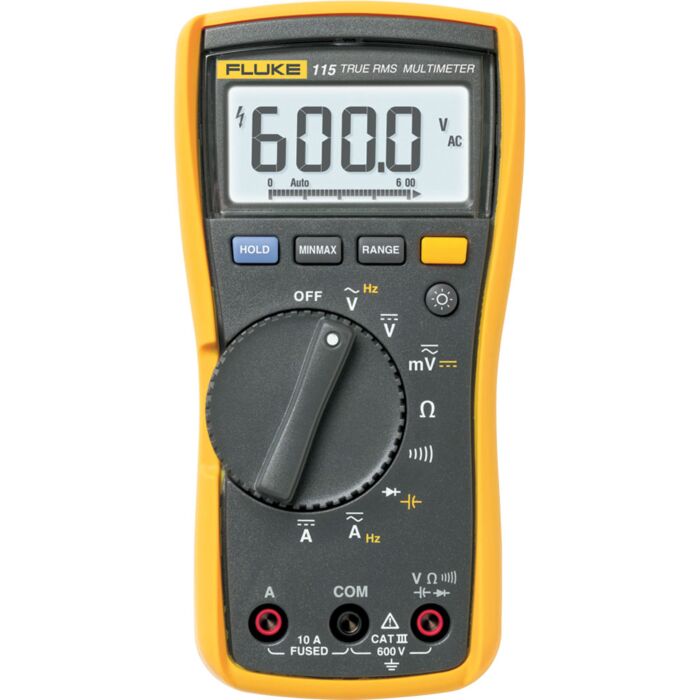

Fluke 115 True-RMS Multimeter
Order #: 65164MM
Mfg #: 2538790
Overview
The Intelligently Designed Solution for Field Service Technicians
With its simple operation, compact design and ease of use, the Fluke 115 True RMS digital multimeter provides the perfect answer for general purpose electrical and electronic test requirements. The Fluke 115 displays True RMS voltage and current readings with 600 count resolution, continuity and capacitance, making it perfect for quick verifications and field service use.
Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V Environments.
Product Highlights
- Resistance, continuity, frequency, capacitance, and diode test
- Measures 10 A (20 A overload for 30 seconds)
- Large white LED backlight to work in poorly lit areas
- Compact ergonomic design for one-handed operation
- Compatible with optional magnetic hanger (ToolPak™)
- True-rms for accurate measurements on non-linear loads
- Min/Max/Average with elapsed time to record signal fluctuations
- CAT III 600 V safety rated
Each Unit Includes
- Holster
- Installed 9 V battery
- TL 75 Test leads
- User manual
Webinars
- Fluke C25 Soft Carrying Case for Fluke MetersSoft Carrying Case for Fluke Meters
Order #: C25
Mfg #: 681114
Availability:In stockSpecial Price $45.64 Regular Price $54.99 - Fluke C115 Soft Carry Case with Shoulder StrapSoft Carry Case w/Shoulder Strap
Order #: C115
Mfg #: 2826063
Availability: Ships in 1-2 weeksSpecial Price $45.64 Regular Price $54.99 - Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability: Ships in 4-6 weeksSpecial Price $38.17 Regular Price $45.99 - Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability: Ships in 3-4 weeksSpecial Price $91.29 Regular Price $109.99 - Fluke TLK289 Industrial Master Test Lead SetIndustrial Master Test Lead Set
Order #: TLK289
Mfg #: 3045646
Availability:In stockSpecial Price $199.19 Regular Price $239.99 - Fluke PRV240 Battery-powered voltage source proving unitBattery-powered voltage source proving unit
Order #: PRV240
Mfg #: 4566209
Availability: Call for availabilitySpecial Price $167.79 Regular Price $199.99 - Fluke 80PK-10 Pipe Clamp Temperature ProbePipe Clamp Temperature Probe
Order #: 80PK-10
Mfg #: 3439199
Availability: Ships in 1-2 weeksSpecial Price $278.87 Regular Price $335.99 - Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $174.29 Regular Price $209.99 - Fluke TL71 Premium Test Lead SetPremium Test Lead Set
Order #: TL71
Mfg #: 1274382
Availability: Ships in 1-2 weeksSpecial Price $36.51 Regular Price $43.99 - Fluke CXT170 Rugged Pelican Hard CaseRugged Pelican Hard Case
Order #: CXT170
Mfg #: 3352567
Availability:In stockSpecial Price $219.94 Regular Price $264.99 - Fluke TL81A Deluxe Electronic Test Lead KitDeluxe Electronic Test Lead Kit
Order #: TL81
Mfg #: 1277073
Availability:In stockSpecial Price $180.10 Regular Price $216.99 - Fluke Toolpak Meter Hanging KitMeter Hanging Kit
Order #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $46.13 Regular Price $54.99 - Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stock$55.99 - Fluke TLK-225 SureGrip Master Accessory SetSureGrip Master Accessory Set
Order #: TLK225
Mfg #: 2097031
Availability:In stockSpecial Price $192.96 Regular Price $229.99 - Fluke TL80A Basic Electronic Test Lead KitBasic Electronic Test Lead Kit
Order #: TL80
Mfg #: 1277086
Availability:In stockSpecial Price $97.10 Regular Price $116.99 - Fluke AC285 SureGrip Alligator ClipsSureGrip Alligator Clips
Order #: AC285
Mfg #: 1610159
Availability: Ships in 4-6 weeksSpecial Price $37.34 Regular Price $44.99 - Fluke 80PK-9 Type K Lance Tip Probe, T/C Assembly, Molded Plug, 1mType K Lance Tip Probe, T/C Assembly,Moldd.Plug,1m,Bulk
Order #: 80PK-9
Mfg #: 1288229
Availability:In stockSpecial Price $87.14 Regular Price $104.99 - Fluke AC87 Heavy Duty Bus Bar Clip SetHeavy Duty Bus Bar Clip Set
Order #: AC87
Mfg #: 1278079
Availability: Ships in 1-2 weeksSpecial Price $52.28 Regular Price $62.99
Specifications | ||
Maximum voltage between any terminal and earth ground | 600 V | |
Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
Display | Digital: 6,000 counts, updates 4 per second | |
Bar graph | 33 segments, updates 32 per second | |
Operating temperature | -10°C to + 50°C | |
Storage temperature | -40°C to + 60°C | |
Battery type | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 | |
Battery life | 400 hours typical, without backlight | |
Accuracy Specifications | ||
DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
DC volts | Range/resolution | 6.000 V / 0.001 V |
60.00 V / 0.01 V | ||
600.00 V / 0.1 V | ||
Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
2.0% + 3 (500 Hz to 1 kHz) | ||
AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 V |
60.00 V / 0.01 V | ||
600.0 V / 0.1 V | ||
Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) | |
2.0% + 3 (500 Hz to 1 kHz) | ||
Continuity | Range/resolution | 600 Ω / 1 Ω |
Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of | |
500 μs or longer. | ||
Ohms | Range/resolution | 600.0 Ω / 0.1 Ω |
6.000 kΩ / 0.001 kΩ | ||
60.00 kΩ / 0.01 kΩ | ||
600.0 kΩ / 0.1 kΩ | ||
6.000 MΩ / 0.001 MΩ | ||
Accuracy | 0.9% + 1 | |
Range/resolution | 40.00 MΩ / 0.01 MΩ | |
Accuracy | 5% + 2 | |
Diode test | Range/resolution | 2.00 V / 0.001 V |
Accuracy | 0.9% + 2 | |
Capacitance | Range/resolution | 1000 nF / 1 nF |
10.00 μF / 0.01 μF | ||
100.0 μF / 0.1 μF | ||
9999 μF / 1 μF | ||
100 μF to 1000 μF | ||
Accuracy | 1.9% + 2 | |
Range/resolution | > 1000 μF | |
Accuracy | 5% + 20% | |
Lo-Z capacitance | Range | 1 nF to 500 μF |
Accuracy | 10% + 2 typical | |
AC amps True RMS | Range/resolution | 6.000 A / 0.001 A |
(45 Hz to 500Hz) | 10.00 A / 0.01 A | |
Accuracy | 1.5% + 3 | |
20 A overload for 30-seconds max | ||
DC amps | Range/resolution | 6.000 A / 0.001 A |
10.00 A / 0.01 A | ||
Accuracy | 1.0% + 3 | |
20 A overload for 30-seconds max | ||
Hz (V or A input)2 | Range/resolution | 99.99 Hz / 0.01 Hz |
999.9 Hz / 0.01 Hz | ||
9.999 kHz / 0.001 kHz | ||
50 kHz / 0.01 kHz | ||
Accuracy | 0.1% + 2 | |
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. | ||
2. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage. | ||
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. | ||
2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. | ||
2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
Mechanical & General Specifications | ||
Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
Weight | 550 g | |
Warranty | 3 years |
