Fluke 1503 Insulation Resistance Tester
Insulation Resistance Tester

Order #: 45515EL

Mfg #: 5065990

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $610.78 Regular Price $727.99

Fluke 1503 Insulation Resistance Tester

Insulation Resistance Tester

Order #: 45515EL

Mfg #: 5065990

Special Price $610.78 Regular Price $727.99
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

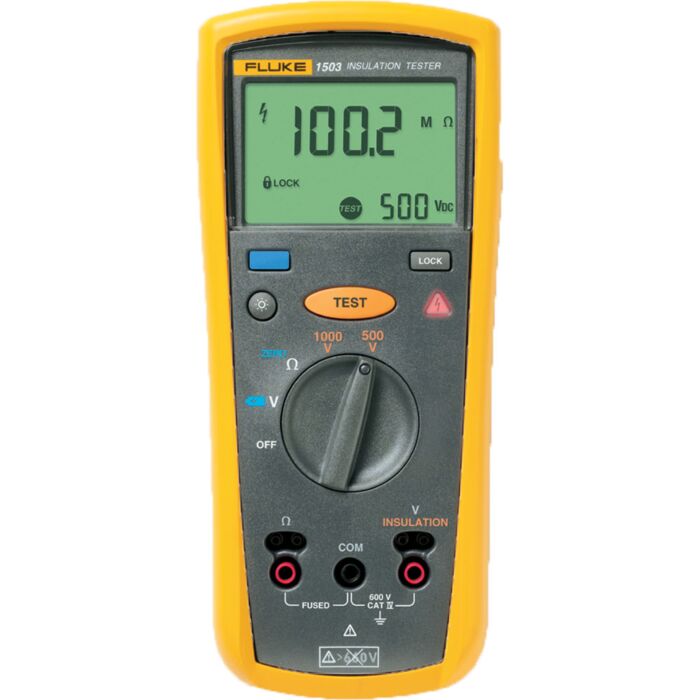

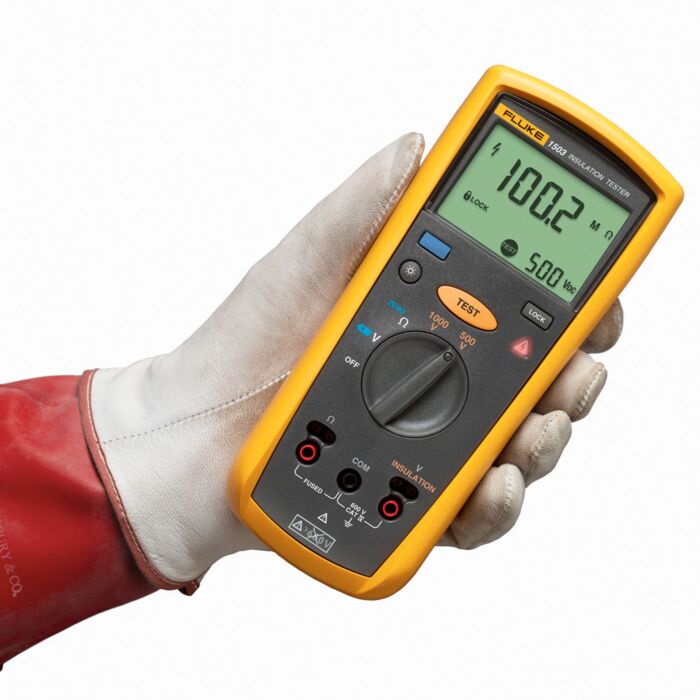

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.

Additional features, like the remote probe on this tool save both time and money when performing tests.

Product Highlights

  • Fluke Model# 1503
  • Insulation test range:
  • 1503: 0.1 W to 2000 W
  • Insulation test voltages: 1503:500 V, 1000 V
  • Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio
  • Repetitive or hard-to-reach testing is easy with the remote test probe
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection

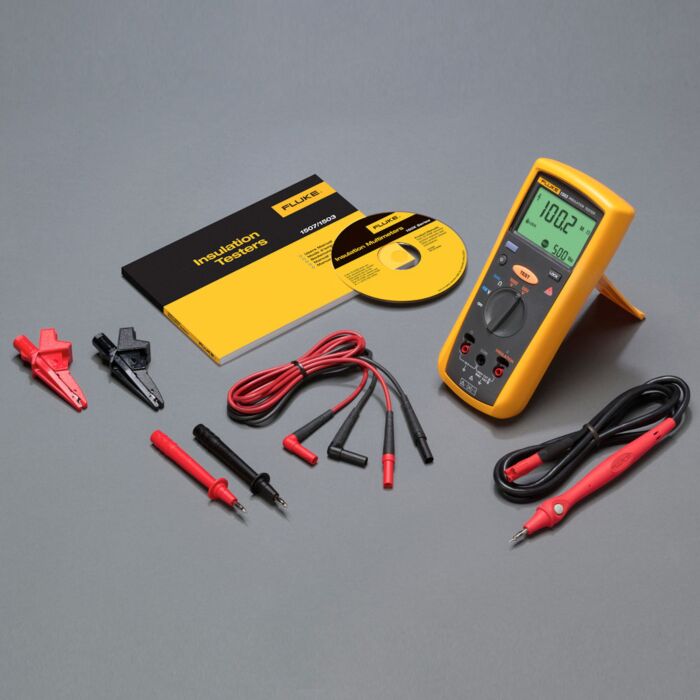

  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One year warranty

Each Unit Includes

  • TL224 Test Leads
  • TP74 Test Probes
  • Clips PN 1958654 (red) and PN 1958646 (black)
  • Holster
  • Remote probe
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke C115 Soft Carry Case with Shoulder Strap
    Fluke C115 Soft Carry Case with Shoulder Strap
    Soft Carry Case w/Shoulder Strap

    Order #: C115

    Mfg #: 2826063

    Availability:
    In stock
    Special Price $45.64 Regular Price $54.99
  2. Fluke TLK289
    Fluke TLK289 Industrial Master Test Lead Set
    Industrial Master Test Lead Set

    Order #: TLK289

    Mfg #: 3045646

    Availability:
    In stock
    Special Price $199.19 Regular Price $239.99
  3. Fluke 9040
    Fluke 9040 Phase Rotation Indicator
    Phase Rotation Indicator

    Order #: FLUKE-9040

    Mfg #: 2435050

    Availability:
    In stock
    Special Price $356.89 Regular Price $429.99
  4. Fluke TL26A 60" 5-Way Test Lead Set
    Fluke TL26A 60" 5-Way Test Lead Set
    60" 5-Way Test Lead Set

    Order #: TL26

    Mfg #: 1273172

    Availability: Ships in 3-4 weeks
    Special Price $75.52 Regular Price $90.99
  5. Fluke C101 Universal Hard Carrying Case
    Fluke C101 Universal Hard Carrying Case
    Universal Hard Carrying Case

    Order #: 65117MM

    Mfg #: 2437514

    Availability:
    In stock
    Special Price $91.29 Regular Price $109.99
  6. Fluke Toolpak Meter Hanging Kit
    Fluke Toolpak Meter Hanging Kit
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    In stock
    Special Price $46.13 Regular Price $54.99
  7. Fluke TL40 Retractable Tip Test Lead Set
    Fluke TL40 Retractable Tip Test Lead Set
    Retractable Tip Test Lead Set

    Order #: TL40

    Mfg #: 1590606

    Availability:
    In stock
    Special Price $57.26 Regular Price $68.99

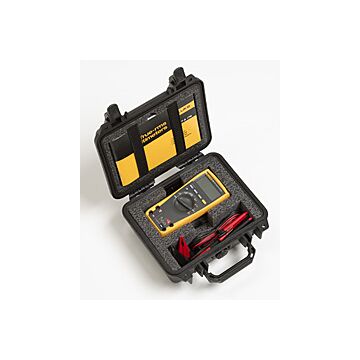

  8. Fluke CXT170 Rugged Pelican Hard Case
    Fluke CXT170 Rugged Pelican Hard Case
    Rugged Pelican Hard Case

    Order #: CXT170

    Mfg #: 3352567

    Availability:
    In stock
    Special Price $219.94 Regular Price $264.99
  9. Fluke TL71 Premium Test Lead Set
    Fluke TL71 Premium Test Lead Set
    Premium Test Lead Set

    Order #: TL71

    Mfg #: 1274382

    Availability:
    In stock
    Special Price $36.51 Regular Price $43.99
  10. Fluke C25
    Fluke C25 Soft Carrying Case for Fluke Meters
    Soft Carrying Case for Fluke Meters

    Order #: C25

    Mfg #: 681114

    Availability:
    In stock
    Special Price $45.64 Regular Price $54.99
  11. Fluke TL175 TwistGuard Test Leads
    Fluke TL175 TwistGuard Test Leads
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability:
    In stock
    Special Price $38.17 Regular Price $45.99
  12. Fluke TL75
    Fluke TL75 Hard Point Test Lead Set
    Hard Point Test Lead Set

    Order #: TL75

    Mfg #: 855705

    Availability:
    In stock
    Special Price $30.70 Regular Price $36.99
AC/DC Voltage Measurement
Accuracy Range 600.0 V
Resolution 0.1 V
50 Hz to 400 Hz ±(% of Rdg + Digits) ±(2% + 3)
Input impedance 3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced) > 60 dB at DC, 50 or 60 Hz
Overload protection 600 V rms or DC
Earth Bond Resistance Measurement
Range/Resolution 20.00 Ω 0.01 Ω
200.0 Ω 0.1 Ω
2000 Ω 1.0 Ω
20.00 kΩ 0.01 kΩ
Accuracy ±(1.5% + 3)
Overload protection 2 V rms or DC
Open circuit test voltage > 4.0 V, < 8 V
Short circuit current > 200.0 mA
Insulation Specifications
Measurement range 0.01 MΩ to 2000 MΩ
Test voltage 500 V, 1000 V
Test voltage accuracy + 20%, - 0%
Short circuit current 1 mA nominal
Auto discharge Discharge time < 0.5 second for C = 1 µF or less
Live circuit indicator Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load Operable with up to 1 µF load
Measure accuracy
500 V ±(1.5% + 5)
1000 V ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
General Specifications
Maximum voltage applied to any terminal: 600 V AC rms or DC
Storage temperature -40°C to 60°C (-40°F to 140°F)
Operating temperature -20°C to 55°C (-4°F to 131°F)
Temperature coefficient 0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)
Relative humidity
0% to 95% @ 10°C to 30°C (50°F to 86°F)
0% to 75% @ 30°C to 40°C (86°F to 104°F)
0% to 40% @ 40°C to 55°C (104°F to 131°F)
Vibration Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibility In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
Safety Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
Certifications CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
Batteries Four AA batteries (NEDA 15A or IEC LR6)
Battery llife Insulation test use: Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Resistance measurements: Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.
Size (H x W x L) 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight 550 g (1.2 lb)
IP rating IP40
Altitude Operating 2000 m CAT IV 600 V, 3000 m CAT III 600 V
Non-operating (storage) 12,000 m
Over-range capability 110% of range
Included accessories TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe
All products in this series

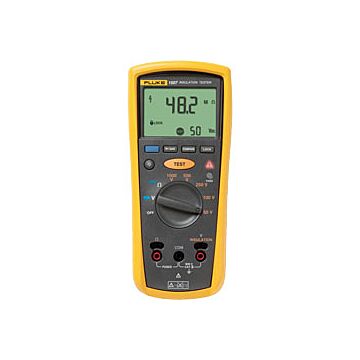

  1. Fluke 1507
