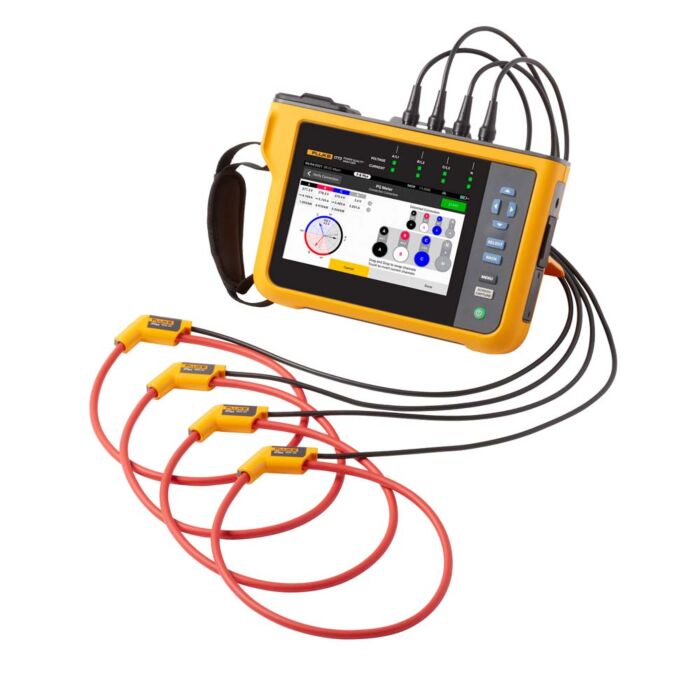

Fluke 1773 Power Quality Analyzer
Order #: 1773
Mfg #: 5117269
Product Highlights
The Fluke 1773 is a dual-purpose power quality troubleshooter and logger. It measures the fundamental power quality variables required to measurement the overall power quality health of your electrical system. The user interface is optimized to make the process of data capture as simple and reliable as possible with the inclusion of instrument powering from the measurement circuit, automatic connection check and correction.
Key Attributes
- Current measurement using flexible current probes and iron cored current transfomers
- Power: Includes associate variables and assocciated variable including apparent power, kvar, energy reactive energy, power factor, cos Φ, etc. all according to IEEE1459
- Wide range of power quality variables.
- Includes dips and swells, unbalance, harmonics to 50 harmoncs, 2-9kHz and up to 30kHz, flicker and inrush
- Automated logging of variables.
- Over 500 of the most frequently used variables with automated setup or this can be expanded with additional values. Values are logged with 1s to 30 minute average times. Dips, swells and transients occur in much shorter times and are recorded at much higher speed indendently of the logging average.
Key Uses of the Product
- Measure power quality according to the most stringent IEC61000-4-30 Class A requirement.
- Capture dips, swells and interruptions.
- Perform harmonic studies to discover the effects of disturbing loads on your network
- Discover the sources of nergy loses and waste in your facility.
HIGHER HARMONICS: The need to measure harmonics above the 50th has become increasingly importnant as more disturbing harmonic loads are added to the newwork such as inverters supplying power and motor drives consuming power. The 1770 series measure harmonics up to 30kHz
AUTOMATICALLY MEASURE POWER AND POWER QUALITY PARAMETERS
Critical power quality data is captured as soon as you begin a session, without extensive setup or selections
INTUITIVE USER INTERFACE
The streamlined user interface makes it easy to navigate between measurement parameters like V/A/Hz, power, dips and swells, harmonics, or power quality health at the push of a button
HIGH-SPEED VOLTAGE TRANSIENT CAPTURE
Capture damaging high-speed transients so you can mitigate their effects before equipment fails
ANALYSIS AND REPORTING
Comes standard with Fluke Energy Analyze Plus software giving you the ability to create customized reports, or leverage built-in one-click reporting to industry standards like EN 50160, IEEE 519 and GOST 33073
Automatic measurements. More flexibility. Better power quality troubleshooting.
Fluke 1770 Series Three-Phase Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord. With the 1770 Series you'll never miss a critical power quality event-from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system.
Automatic measurement capture
Whether you're performing a quick system check or a detailed power quality study, consistent data is key. The Fluke 1770 Series offers a unique automatic measurement capture system that helps ensure you're collecting the right data every time, while still giving you the flexibility to select and adjust specific parameters as needed. More than 500 power quality parameters are captured by default and the guided setup makes it easy to select the right parameters for the system you're working on. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software so you never need to wait to finish a session before reviewing results or analyzing data.
Ultimate measurement confidence
The Fluke 1770 Series are 2-in-1 devices that combine the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer-in a single, easy-to-use, handheld device. The 'PQ Meter' function gives you immediate access to live onscreen data in the field so you can quickly identify potential problems while troubleshooting. The detailed 'PQ Logging and Analysis' function eliminates the complexity of performing power quality studies by guiding you through the setup process ensuring you're capturing the right data every time. Couple these measurement modes with a unique measurement connection autocorrect function and you can be confident that you never need to worry about going back for a second measurement-even if you were unsure about what to look for when you started.
- NEW Firmware update Timezone database updated to reflect recent important changes.
- Automatically measure power and power quality parameters
- At-a-glance power quality health for faster troubleshooting
- Easily view V/A/Hz, power, dips, swells, and harmonics data
- Capture high-speed transients up to 8 kV
- Power directly from measurement circuit without a line cord
Each Unit Includes
- FLUKE-1773 Power Quality Analyzer
- I17XX-FLEX1500 24 iFLEX 1500A 24 IN (2.0M) current probes (set of four)
- FLUKE-17XX flat cable voltage test lead 3-phase+N
- AC285 black alligator clips (set of four)
- AC285 green alligator clip
- Black 1M USB-C cable
- Line cords (US, EU, UK, AUS, BRA)
- FLK-17XX 0.18M test lead set
- Green test lead
- Cable marker set (for voltage and current)
- FLUKE-174X-MA-C8 wall outlet adapter
- Fluke 5263915 Antenna Cable, 5M, 50Ohms, 6GhzAntenna Cable,5M, 50Ohms, 6Ghz
Order #: 5263915
Mfg #: 5263915
Availability: Ships in 4-6 weeksSpecial Price $504.63 Regular Price $607.99 - Fluke 177X Li-Ion Battery, 3.56V, 4000Mah177X Li-Ion Battery, Bp177X 3.56V, 4000Mah
Order #: 177X-LI-ION-BATTERY
Mfg #: 5272862
Availability: Ships in 4-6 weeksSpecial Price $118.68 Regular Price $142.99 - Fluke 17XX Cable Marker Set17Xx Cable Marker Set, 05Mm, (Color)
Order #: 17XX-CABLE-MARKER-SET
Mfg #: 5312406
Availability: Ships in 4-6 weeksSpecial Price $131.96 Regular Price $158.99 - Fluke 5171005 17XX Iflexi 1500A, 24", Current Probe17XX Iflexi 1500A 24 in Current Probe
Order #: 5171005
Mfg #: 5171005
Availability: Ships in 4-6 weeksSpecial Price $241.52 Regular Price $290.99
General Specifications | Key features |
---|---|
1770 Series Three-Phase Power Quality Analyzers | |
Warranty | Analyzer: 2 years (battery not included) |
Accessories: 1 year (including battery) | |
Calibration cycle | 2 years |
Size (L X W X HD) | 28.0 cm x 19.0 cm x 6.2 cm (11.0 in x 7.5 in x 2.4 in) |
Weight | 2.1 kg (4.6 lb) |
Anti-theft protection | Slot to support Kensington lock |
Environmental specifications | |
Operating temperature range | -10 °C to 50 °C |
Storage temperature range | -20 °C to 60 °C |
Operating humidity | IEC 60721-3-3: 3K5, modified: |
-10 °C to 30 °C: ≤95 %, no condensation or ice | |
35 °C: 70 % | |
40 °C: 55 % | |
50 °C: 35 % | |
IP Rating | IEC 60529: IP50 |
Vibration | IEC 60721-3-3 / 3M2 |
Power supply | |
Voltage range | 100 V - 600 V -15 % / +10 % (85 V ... 660 V) |
Power consumption | Max. 40 VA |
Mains frequency | 50/60 Hz (42.5 Hz ... 69 Hz) |
UPS | Li-Ion battery BP1770 with extended temperature range, customer replaceable |
On-battery runtime: 1.5 hours | |
Safety | |
General | IEC 61010-1: Pollution Degree 2 |
Power supply | Overvoltage Category IV 600 V |
With Mains Adapter MA-C8: Overvoltage Category II 300 V | |
Measurement | IEC 61010-2-030: CAT IV 600 V, CAT III 1000 V |
Altitudes 2000 m to 4000 m | Derate to: |
Power Supply: Category IV 300 V | |
With MA-C8 Adapter: Category II 150 V | |
Measurement: CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
