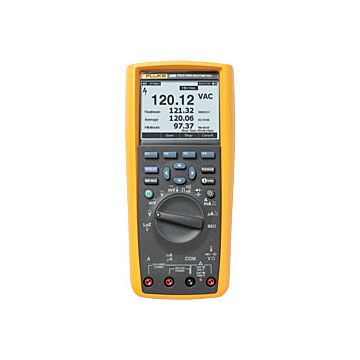

Fluke 289 for Rent True-RMS Logging Multimeter

Product Highlights

• 0.025% Basic DC accuracy
• Logging function with TrendView plots measurements as single line to help detect anomalies
• F1 - F4 Soft keys provide flexible user function menus
• Navigation keys allow the user to quickly select menu choices and scroll through the information screens
• LoZ: low input impedance function helps prevents false readings due to "ghost voltage"
• 50 Ohm Range for motor winding and low ohm measurements
• Low Pass Filter, allows for accurate measurements on motor drives
Saved measurements allows the user to name and recall measurements made in the field
• Field upgradeable and expandable meter as new capabilities added
• Record events and trends helpful for troubleshooting intermittent problems or profiling loads
• i-info button on board help screens for measurement functions. Unsure about a function- Go to that function and Press the "i" button
Multi lingual interface
• Internal memory allows stand-alone logging for up to 180 hours
• Preferred measurement setups can be easily saved
• True-rms ac voltage and current for accurate measurements on complex signals or non linear loads
• AC bandwidth specified to 100 kHz.
• Current measurement 20A (30 seconds momentary; 10A continuous)
• Peak capture to record transients as fast as 250µs
• Continuity/Conductance/Capacitance
• Resistance and continuity
• Min/Max/Average with Time Stamp to record signal fluctuations
• Compatible with optional magnetic hanger (ToolPak) for hands free operation
• Optical USB communication interfac
• CAT III 1000 V / CAT IV 600 V safety rated
• Limited lifetime warranty

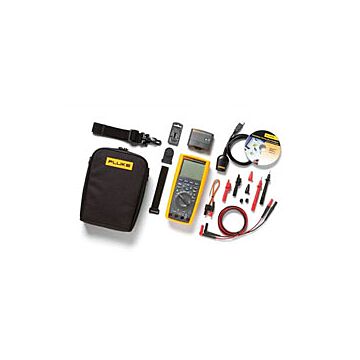

Each Unit Includes

• 6 AA Batteries, installed
• TL71 Silicone test leads
• AC72 Alligator clips
