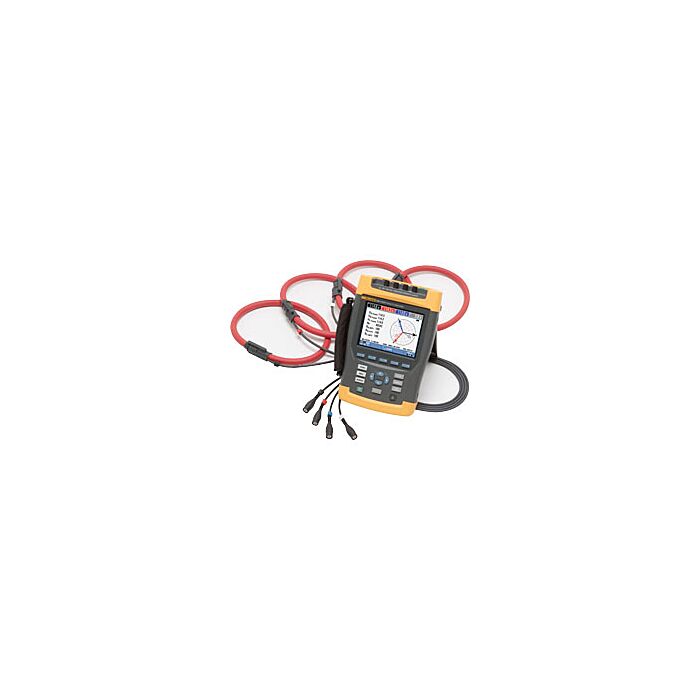

Fluke 435-II for Rent, 6000A 3-Phase Power Analyzer

Product Highlights

• Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
• Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
• PowerWave data capture: 435 and 437 Series II analyzers capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
• Waveform capture: 435 and 437 Series II models capture 100/120 cycles (50/60Hz) of each event that is detected in all modes, without set-up
• Automatic Transient Mode: 435 analyzers capture 200 kHz waveform data on all phases simultaneously up to 6 kV
• Fully Class-A compliant: 435 Series II analyzers conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
• Mains signaling: analyzers measure interference from ripple control signals at specific frequencies
• 400 Hz measurement: 437 Series II analyzer captures power quality measurements for avionic and military power systems
• Troubleshoot real-time: Analyze the trends using the cursors and zoom tools
• Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
• Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places
• Automatic Trending: Every measurement is always automatically recorded, without any set-up
• System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
• Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
• View graphs and generate reports: With included analysis software

Each Unit Includes

• BC430 Power Adapter
• International plug adapter set
• BP290 (Single capacity Li-ion battery) 28Wh (7 hours or more)
• Leads TL430 Test lead and Alligator clip set
• Color coding WC100 color coding clips and regional decals
• Flexible current probes i430flex-TF, 24 inch (61cm) length
• 8 GB SD card (32GB optionally)
• PowerLog on CD (includes operator manuals in PDF format)
• USB cable A-Bmini
• Carrying case C1740 Soft Case
