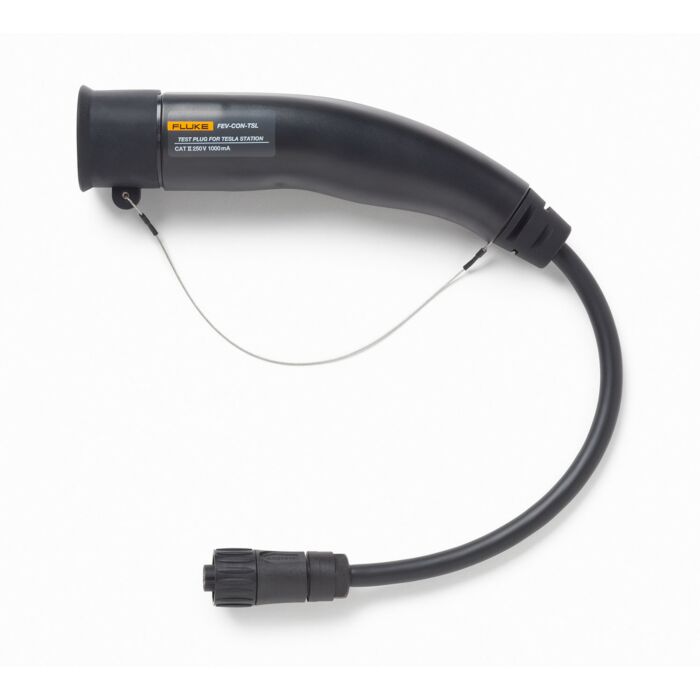

Fluke FEV-CON-TSL Tesla Type Plug For Test Adapter EV Charging, US

Product Highlights

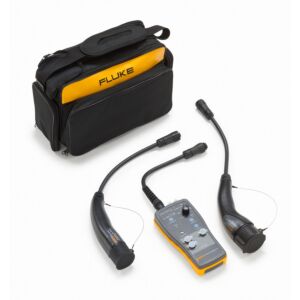

Fluke FLK-FEV-CON-TSL is a Tesla type connector for Level 1 and Level 2 AC charging stations. This accesory pairs with the FEV100, the first Fluke product for the electric vehicle charging segment. The FEV100 is designed to test function and safety of electric vehicles charging stations.

• Fluke FLK-FEV-CON-TSL is a Tesla type charging connector. It can be ordered as an accessory to the FEV100 as an add to test AC charging stations.

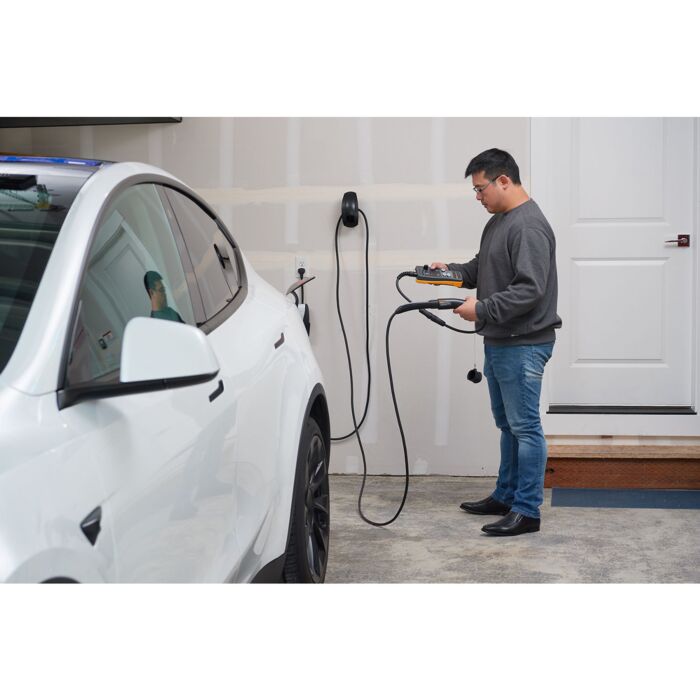

• The Fluke Tesla type connector fits with the FEV100 adaptor, that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
• Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.
• Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using a digital multimeter.

Key Attributes

• CP State Simulation: A: ± 12V 1kHz; B: 2.74kϛ +9 V / -12V 1kHz; C: 882ϛ +6 V / -12V 1kHz; D: 246ϛ +3V / -12V 1kHz
• Output voltage : Max. 250 V / 60 Hz, CAT II 300 V

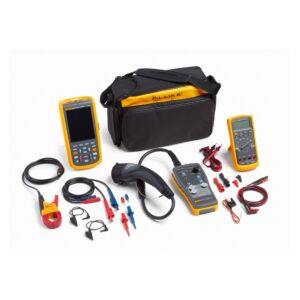

• Compatibility with other test and measurement tools : Digital multimeter, oscilloscope
• Safety Testing : Protective grounding test (PE), GFCI test

Key Uses of this Product

• Connector for FEV100 that simulates electric vehicle and vehicle faults
• Amphenol connector for easy connection to FEV100
• Simulates Electric Vehicle
• Connection point to Tesla Type Connectors on EV Charging station
