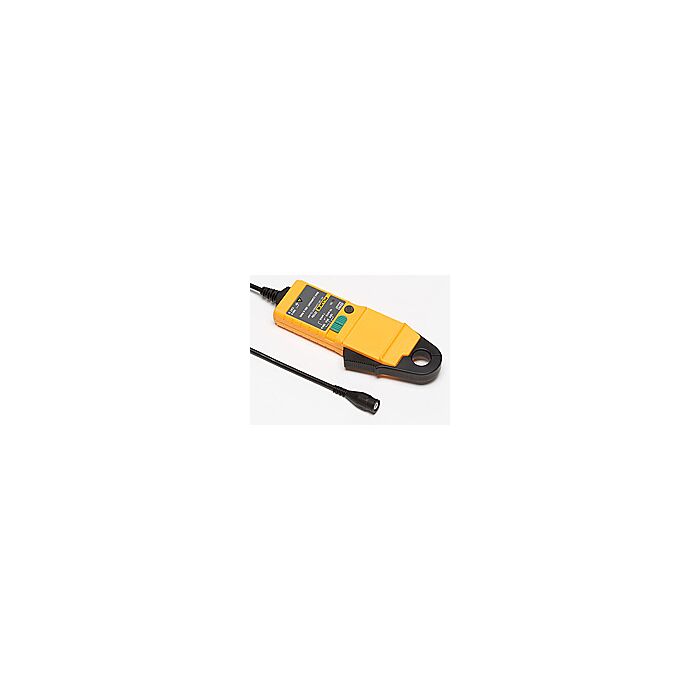

Fluke I310S AC/DC Current Clamp

Product Highlights

• The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current
• The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement
• Current Ranges: 30 A and 300 A ACRMS or ±45 A and 450 A DC
• Measuring Ranges: ±45 A and 450 A
• Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
• Resolution: ±50 mA (40 A) to ±100 mA (400 A)
• Load Impedance: > 10 k Ohms and <= 100 pF
• Frequency Range (small signal): DC to 20 kHz (- 3 dB)
• Phase Shift below 1 kHz, < 2 degrees
• Temperature Coefficient: ±0.1% of reading / ±C
• Power Supply: 9 V Alkaline
