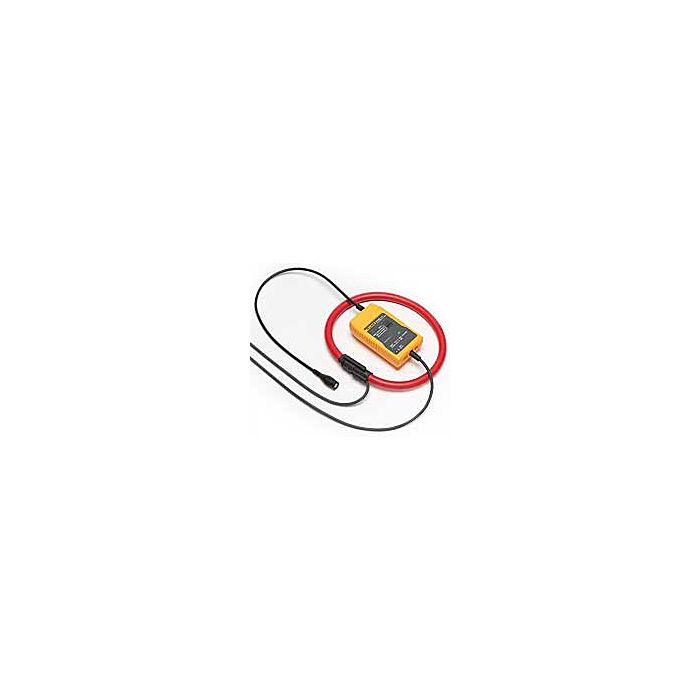

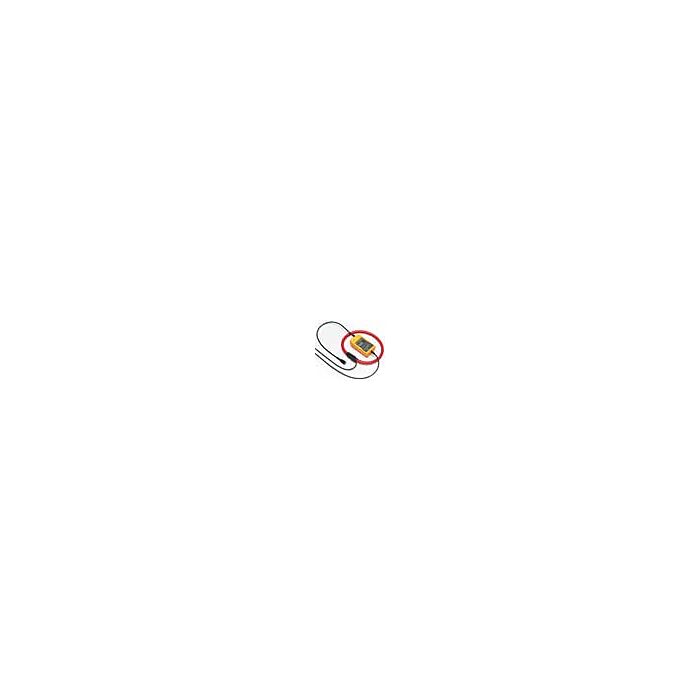

Fluke I6000S FLEX-36 AC Current Probe, 36", 6000A

Product Highlights

• Current Ranges 60 A / 600 A / 6000 A ACRMS
• Output Sensitivity (AC coupled) 50 mV /5mV / 0.5mV per A
• Load Impedance 100 kOhm minimum
• Accuracy (at +25°C) ±1% of range (45 – 65 Hz)
• Linearity (10% to 100% of range) ±0.2% of reading
• Noise 8mV ACRMS (60 A) 2 mV ACRMS (600/6000A)
• Frequency Range 10 Hz to 50 kHz (- 3 dB)
• Phase Error < ±1º (45 – 65Hz), ±10º (at 20 kHz)
• Position Sensitivity (with cable > 25mm from the coupling) ±2% of range
• External field (with cable > 200mm from the head) ±1% of range
• Power Supply 2 x AA MN 1500 LR6 alkaline 400 Hours, low battery indicator or dedicated ext power supply
• Temperature Coefficient ±0.08% of reading per C
• Working Voltage (see Safety Standards section) 600 V ACRMS or DC
• Head Cable length (double insulated) 610mm (24”) I6000s Flex-24, 915mm (36”) I6000s Flex-36
• Head Cable Diameter 14.3 mm
• Head Bend Radius 38.1 mm
• Cable length (head to electronics) 2 meters
• Output Connection 0.5 m cable terminated with safety BNC connector
• Operating Temperature Range -20 to +90 °C (head) -20 to +85 °C (electronics)
• Storage Temperature Range -40 to +105 °C (head) -20 to +85 °C (electronics)
• Operating Humidity 15% to 85% (non condensing)
• Weight 180 g (head), 190 g (electronics)

Each Unit Includes

• 4mm safety plug adaptor
