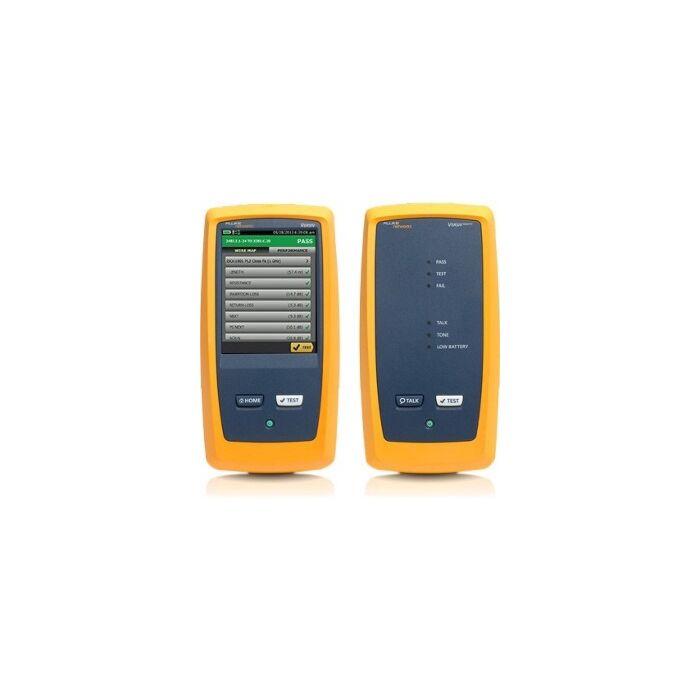

Fluke Networks DSX-5000 MOD 1GHz DSX Replacement Module for DSX-5000
1GHz DSX Replacement Module for DSX-5000

Order #: DSX-5000 MOD

Mfg #: 4329735

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,372.99

Fluke Networks DSX-5000 MOD 1GHz DSX Replacement Module for DSX-5000

1GHz DSX Replacement Module for DSX-5000

Order #: DSX-5000 MOD

Mfg #: 4329735

$5,372.99
The Fluke Networks DSX-5000 MOD is the DSX-5000 Module Add-on Kit. This item should be ordered when you already own a Versiv Mainframe, but need DSX-5000 CableAnalyzer Modules for Copper Certification. The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our DSX-5000 product page to view all of your ordering options.
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States only.
This product is available for shipping to the United States only.
This product is available for shipping to the United States only.

Product Highlights

This is a 1 GHZ DSX Replacement Module.

Fluke DSX CableAnalyzer Features

  • Built-in Versiv technology allows operators to quickly and accurately test cables while reducing the need for multiple testing systems
  • LinkWare™ management software provides detailed, easily understood test result analysis with professional-grade report development
  • ETL Verified to IEC Level V and recommended by leading cabling vendors
  • Onboard Dedicated Diagnostics functionality included with all DSX tools, which helps reduce the time needed to fix faulty cables
  • Well-lit, easy-to-use Taptive™ interface designed for technicians of all skill levels
  • ProjX system designed to keep tasks in order from start to finish and help remove repetitive steps that could slow the testing process
  • Tough, durable construction that can handle harsh environments
  • Highly valuable multi-tool system capable of handling copper certification processes, fiber loss, and Wi-Fi system troubleshooting for multiple industries
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke Networks VERSIV-STND
    Fluke Networks VERSIV-STND Versiv Demo Stand
    Versiv Demo Stand

    Order #: VERSIV-STND

    Mfg #: 4345983

    Availability: Ships in 3-4 weeks
    Special Price $87.39 Regular Price $94.99
  2. Fluke Networks VERSIV-CASE3
    Fluke Networks VERSIV-CASE3 Versiv Hardsided Case
    Versiv Hardsided Case

    Order #: VERSIV-CASE3

    Mfg #: 4330606

    Availability: Ships in 3-4 weeks
    $1,310.99
  3. Fluke Networks VERSIV-SM-CASE
    Fluke Networks VERSIV-SM-CASE Versiv Small Carry Case
    Versiv Small Carry Case

    Order #: VERSIV-SM-CASE

    Mfg #: 4497182

    Availability: Ships in 2-3 weeks
    Special Price $125.11 Regular Price $135.99
  4. Fluke Networks DSX-PLA011S
    Fluke Networks DSX-PLA011S DSX Tera Cat 7A/Class Fa Pla Set
    DSX Tera Cat 7A/Class Fa Pla Set

    Order #: DSX-PLA011S

    Mfg #: 4329799

    Availability: Ships in 3-4 weeks
    $1,696.99
  5. Fluke Networks DSX-PC6S
    Fluke Networks DSX-PC6S DSX Cat 6 Adapters with Shielded Cat 6 Patch Cord Jacks
    DSX Cat 6 Adapters w/Shielded Cat 6 Patch Cord Jacks

    Order #: DSX-PC6S

    Mfg #: 4417737

    Availability: Ships in 3-4 weeks
    $1,654.99
  6. Fluke Networks DSX-PLA004S
    Fluke Networks DSX-PLA004S CAT 6A/CLASS EA Permanent Link Adapter Set
    CAT 6A/CLASS EA Permanent Link Adapter Set

    Order #: DSX-PLA004S

    Mfg #: 4329786

    Availability: Ships in 2-3 weeks
    $1,370.99
  7. Fluke Networks VERSIV-BACKPK-STRP
    Fluke Networks VERSIV-BACKPK-STRP Backpack Strap for Versiv Large Case
    Backpack Strap for Versiv Large Case

    Order #: VERSIV-BACKPK-STRP

    Mfg #: 4542655

    Availability: Ships in 3-4 weeks
    Special Price $80.03 Regular Price $86.99
  8. Fluke Networks VERSIV-TSET
    Fluke Networks VERSIV-TSET Versiv Headphones
    Versiv Headphones

    Order #: VERSIV-TSET

    Mfg #: 4329892

    Availability: Ships in 3-4 weeks
    Special Price $68.07 Regular Price $73.99
  9. Fluke Networks VERSIV-BATTERY
    Fluke Networks Versiv Battery
    Versiv Battery

    Order #: VERSIV-BATTERY

    Mfg #: 4345952

    Availability: Ships in 3-4 weeks
    Special Price $471.03 Regular Price $511.99
  10. Fluke Networks DSX-COAX
    Fluke Networks DSX-COAX DSX Series Coaxial Adapter Set
    DSX Series Coaxial Adapter Set

    Order #: DSX-COAX

    Mfg #: 4556247

    Availability: Ships in 3-4 weeks
    $945.99
  11. Fluke Networks NFA-STYLUS Stylus For Tfs Touchscreen
    Fluke Networks NFA-STYLUS Stylus For Tfs Touchscreen
    Stylus For Tfs Touchscreen

    Order #: NFA-STYLUS

    Mfg #: 4284646

    Availability: Ships in 3-4 weeks
    Special Price $41.39 Regular Price $44.99
  12. Fluke Networks DSX-CHA004S
    Fluke Networks DSX-CHA004S CAT 6A/ Class EA Channel Adapter Set
    CAT 6A/ Class EA Channel Adapter Set

    Order #: DSX-CHA004S

    Mfg #: 4329814

    Availability: Ships in 3-4 weeks
    $626.99
  13. Fluke Networks DSX-CHA021S
    Fluke Networks DSX-CHA021S DSX M12 4-Position Channel Adapter Set
    DSX M12 4-Position Channel Adapter Set

    Order #: DSX-CHA021S

    Mfg #: 4502786

    Availability: Ships in 3-4 weeks
    $912.99
  14. Fluke Networks DSX-PC5ES
    Fluke Networks DSX-PC5ES Set of DSX Cat 5E Adapters with Shield Cat 5E Patch Cord Jacks
    Set of DSX Cat 5E Adapters w/ Shield Cat 5E Patch Cord Jacks

    Order #: DSX-PC5ES

    Mfg #: 4417728

    Availability: Ships in 3-4 weeks
    $1,654.99
  15. Fluke Networks DSX-REFMOD
    Fluke Networks DSX-REFMOD Set of 2 Reference Modules for the DSX-5000 Cable Analyzer
    Set of 2 Reference Modules for the DSX-5000 Cable Analyzer

    Order #: DSX-REFMOD

    Mfg #: 4329877

    Availability: Ships in 3-4 weeks
    $682.99
  16. Fluke Networks DSX-TERA-KIT
    Fluke Networks DSX-TERA-KIT TERA CAT 7A/CLASS FA Adapter and Charger Kit
    TERA CAT 7A/CLASS FA Adapter and Charger Kit

    Order #: DSX-TERA-KIT

    Mfg #: 4360290

    Availability: Ships in 3-4 weeks
    $1,820.99
  17. Fluke Networks DSX-CHA003
    Fluke Networks DSX-CHA003 Single DSX Series Coaxial Adapter
    Single DSX Series Coaxial Adapter

    Order #: DSX-CHA003

    Mfg #: 4556258

    Availability: Ships in 3-4 weeks
    $605.99
  18. Fluke Networks DSX-CHA011S
    Fluke Networks DSX-CHA011S TERA Cat 7A/CLASS FA Channel Adapter Set
    TERA Cat 7A/CLASS FA Channel Adapter Set

    Order #: DSX-CHA011S

    Mfg #: 4329823

    Availability: Ships in 3-4 weeks
    $702.99
  19. Fluke Networks DSX-PC6AS Set Of DSX Cat 6A Adapters
    Fluke Networks DSX-PC6AS Set of DSX Cat 6A Adapters with Shield Cat 6A Patch Cord Jacks
    Set of DSX Cat 6A Adapters w/ Shield Cat 6A Patch Cord Jacks

    Order #: DSX-PC6AS

    Mfg #: 4417743

    Availability: Ships in 3-4 weeks
    $1,654.99
  20. Fluke Networks TFS-USB-CBL
    Fluke Networks TFS-USB-CBL USB Interface Cable Standard A to Micro B
    USB Interface Cable Standard A to Micro B

    Order #: TFS-USB-CBL

    Mfg #: 4114833

    Availability: Ships in 3-4 weeks
    Special Price $38.63 Regular Price $41.99
  21. Fluke Networks VERSIV-STRP
    Fluke Networks VERSIV-STRP Versiv Strap Kit
    Versiv Strap Kit

    Order #: VERSIV-STRP

    Mfg #: 4345976

    Availability: Ships in 3-4 weeks
    Special Price $75.43 Regular Price $81.99
  22. Fluke Networks DSX-LABA/RJ DSX RJ Test Adaper
    Fluke Networks DSX-LABA/RJ DSX RJ Test Adaper
    DSX RJ Test Adaper

    Order #: DSX-LABA/RJ

    Mfg #: 4329889

    Availability: Ships in 3-4 weeks
    $1,368.99
Cable Types
Shielded and unshielded pair LAN cabling TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA, F, and FA: 100 Ω and 120 Ω
Standard Link Interface Adapters
Permanent link adapters Plug type: shielded RJ45
Optional Plug type: Tera
Channel Adapters Jack type: shielded RJ45
Optional Jack type: Tera
Test Standards
TIA Category 3, 4, 5, 5e, 6, 6A per TIA 568-C.2
ISO/IEC Class C and D, E, Ea, F, FA certification per ISO/IEC 11801:2002 and amendments
Maximum frequency 1200 MHz
General Specifications
Speed of Autotest Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Support test parameters (The selected test standard determines the test parameters and the frequency range of the tests) Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-tocrosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display 5.7 in LCD display with a projected capacitance touchscreen
Case High impact plastic with show absorbing overmold
Dimensions Main Versiv unit with DSX-5000 module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight Main Versiv unit with DSX-5000 module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote Lithium ion battery pack, 7.2 V
Typical battery life 8 hours
Charge time* Tester off: 4 hours to charge from 10 % capacity to 90 % capacity
Languages supported English, French, German, Spanish, Portuguese, Italian, Japanese and Simplified Chinese
Calibration Service center calibration period is 1 year
