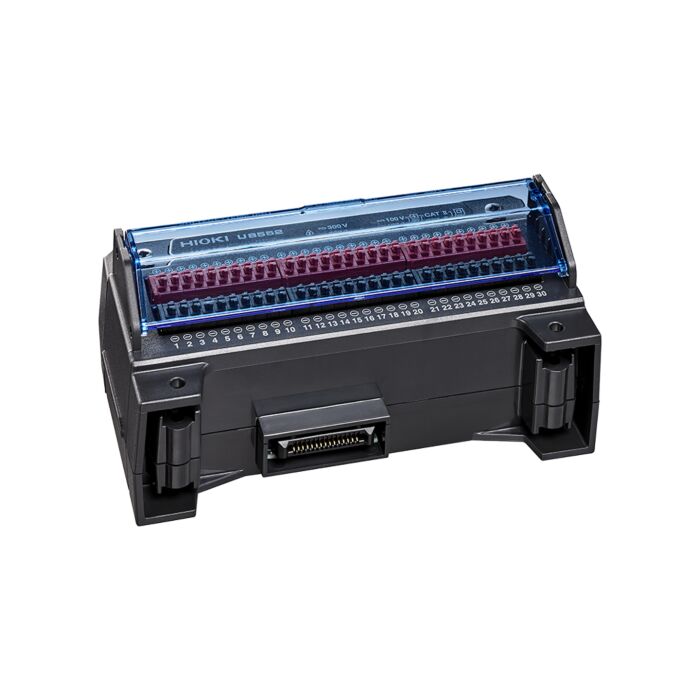

Hioki U8552 Voltage Temperature Unit (30-Channels)

Voltage Temperature Unit (30-Channels)

Order #: U8552

Mfg #: U8552

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Availability:

This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.

Choose Your Options:

Add Calibration

Product Overview

Product Highlights

VOLTAGE/TEMP UNIT U8552

30-channels voltage, temperature, and humidity measurement

30-channels, voltage, temperature (thermocouples), and humidity measurement
Sampling rate of up to 20 ms with 30 channels (10 ms sampling is possible when the number of channels used is 15 or less)
For DC voltage measurement and temperature measurement using thermocouples

Used With

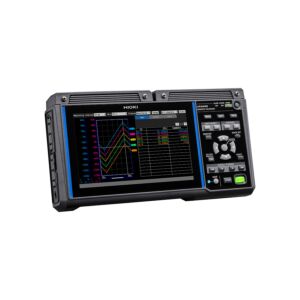

Hioki LR8450 Memory HiLogger, PMI
Memory HiLogger,PMI

Order #: LR8450

Mfg #: LR8450

Availability: Ships in 3-4 weeks

$2,310.00

Qty

Specifications

Connectable instruments	Memory HiLogger LR8450 (Designed for use with plug-in units only) Memory HiLogger LR8450-01 (Wireless LAN model)
Operating temperature and humidity	-10°C to 50°C, 80% RH or less (no condensation)
Storage temperature and humidity	-20°C to 60°C, 80% RH or less (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
Included accessories	Instruction manual x 1, mounting screw x 2
Number of input channels	30 ch (Able to set voltage, temperature using the thermocouple, and humidity for each channel)
Input terminals	Push-button type terminal block (2 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple, and humidity
Input type	Scanning by semiconductor relays All channels isolated (Not isolated when measuring humidity)
