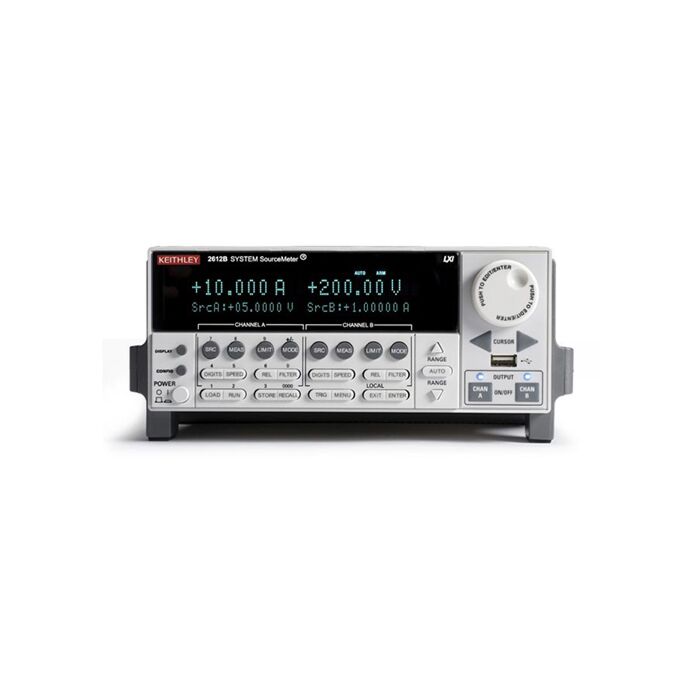

Keithley 2612B for Rent, Dual-Channel SMU SourceMeter, 10 A, 200 V, 200 W

Keithley 2612B Highlights

The Model 2612B SourceMeter® SMU instrument, part of the Series 2600B SourceMeter SMU Instruments family, is a new and improved two-channel SMU instrument with a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test. In addition to retaining all the features of the Model 2612A, the Model 2612B has 6&189;-digit resolution, USB 2.0 connectivity, and software command emulation of the Model 2400 SourceMeter SMU Instrument to enable easy migration of legacy test code. The Model 2612B is equipped with Keithley's high speed TSP® technology (over 190% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test. The TSP-Link® interface enables multi-channel parallel test and expands the test system without the cost of a mainframe. The wide range of 1.5A DC, 10A pulse, 200V output makes the Model 2612B suitable for testing a wide range of higher voltage and higher current devices materials, components, and sub-assemblies.

• Tightly integrated, 4-quadrant voltage/current source and measure instrument offers best-in-class performance with 6 1/2-digit resolution
• Dual-channel
• 200V, 10A, 200W, 100fA
• Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world
• Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device
• TSP (Test Script Processing) technology embeds complete test programs for best-in-class system-level throughput
• TSP-Link expansion technology for multi-channel parallel test without mainframe
• Software emulation for Keithley's Model 2400 SourceMeter SMU Instrument
• USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces
• Free software drivers and development/debug tools
