Keithley 8010 for Rent, High Power Device Test Fixture

Product Highlights

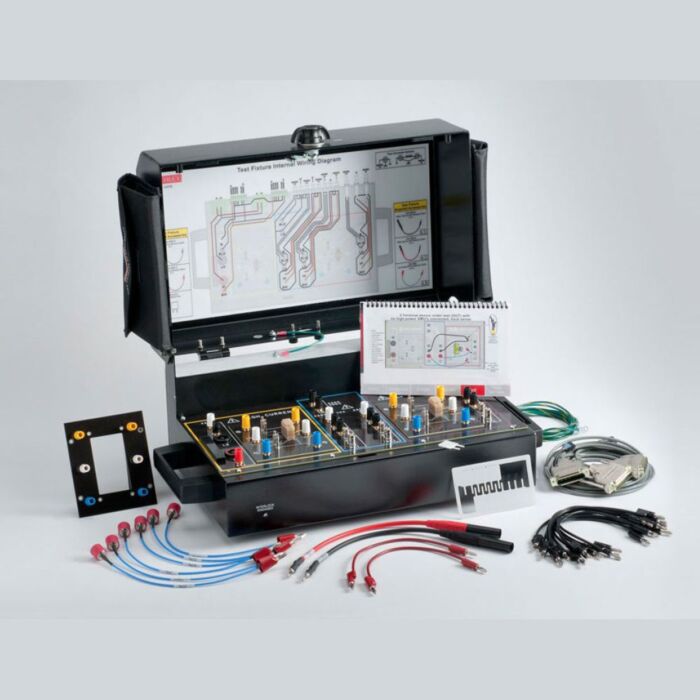

The Keithley 8010 High Power Device Test Fixture provides safe and easy connections for testing packaged high power devices at up to 3000V or 100A. The Keithley 8010 provides connections for a high voltage SourceMeter SMU instrument Keithley 2657A, one or two high current SourceMeter SMU instruments Keithley 2651A, and three low power SourceMeter SMU instruments Series 2600B or Keithley 4200-SCS SMU instruments. This allows devices with two terminals diodes or three terminals transistors or even four or five terminals to be characterized safely and accurately. The Keithley 8010 has full interlock capability for up to six SourceMeter SMU instruments. The Keithley 8010 has integrated protection circuits that protect the low voltage SourceMeter SMU instruments from high voltages the Keithley 2657A can output should a device fault occur. The Keithley 8010 includes both a high current 100A and a high voltage 3000V test socket. Various replacement test socket modules are available, including TO-247, TO-220, axial lead, and a blank socket module that allows building a custom socket. In addition to standard banana jumpers, the Keithley 8010 has rear-panel scope and thermal probe ports to simplify system integration.
