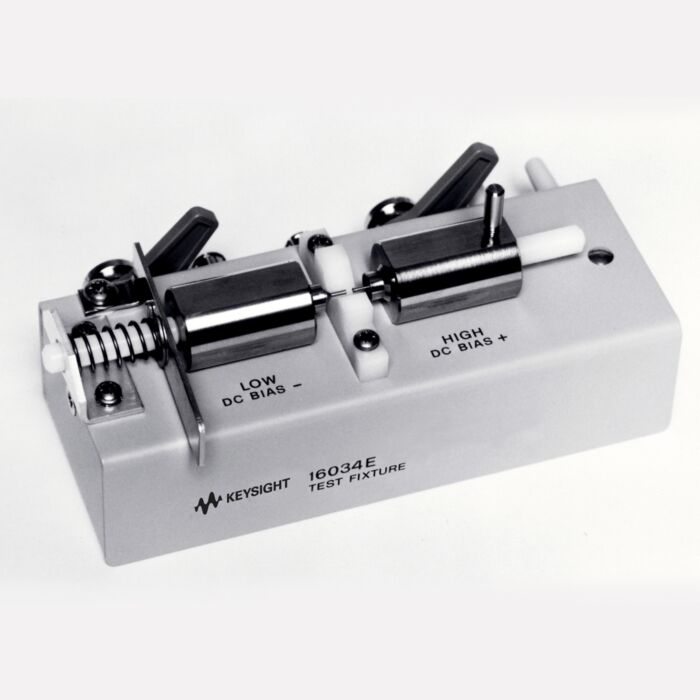

Keysight 16034E SMD Test Fixture

Product Highlights

• Measurement Instruments: 4192A, 4194A(Impedance Mode), 4263B, 4278A, 4279A, 4284A, 4285A, 4294A, and E4980A
• Frequency: DC to 40MHz
• DC Bias: +/- 40V peak max (AC+DC)
• Operating Temperature: 0 to 55 degrees C
• Terminal Connection: BNC, 4 terminal-pair
• Dimensions (approx.): 128(W) x 60(H) x 71(D)mm
• SMD Test Fixture Selection Table

The 16034E test fixture is designed for impedance evaluations of SMD components. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L)mm x 0.8(W)mm.
