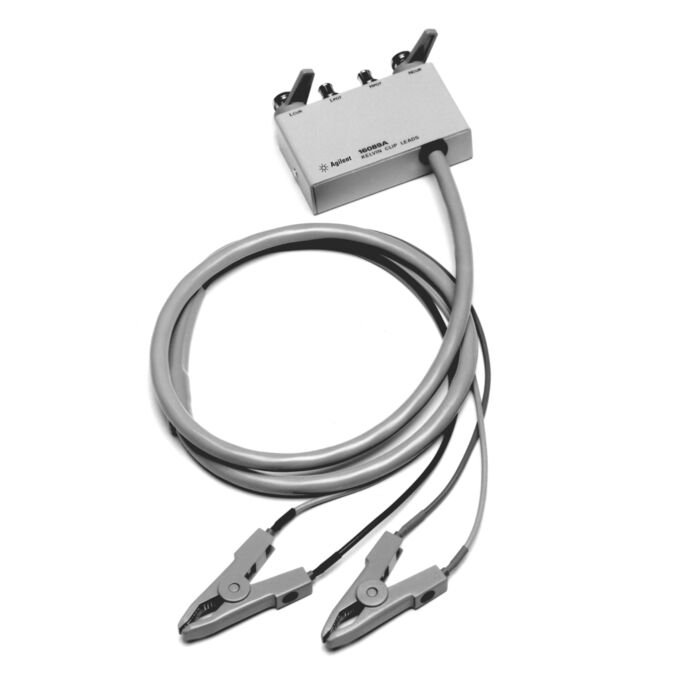

Keysight 16089A Large Kelvin Clip Leads

Product Highlights

• Measurement Instrument: 4192A, 4194A (Impedance Mode), 4263B, 4278A, 4284A, 4285A, and E4980A
• Frequency: 5Hz to 100kHz
• DC Bias: -42V to +42V
• Operating Temperature: 0 to 55°C
• Terminal Diameter: 15mm or less
• Cable Length: Approx.0.94m (from connector to clip tip)
• Terminal Connection: BNC, 4 terminal-pair

The 16089A makes it possible to measure odd-shaped components that cannot be measured with conventional fixtures. It is equipped with two insulated Kelvin clips.
