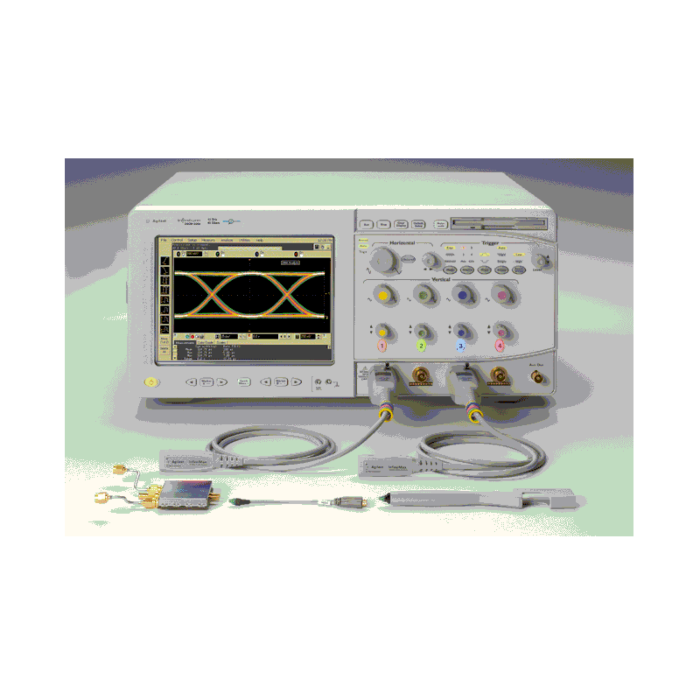

Used Keysight / Agilent DSO81304A Infiniium High Performance Oscilloscope, 13GHz
Order #: DSO81304A-USED
Mfg #: DSO81304A
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
![Loading...](https://www.transcat.com/static/version1721668873/frontend/Transcat/default/en_US/images/loader-1.gif)
Product Highlights
Agilent DSO81304A Oscilloscope: Ultra-high performance oscilloscopes are required to meet the performance needs of engineers designing state of the art high-speed serial communication links and other ultra-high-speed electronic systems. Modern industry bus standards such as Fibre Channel, Fully Buffered DIMM, Serial ATA, Serial Attached SCSI, and PCI-Express have performance points in the 4 to 8.5 Gb/s range. Proprietary high-speed serial buses can also have clock rates in the 4 to 8.5 Gb/s range as well as edge speeds with rise times faster than 50 ps. Ultra-high performance oscilloscopes are required to capture the frequency harmonics of such high-speed signals and make accurate and repeatable measurements on them. Agilent's award-winning InfiniiMax probing system set the standard for probing systems and the rest of the oscilloscope industry is now following this trend-setting architecture. Agilent's InfiniiMax II probing system takes this innovation to an unmatched level of performance and usability.
Other features and specifications of the Agilent DSO81304A Oscilloscope include:
- Frequency range/ bandwidth: 13GHz
- Max. Vertical sensitivity: 1V/div
- Min. Vertical sensitivity: 1mV/div
- Number of channels: 4CH
- Record length: 1Mpts - 128Mpts
- Sample rate: 20GSa/s per channel - 40GSa/s on two chan
- Type (D/A): Digital
- InfiniiMax II 1169A probing system with 12 GHz specified (13 GHz typical) bandwidth
- Trigger jitter less than 500 fs RMS
- Electronic attenuators eliminate the reliability and ESD discharge concerns associated with mechanical attenuator relays
- Lowest vertical noise floor and lowest jitter measurement floor in the industry
- Unrivaled InfiniiMax probing accessories support browsing, solder-in, socket use, and SMA use models
-
-
