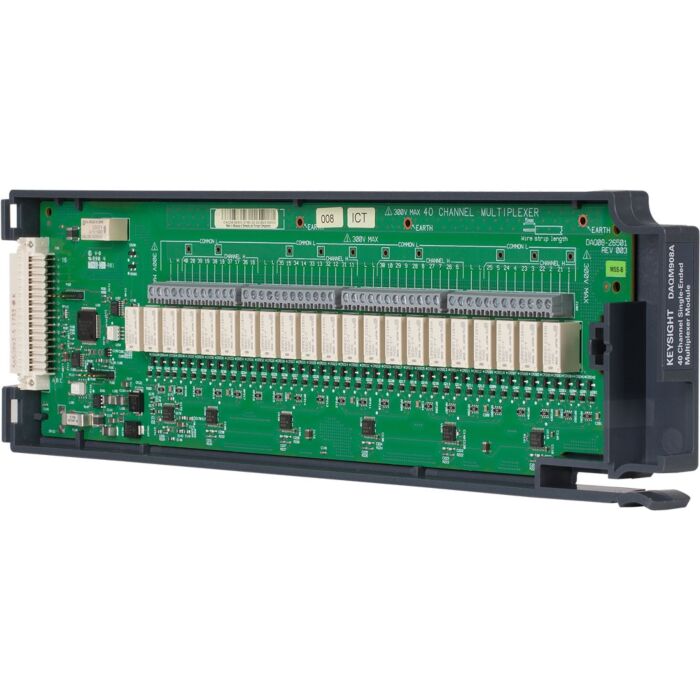

Keysight DAQM908A 40 Channel Single-Ended Multiplexer Module for DAQ970A
40 Channel Single-Ended Multiplexer Module for DAQ970A
Order #: DAQM908A
Mfg #: DAQM908A
$790.00
Keysight DAQM908A 40 Channel Single-Ended Multiplexer Module for DAQ970A
40 Channel Single-Ended Multiplexer Module for DAQ970A
Order #: DAQM908A
Mfg #: DAQM908A
Product Highlights
Use the Keysight DAQM908A module for the DAQ970A Data Acquisition System for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. Use only 2-wire RTD and Thermistor sensors for temperature measurements wit this module. The module low connection is isolated from earth and can float up to 300 V.
- 40 Channel Single-Ended Multiplexer
- Single-wire switching for common-low applications
- 100 channels/s scanning
- Built-in thermocouple reference junction
Each Unit Includes
- 1 DAQM908A, 40-Channel Single-Ended Multiplexer Module
- 1 Certificate of Calibration
