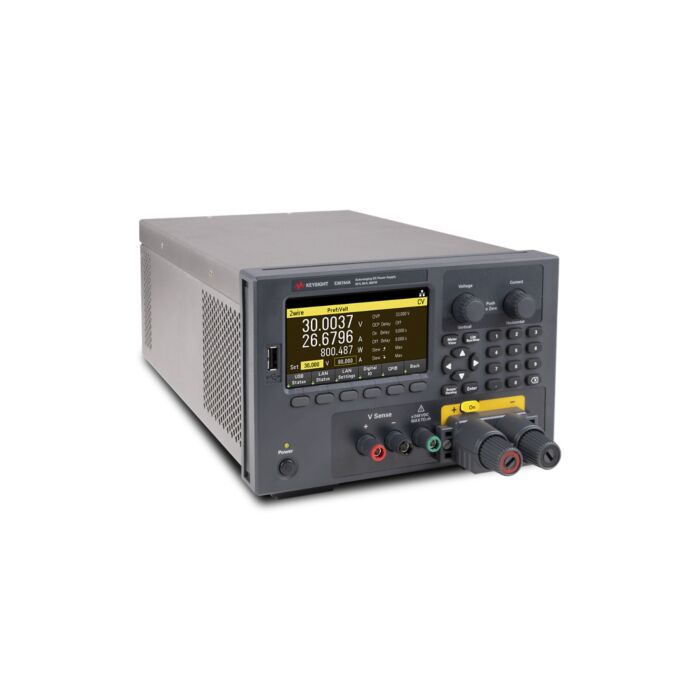

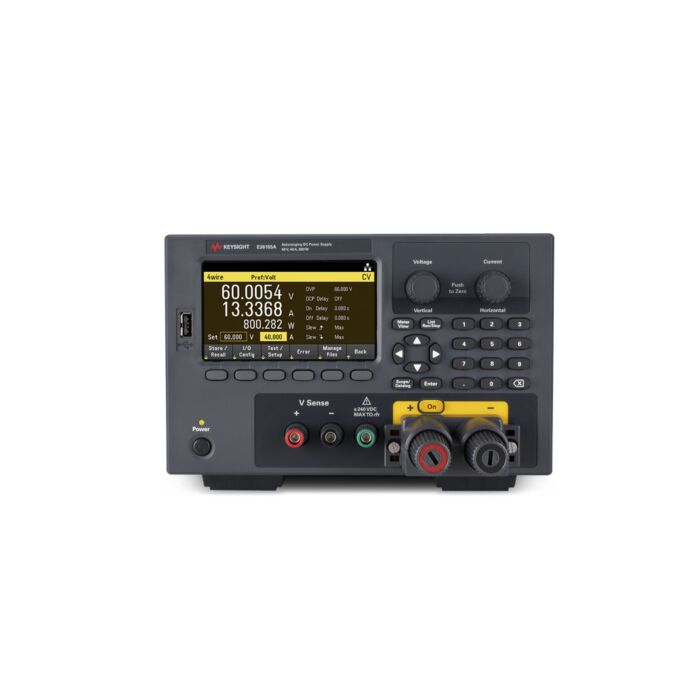

Keysight E36155A DC power supply, single-output, auto-range: 60V, 40A, 800W
DC power supply, single-output, auto-range: 60V, 40A, 800W

Order #: E36155A

Mfg #: E36155A

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,820.00

Keysight E36155A DC power supply, single-output, auto-range: 60V, 40A, 800W

DC power supply, single-output, auto-range: 60V, 40A, 800W

Order #: E36155A

Mfg #: E36155A

New
Loading...
Print Email Save Item Compare
$3,820.00
Register to view exclusive member pricing
Availability: Call for availability

 Ships Free Over $100

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

Features

  • Plenty of usable power
    • Autoranging
    • Peak power handling up to 3X max power rating
  • Safe, clean, and reliable power
    • Low output ripple and noise
    • Excellent line/load regulation
    • 2-wire or 4-wire remote sense
    • Detachable high current front binding post
    • Over-voltage, over-current, and over-temperature protection
  • Convenient benchtop capabilities and intuitive interfaces
    • Thermal-control fan speed for minimal acoustic noise
    • 4-wire front output terminal including sense and ground
    • 4.3-inch LCD color display
    • Individual knobs for voltage and current
    • LAN/LXI, USB and GPIB (upgrade option) interfaces
  • Advanced characterization
    • Built-in voltage and current measurements
    • Data logging
    • Output sequencing and syncing with digital I/O
    • LIST mode programming
    • Low range current measurement
    • Adjustable voltage slew rate
    • Scope View (upgrade option)
    • Arbitrary waveform generator (AWG) (upgrade option)
  • Application Software and Automation
    • BV0003B Pathwave BenchVue Power Supply App
    • BV9200B/BV9201B BenchVue Advanced Power Control and Analysis
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Accessories
  1. Keysight E36150ADVU ScopeView & Arbitrary Waveform Generation Capabilities
    Keysight E36150ADVU ScopeView & Arbitrary Waveform Generation Capabilities
    ScopeView & Arbitrary Waveform Generation Capabilities

    Order #: E36150ADVU

    Mfg #: E36150ADVU

    Availability: Ships in 2-3 weeks
    $525.00
  2. Keysight E363GPBU GPIB user installable interface module
    Keysight E363GPBU GPIB User Installable Interface Module
    GPIB User Installable Interface Module

    Order #: E363GPBU

    Mfg #: E363GPBU

    Availability: Ships in 4-6 weeks
    $389.00
Specifications
Model E36154A E36155A
Power Output 800W 800W
No. of Channel 1 1
DC Output Rating (0 to 40 °C) 0 to 30 V 0 to 60 V
0 to 80 A 0 to 40 A
Load Regulation ± (% of output + offset)
Voltage < 0.01% + 2 mV
Current < 0.1% + 2 mA
Line Regulation ± (% of output + offset)
Voltage < 0.01% + 2 mV
Current < 0.1% + 2 mA
Output Ripple and Noise (at approximately 23 °C)
Normal mode voltage, Vpp (20 Hz to 20 MHz) < 75 mV
Normal mode voltage, Vrms (20 Hz to 10 MHz) < 5 mV
Programming Accuracy ± (% of output + offset) at 23 °C ± 5 °C for 12 months
Voltage 0.03% + 6 mV 0.03% + 10 mV
Current 0.1% + 20 mA 0.1% + 10 mA
Readback Accuracy ± (% of output + offset) at 23 °C ± 5 °C for 12 months
Voltage 0.04% + 6 mV 0.04% + 10 mV
Current 0.1% + 20 mA 0.1% + 10 mA
Low Range Current 0.1% + 5 mA 0.1% + 4 mA
Load Transient Recovery Time
Voltage Settling Band 75 mV 150 mV
Time < 1 ms
Technical Resources
Keysight E36150 Series Datasheet
