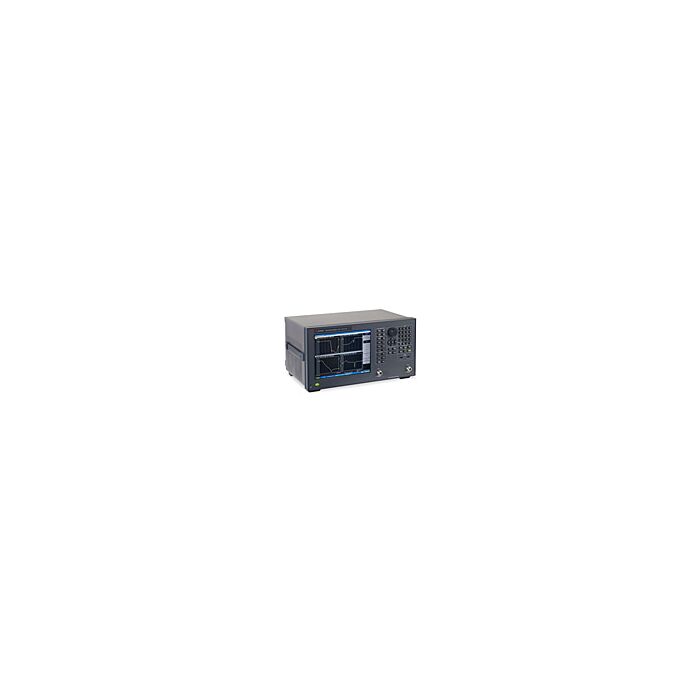

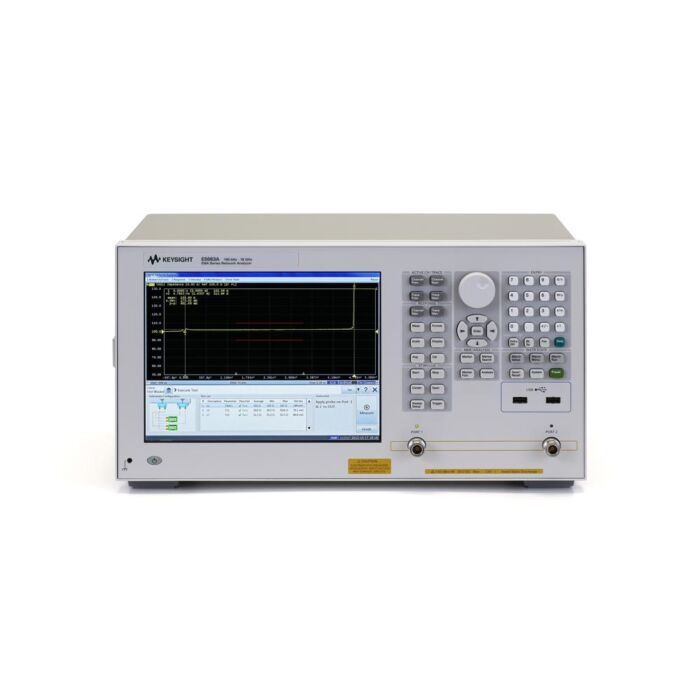

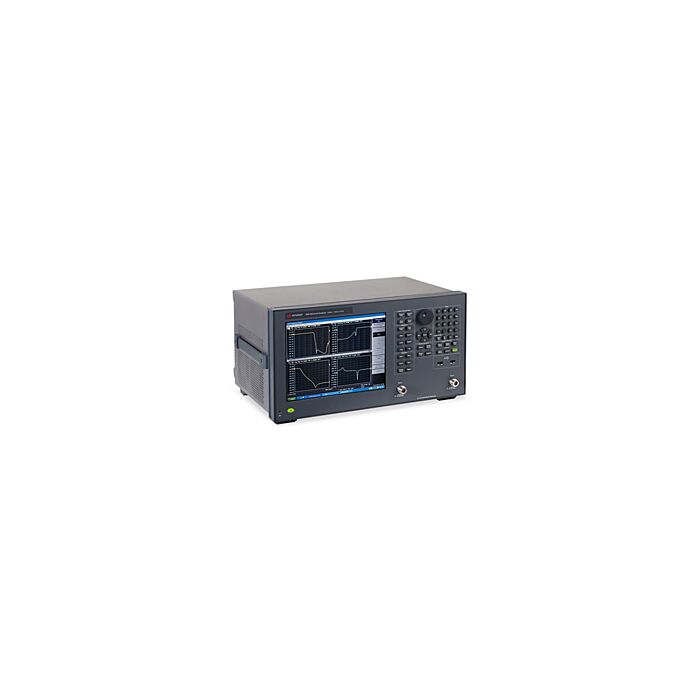

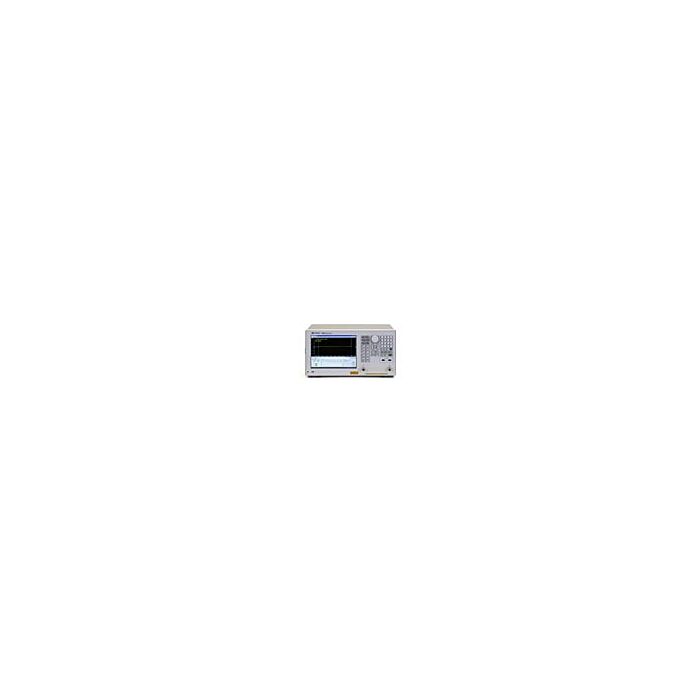

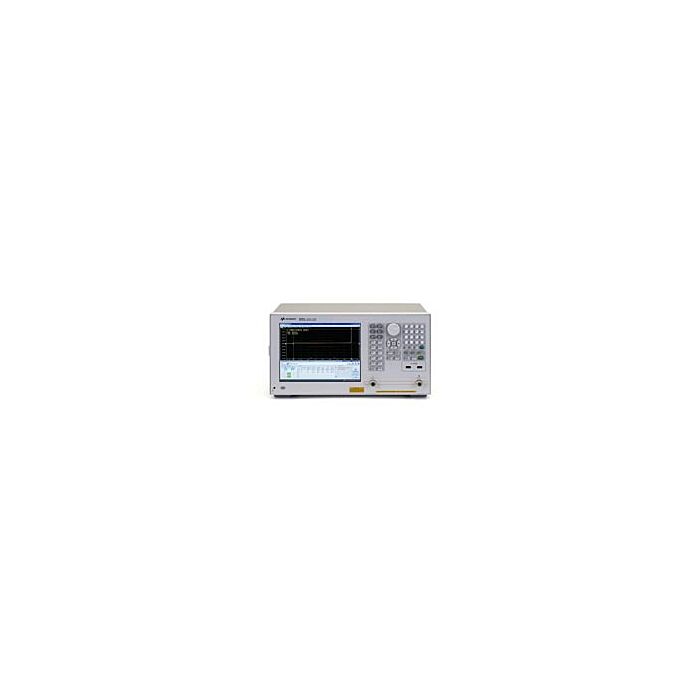

Keysight E5063A-2H5 ENA Series Network Analyzer 2-Port Test Set, 100kHz - 18GHz
ENA Series Network Analyzer 2-Port Test Set, 100kHz - 18GHz

Order #: E5063A-2H5

Mfg #: E5063A-2H5

Questions about availability or need help? Contact Us:

(800) 633-0561
$52,802.00

Keysight E5063A-2H5 ENA Series Network Analyzer 2-Port Test Set, 100kHz - 18GHz

ENA Series Network Analyzer 2-Port Test Set, 100kHz - 18GHz

Order #: E5063A-2H5

Mfg #: E5063A-2H5

$52,802.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

General-purpose RF network analyzers are essential for simple passive component measurements in education institutions and RF labs. The Keysight E5063A enables you to reduce your test equipment cost without sacrificing test quality

  • Frequency range: 100 kHz to 18 GHz
  • Low trace noise: 0.002 dBrms (Typical, at 8 MHz to 4.35 GHz, IFBW = 70 kHz, transmission measurement.)
  • Wide dynamic range: 122 dB (Typical, at 100 MHz to 4.35 GHz, IFBW = 10 Hz.)
  • High temperature stability: 0.01 dB/C (Typical, at 300 kHz to 6 GHz)
  • Test port - 2-port S-parameter, 50 ½, Type-N connectors
  • Sweep type - Linear and log frequency, Segment sweep
  • Calibration Capabilities: Short-Open-Load-Thru (SOLT), TRL, Unknown thru, Waveguide, ECal, Adapter removal/insertion
  • Analysis: Time domain / Test wizard, Wireless power transfer analysis (Optional), mixedmode S-parameters, test fixture de-embedding, pass/fail limit testing, Equation editor. Materials measurement (External software (N1500A) required.)
  • Upgradability: Frequency, software options
  • Connectivity: USB (6 ea), LAN, GPIB (Optional), 24-bit Handler I/O (Optional)
