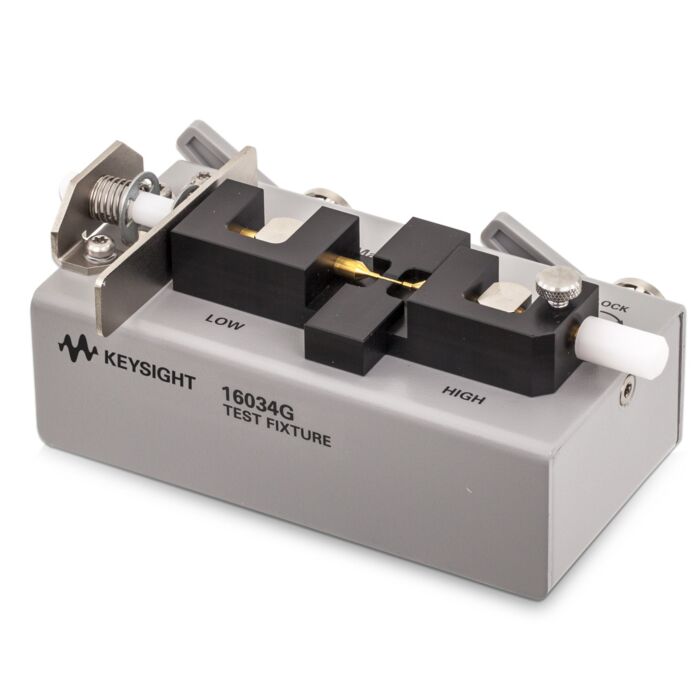

Keysight 16034G Test Fixture

Test Fixture

Order #: 16034G

Mfg #: 16034G

$3,173.00

Availability: Ships in 4-6 weeks

This product is available for shipping to the United States and Canada only.

DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)
Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
Frequency: DC to 40MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
DC Bias: -40V to +40V
Operating Temperature: 0 to 55degC
Terminal Connection: BNC, 4 terminal-pair
Dimensions(approx.): 120(W) x 50(H) x 70(D)mm
